We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

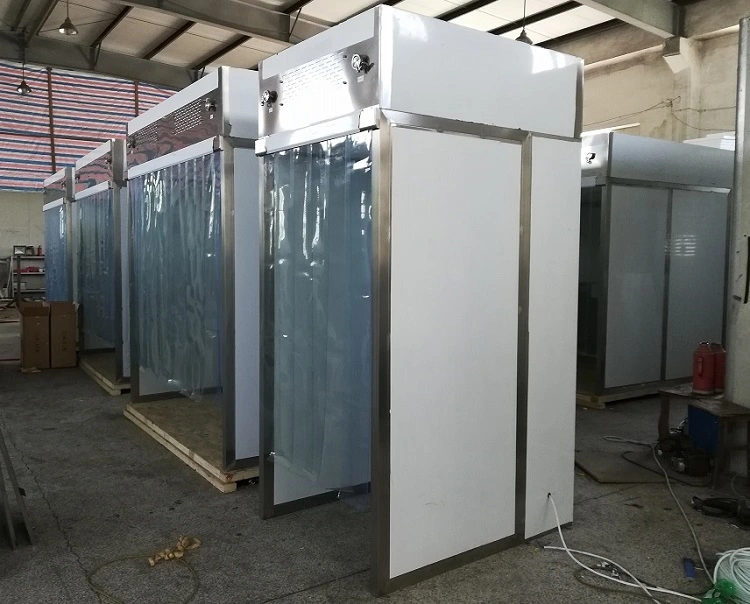

SUS316 Negative Pressure Dispensing Booth
SUS316 Negative Pressure Dispensing Booth
The SUS316 Negative Pressure Laminar Flow Dispensing Booth is one kind of professional working room which specially used in sampling,
weighting and analysis industry, it can control the working area powder to prohibit them off the working room,
and it is special equipment to control the powder floating, protect operators not breathe the operated powder.
Dispensing booth provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar
air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .
Products Parameter:
| SUS316 Negative Pressure Dispensing Booth | |
| Model | HA - DB1000 |
| External size (W*D*H)mm | 1100X1300X2650 |
| Internal size (W*D*H)mm | 1000X1000X2150 |
| Cleanliness | Class 100 |
| HEAP Filter | 99.995% @0.3um |
| Pre-Filter | 75% @5um |
| Air Velocity | 0.3-0.6m/s |
| Noise | 57-65 dB |
| Material | Stainlesst Steel 304 / 201 |
| Standard | ( FS209E ) USA |
| Power | 380V/ 50HZ |
Customer's Design Is Available.
Air flow testing for dispensing booth :
dispensing booth applicaiton :
Warranty:
Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
