We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

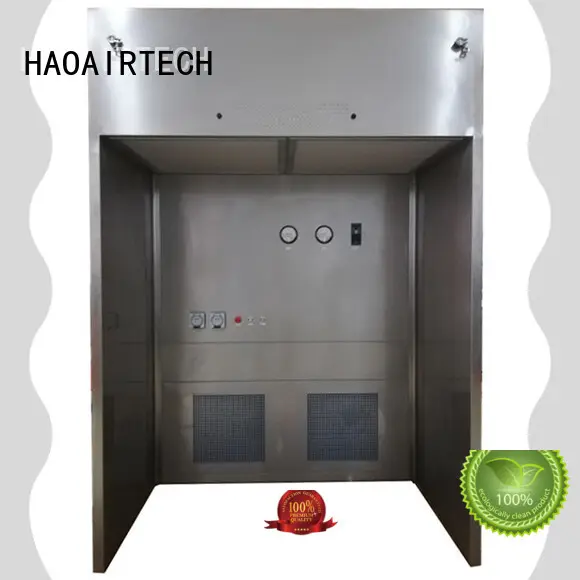

HAOAIRTECH plc controlled portable sampling booth good selling for biological pharmacy
- HaoAir has established a complete service network to provide professional, standardized, and diversified services. The quality pre-sales and after-sales services can meet well the needs of customers.
1. To Guangzhou HaoAir Purification Technology Co.,Ltd., adopting superior raw material for downflow booth is responsible for customers.
2. Quality and reliability are the basic characteristics of the product.
3. HAOAIRTECH takes the downflow booth manufacture business very seriously and the quality of our work is always guaranteed.
4. For the development of HAOAIRTECH, delicate downflow booth are only allowed in the company.
Introduction:
When you need to provide a clean, contained environment for the safe handling of pharmaceutical powders in dispensing,
weighing, sampling, or subdivision operations, the PharmAir booths are a highly effective option.
By our fully trained engineers to ensure the system fully conforms to your requirements.
To complete the package, our dedicated Aftersales department will supply total support.
Available in epoxy coated zintec steel, 201/304/316L stainless steel or a combination of both
Various heights and widths (up to 6m) are available
Custom filtration designs with a minimum of fine dust and then Hepa filters in either the technical stack or the ceiling plenum
Single pass/once through airflow systems used in applications where solvent vapors are present
Product Features：
Stainless steel or epoxy- coated mild steel construction
High efficiency EC fan system
Safe change the HEPA filter
Overhead lighting with supply plenum
Mobile work benches
Hazardous area electric option
Flush mounted computer integration
From/side access doors
PLC Controlled audible and visual alarm package
High level exhaust grilles
Material and personnel airlocks systems
Products Parameter：
MODEL | HA-DB1000 | HA-DB1500 | HA-DB2000 |
External size (mm) (W*D*H) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
Work zone (mm) (W*D*H) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
Purification rank | Class 100(ISO5) | ||
Air speed | 0.45m/s +_20% | ||
Material （Option） | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) | ||
Control system | 1: LCD touchable screen display with air speed adjustable and constant temperature and constant humidity data check. 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams.
| ||
Noise level(dB) | <65dB | ||
Filter step | 3 Step | ||
HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
Secondary filter | F8 pocket air filter | ||
Pre-filter Efficiency | G4 Z-Line panel air filter | ||
Power supply | 380V/50HZ OR 220V/50HZ | ||
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is among the top domestic and foreign producers in China.
2. By stressing the importance of technology innovation, HAOAIRTECH will be an unreplaceable enterprise in downflow booth industry.
3. Sustainability is core to our business. We are constantly evaluating and improving our processes with not only the services we offer our customers but our own business processes and initiatives. The superb quality and expert support of Guangzhou HaoAir Purification Technology Co.,Ltd. is bound to satisfy more and more customers. Inquiry! We believe in Quality Service and our approach has been designed to provide the same. We listen carefully to our clients and provide space, time and materials according to an agreement for the project. Inquiry!
Email: sales2@haoairtech.com
Add: RM323 KaiSheng Building,CongYun RoadYongping street ,Baiyun District, Guang Zhou, Guangdong, China
