HAOAIRTECH plc control pass box with arc design gmp standard for clean room purification workshop

Company Advantages
1. HAOAIRTECH static pass box specification has a professional design. It is designed by specialists who master the fundamentals of designing the most commonly used parts, elements, and units of various machines.
2. The features of higher quality, stable performance, and longer service life makes the product more competitive in the market.
3. It meets the client’s requirement in every term of quality and durability.
4. The product is used in many applications for its quick discharging ability. It is especially useful when there is in need of power source temporarily.

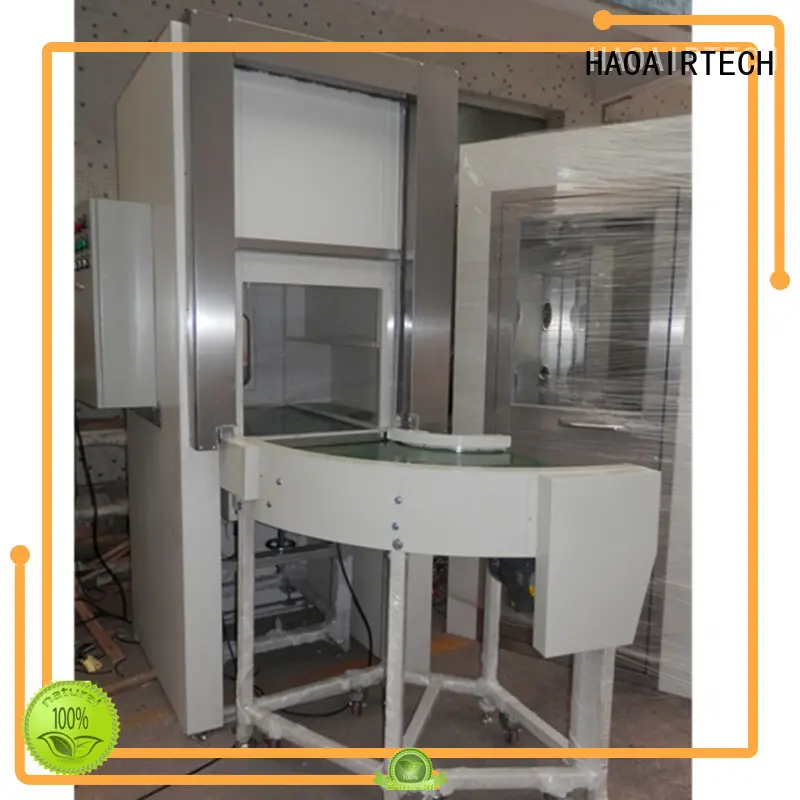

Vertical Slide Door Air Shower Pass Through

PLC Control Logic For Air Shower Pass Through:

 Sensor1 +Front Vertical Slide Door 1 + Haoairtech Auto Conveyor Line+ Sensor 2+Air Shower Pass Box+Back Vertical Slide Door2 + Sensor 3



 Sensor1:  This sensor should be fix on  auto conveyor line at end postion next to vertical front door 1

 Sensor 2:  This should be fix inside of air shower pass box.

 Sensor 3:  This should be fix on auto conveyor line next to back vertical slide door 2 .



1: When the carton pass the sensor 1 , the system will be give single to door. so that front vertical slide door open. meanwhile the keling auto conveyor line start working .

 2: When the carton pass the sensor 2 , system will be make the front door closed, and both door interlocker ,the self-clean system begain working (0-60S) adjustable .

 3: after the self-clean system finshed, the back side vertical slide door 2 will be opened , the system will be give singe to keling auto conveyor and yourself auto conveyor line start working ,

 4: when the carton pass the sensor 3 . the system remind the vertical slide door2  closed and keling conveyor line stop working.



 Note :



1: when the carton1 still inside the pass box , or still not pass the sensor3,  if there are new carton arrived sensor1, the system can not give any single to front door, untill the carton1 pass the  sensor 3 .

Parameter:



MODE	Air Shower   pass box with PLC control system
External size	1000x8000x2285 mm
Internal size	600X600x500mm
Air speed	>25m/s
Noise (dB)	75Db
Nozzle	8pcs
Filtration   Step	H13  99.995%@0.3um EU3  75%@2um
Fan	1 Sets (0.75KW 380V/50HZ    )
Booth Locker	Electric interlocker
Door	Entrance and   Exit door is automatic vertical glass   slide door
PLC Control   box	1 set

PLC Control Box :
