We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
Pass box is auxiliary equipment mainly used for passing small objects between 2 clean areas or between clean areas and unclean areas. Pass box reduces the closing and opening times of the clean rooms, which helps to maintain a reasonable air pressure in the clean room. Pass box keeps the contamination condition to the lowest.
Configuration optional:

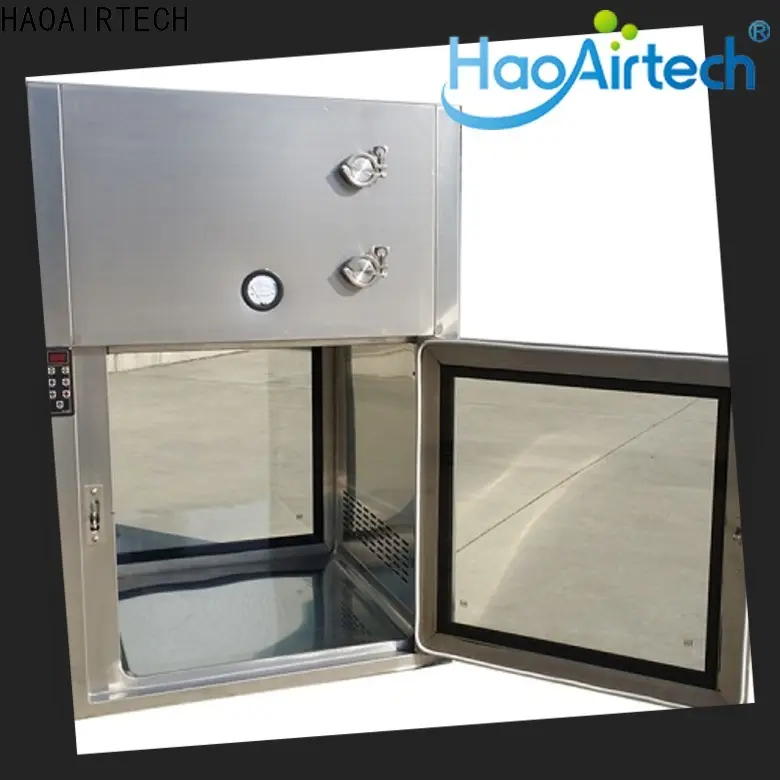

Pass Box
used for goods transfer between clean areas or between clean and non-clean areas
reduce cleanroom contamination risk
static and dynamic type
with self-clean and sterilization optional
Products Parameter:
MODEL | KEL-ASPB600 | |||||
External size (mm) | 940x600x1450mm | |||||
Work zone (mm) | 600x600x600mm | |||||
Nozzle | 4 PCS | |||||
Air speed | 18-25m/s | |||||
Per-filter | 425x275x17mm | |||||
G3 | ||||||
HEPA filter | 360x360x69mm | |||||
99.99%@0.3um H13 | ||||||
Optional accessories | 1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller | |||||
Power supply | 0.75KW 380V/50HZ | |||||
packing size (mm) | 1050x780x1600mm | 1100x880x1700mm | 1240x1030x1850mm | |||
Packing material | Standard Export Poly wood Packing(Fumigant free material) |
Air Shower Pass Box:
Air shower pass box Bottom:
Air Shower Pass Box Top Nozzle:
Company principle:
Our advantages:
•OEM available
•Factory direct sale
•Professional service
•Strict quality control
•We have 1~2 QC for each step
•We are supplier of some large supermarkets and famous brands
•No matter the quality or price,we can either give you the best
•Make sure the prompt leadtime
•We have our own raw material factory,carton factory,packing material factory to control every link,and save you the cost from every link
