HAOAIRTECH pass through box embedded lamps for electronics factory

Company Advantages
1. The design of HAOAIRTECH pass through box is scientific and humanized. It is designed adopting the concept of less effort and minimized pool cleaning time provided by the designers.
2. pass through box has achieve features like wall pass through box , and has met better technical and economic index.
3. pass through box has developed quickly in recent years due to its wall pass through box properties.
4. The product helps create a spacious feeling that is perfect when people want to relax and unwind at the end of a long day.

  Product Features：

    PLC Control system compact with conveyor line

    Internal Size: 500x960x500mm

 External size: 980x960x2250mm

 HEPA filter efficiency: 99.999%@0.3um

 Blower way: Three side blowing

Air speed: > 25m/s

Power: 380V/50HZ

The door open type: Automatic electric slide type.



PLC Logic Control Introduce:

 1: Entrance door is manual door or vertical slide door, Exit door is automatic slid door(up/down)

 2: After the goods entrance the cabinet closed the entrance door, the air clean system will be working .meanwhile the two door interlock.

 3:15s later, the exit door will be open automatic, and the conveyor system will be move on. When the goods pass the photo-electrics sensor that will be give single to the back door for close. (the part1 and part 2 should be together start and stop)

 4: Three side with blow. 1 Sets ion anti-static device available.

 5: Emergency button help you out of suddenly trouble



Part1: Automatic PVC conveyor line :

1: Major Structure and frame: Aluminum profile (50x50mm)

2: Belt: Anti-static PVC belt green color

3: Height: 700-1000mm adjustable

4: Motor: 0.4kw 380V/ 50HZ.

5: Speed: 1-15m/min (adjustable)

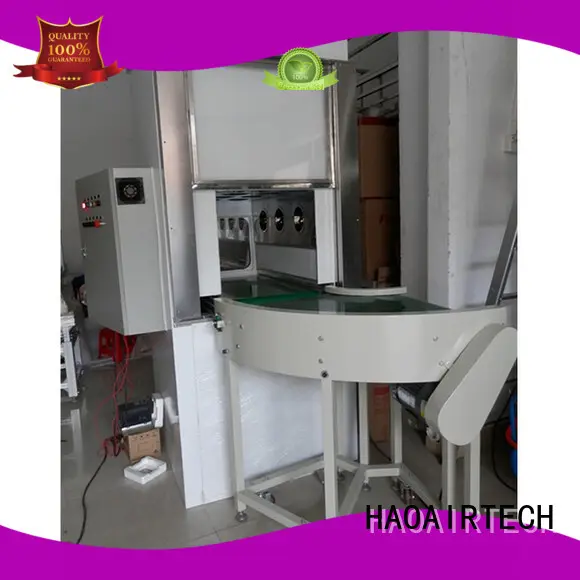

Part2:  Automatic 90 Degree conveyor line:

1: Major Structure:  steel with power coated plated

2: Frame: steel with power coated square cube. 40mmx40mmx1.5T

3: Belt: Anti-static PVC belt green color

4: Motor: 380V/50HZ.0.4KW

5: Speed: 1-15m/min adjustable



Technical Parameter:

MODEL	KEL-ASPB960
External size(mm) (WXDXH)	980X960X2250 mm
Internal size (mm) (WXDXH)	50X960X500mm
Interlocker	electronic interlocker
Air way	3 direction blowing
Pre-filter (mm)	560x275x17
HEPA Filter(mm)	630x630x69
Air flow  (m/s)	1200m3/h
Fan power	380V/50HZ 750w (1set)
Noise	<78dB
HEPA  Filter	99.995% @0.3um
UV lamp	1 pcs
Material	1:Entirety Sus201/304 (T=1.0/1.2mm) 2:External is steel with power coated,   Internal is SUS304(T=1.0/1.2mm) 3:  External is steel with power   coated. Internal is SUS201 (T=1.0/1.2mm)

Customer’s design is available.

air shower pass box with PLC control box :

  Air Shower Pass Box With Vertical Slide Door :

 PLC Control box with conveyor line :
