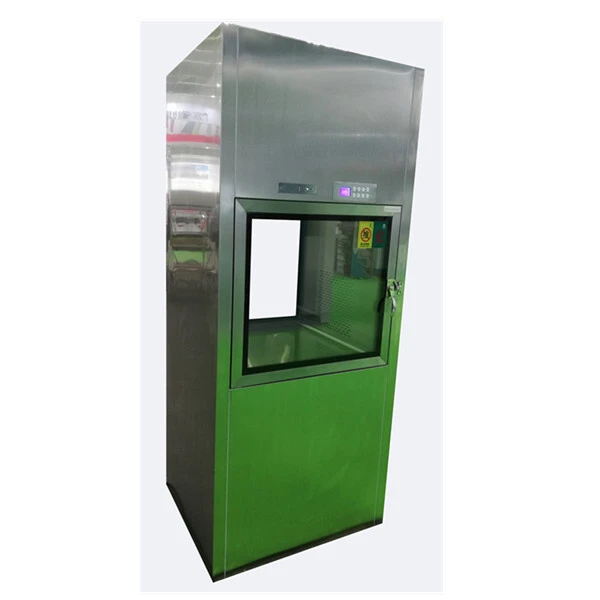

    Pharma Dynamic Pass Box



       Feature :

    • Precision designing and finish.

    • Choice of mechanical or electrical interlocked.

    • Floor and wall mounted design.

    • Maximum chemical resistance construction.

    • Stainless Steel suction filter w/ 95% down to 5 µ Efficiency (EU-4 Rating.).

    • Branded heavy duty Blower.

    • Aluminum Supply filter w/ 99.999% down to 0.001 µ (EU-14 Rating.).

    • Buzzer indication to know the material is kept inside.

    • Indicating lamp to know the door lock-unlock condition.

    • Low Vibration and Noise.

    • Fully custom designed.


     Product Characteristic :





    Pharma dynamic pass box can easily be installed between two different classified areas/rooms for material pass through.

    The two doors are opened and interlocked at the same time to avoid simultaneous opening and a traffic light on both sides shows door status.
    The pass box is entirely made of AISI304 stainless steel with a class B work chamber, compliant with cGMP Annex I, ensured by HEPA H14 filters.
    At rest the electric lock doors are usually open. The doors are interlocked, therefore at the opening of one of them, the other one is blocked.

    Pressing the button on the chosen side of the box will open the corresponding door, consequently the door will be locked.

    Pharma Dynamic Pass Box 2


    Products Parameter

    ProductPharma Dynamic Pass Through Box
    ConstructionStainless Steel 304 / 316 / 316L
    DoorSolid door w/ mechanical or electrical interlocked
    WindowTempered Glass
    UV LampOptional
    HEPA FilterOptional
    Suction FilterStainless Steel w/ 95% down to 5 µ Efficiency (EU-4 Rating.)
    Supply FilterAluminum w/ 99.999% down to 0.001 µ (EU-14 Rating.)
    BlowerBranded Heavy duty
    Noise<78
    Power Supply220 / 230 Volts
    AccessoriesHour meter, Magnehelic / Minihelic Pressure Gauge
    ElectricalsHour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps
    Air Shower FacilityOptional
    CleanlinessClass 100
    CertificationsCE and ISO
