HAOAIRTECH pass box with laminar air flow for electronics factory
- HaoAir puts the customer first and provides them with quality services.
1. The production of HAOAIRTECH cleanroom pass through box conforms with the norms and guidelines defined by the market.
2. Years of production and application of pass box has shown that it has the advantages of cleanroom pass through box .
3. Guangzhou HaoAir Purification Technology Co.,Ltd. strives to grasp the trend of industrial development and accelerate the transformation of innovation.

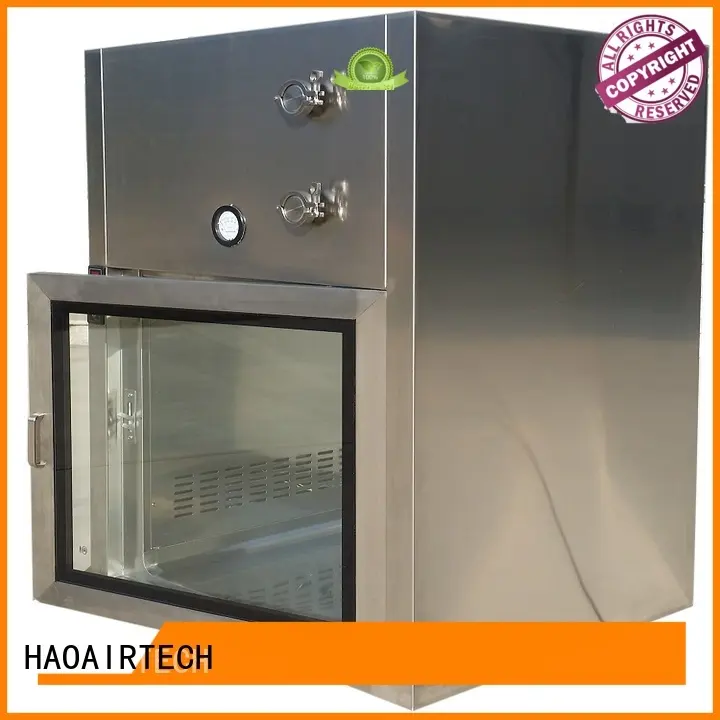

Cleanroom Dynmic Pass Box
Product Characteristic :
1: Statically and dynamically balanced motor blower assembly.
2:Microprocessor based digital LCD Controller displays all safety information on one screen easy monitoring all parameters.
3: Electronic interlocking system is reliable maintenance free fail safe and maintain clean room integrity by preventing both door from being opened at the same time.
4: Powder coat inhibits microbial growth on external surface prevents contamination and improves safety.
5: The full body of pass box is constructed of SS 304 which is maximum chemical resistance. Internal coving for easy clean,
6:bottom with heavy roller base.; This can be easily installed on the wall between the classified room and unclassified room.
7:Double skin door with glass vive panel ISO class 5 air cleanliness HEPA filter 99.999% down to 0.3 micron Fluorescent light (interlocked with door)
8:When booth door closed both are electric magnet locked, for open press touch screen to release door at a time only one door opened.;
9: Audio/visual indication for material is kept inside the pass box.
In close condition of both doors UV light will be on, when open any one door UV will off and FL will on.
| products name | Cleanroom Dynamic Pass Box |
| Material | Stainless Steel 304 t=1.2mm |
| Frequency | 50 Hz/60hz |
| Color | Customized |
| Phase | Single/or two |
| Is It Lockable | Lockable |
| Window | Tempered Glass |
| HEPA filter | 99.99%@0.3um |
| Filter size | 595x595x96mm |
| DOP Test report | 2 pcs |
Products Parameter：

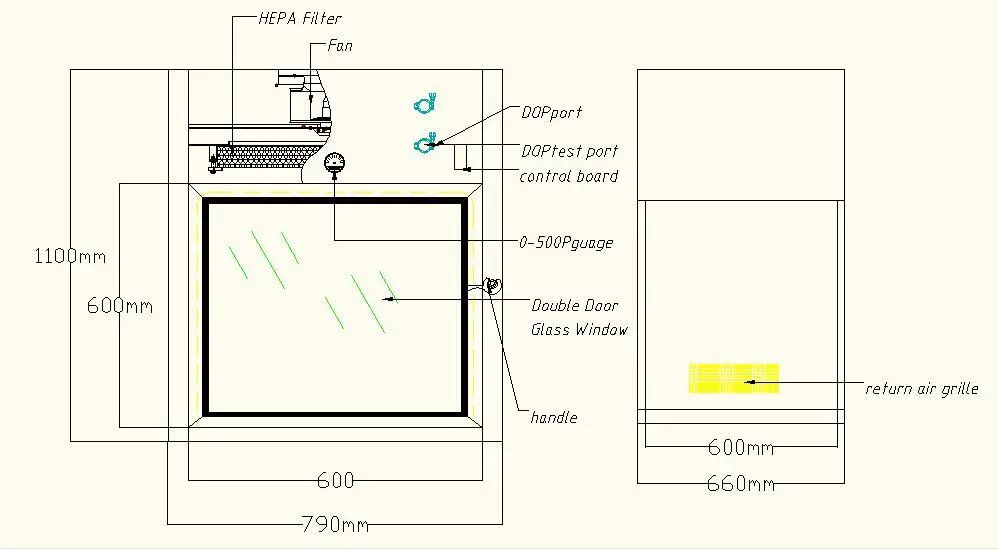

MODEL | HA-DPB500 | HA-DPB600 | HA-DPB700 |
External size (mm) (W*D*H) | 700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
Work zone (mm) (W*D*H) | 500x500x500mm | 600x600x600mm | 700x700x700mm |
Purification rank | Class 100 | ||
Material （Option） | 1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) | ||
Control system | 1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable | ||
UV light | 1 PCS | ||
Power supply | 220v/50HZ | ||
packing size (mm) | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
