We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH pass box with laminar air flow for electronics factory1 1
HAOAIRTECH pass box with laminar air flow for electronics factory1 2
HAOAIRTECH pass box with laminar air flow for electronics factory1 3
HAOAIRTECH pass box with laminar air flow for electronics factory1 1
HAOAIRTECH pass box with laminar air flow for electronics factory1 2
HAOAIRTECH pass box with laminar air flow for electronics factory1 3

HAOAIRTECH pass box with laminar air flow for electronics factory1

Brand:
haoairtech
Model number:
HA-DPB500
Material:
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
OEM /ODM:
OEM /ODM
Certificated:
CE
Start port:
GUANGZHOU
Delivery time:
10 days
MOQ:
1 set
Inquiry
Product Name
Haoairtech
Other Name
pass box
Guarantee Time
12 month
Company Advantages
1. As HAOAIRTECH static pass box is made of high materials, it meets the international standards. The product creates a clean environment to reduce allergy and asthma symptoms
2. The product plays an indispensable role in modern life or work. It would become an essential part of people's life or work by improving overall efficiency. The product ensures the smooth refreshing breath of users
3. This product has high quality assurance and excellent performance. All factors affecting its quality and production performance can be timely tested and corrected by our well-trained QC staff. The product can maintain high air quality of the factory

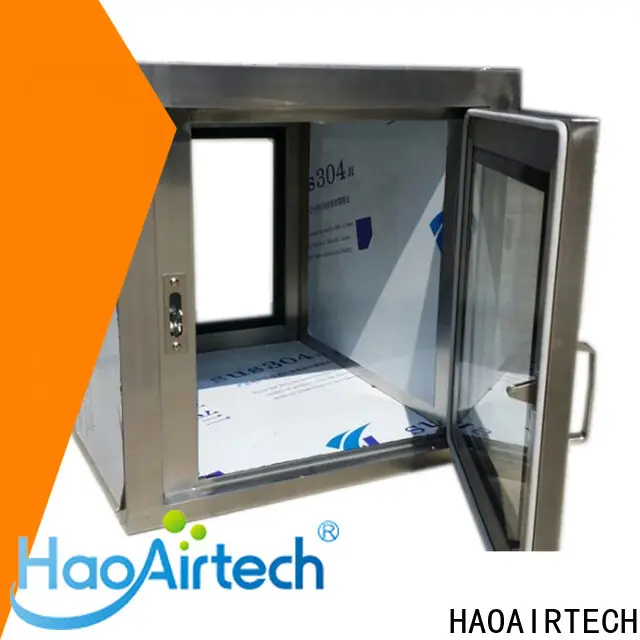

Cleanroom transfer window pass box

Introduce:

The cleanroom pass box is a kind of auxiliary equipment for clean room. It's used to transfer goods between areas of different clean levels of clean room. It can reduce the times of opening door, prevent the air convection between different areas and minimize the pollution extent.



The cleanroom pass box is made of stainless steel and is smooth and clean. The two doors are interlocked to effectively prevent cross-contamination. Electronic or mechanical interlocking devices are provided and ultraviolet germicidal lamps are provided.


Specifications :

  • SS Handles and SS hinges

  • Electro-magnetic Interlocking

  • Door Release Switch on either side

  • Mechanical Interlocking

  • Provision for ventilation with perforated grille

  • U. V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if any of the door opens

  • Three wall construction for floor mounting

  • Floor mounted construction with three side wall structure & Door Drop Seal

  • Support stand for mounting the pass box

  • Flange for filling the gap between the pass box and the clean room wall

  • Fluorescent light with interlocking arrangement to put on light when the doors are in closed position


Products Parameter:

MODEL

HA-DPB500

External size (mm)
(W*D*H)

700x570x1050mm

Work zone (mm)
(W*D*H)

500x500x500mm

Purification rank

Class 100

Material
(Option)

1: Entirety Sus304.(T=1.2/1.5mm)
2: Entirety Sus201.(T=1.2/1.5mm)
3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm)
4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)

Control system

1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem.
2: Pass Box inside bottom corner is round shape without any dust
accumulation .
3: Double layer vacuum glass have very good appearance
4: Software computer interlocking door with long time using life
5: Air speed is 0.45m/s adjustable

UV light

1 PCS

Power supply

220v/50HZ

packing size (mm)

800x870x1300mm

Packing material

Standard Export Poly wood Packing(Fumigant free material)



Outlook:

pass box2pass box3

pass box


Q&A:

Q1. What is your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.


Q3. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Q6. Do you test all your goods before delivery?
A: Yes, we have 100% rigorous test before delivery.


Q7.What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


Q8.How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.




Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is an experienced and reliable company in designing, manufacturing and distributing cost-effective products such as pass box .
2. In order to improve the core competitiveness, HAOAIRTECH has established the technical center for the development of the advanced technology.
3. Taking static pass box as business tenet, Guangzhou HaoAir Purification Technology Co.,Ltd. successfully lead the trend in cleanroom pass box field. Get an offer!
