We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH pass box with conveyor line for hvac system1 1
HAOAIRTECH pass box with conveyor line for hvac system1 2
HAOAIRTECH pass box with conveyor line for hvac system1 3
HAOAIRTECH pass box with conveyor line for hvac system1 1
HAOAIRTECH pass box with conveyor line for hvac system1 2
HAOAIRTECH pass box with conveyor line for hvac system1 3

HAOAIRTECH pass box with conveyor line for hvac system1

Brand:
HAOAIRTECH
Model number:
HA-DPB
Material:
Stainless steel304/316
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
Huangpu
Delivery time:
10 working days
MOQ:
10sets
Country of Original:
china
Supply ability:
100set/month
Payment term:
100% T/T in advance, or 100% LC at sight
Application:
cleanroom
Inquiry

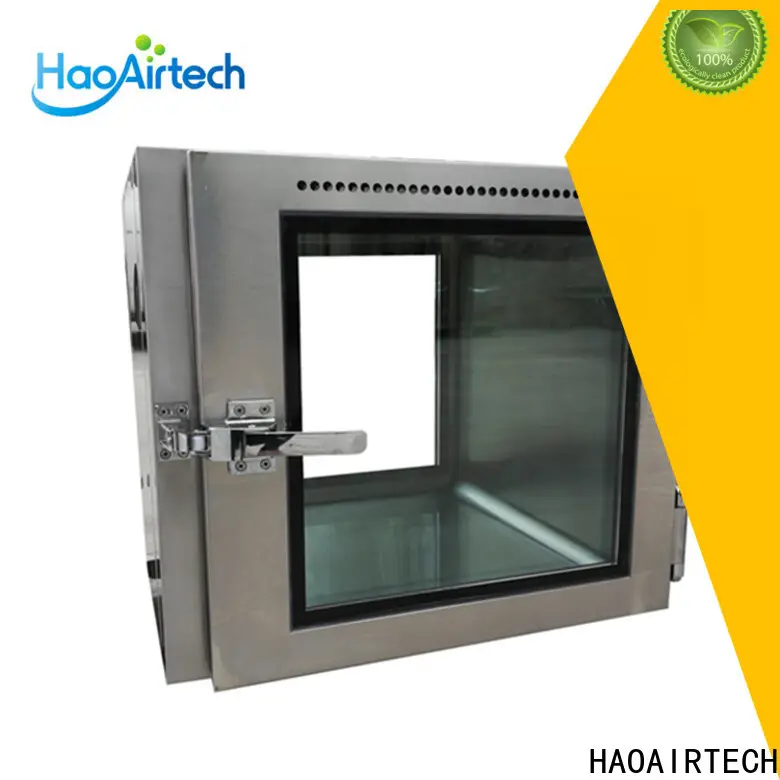

Negative Pressure Pass Through Box


Product Features

Pass box four side is inner arc so that there is any dust accumulation.

One row hole on the top door so that the purification air was force out of clean room.

External size: 760*670*690mm

Internal size: 600*600*600mm

External Material: stainless steel304 (t=1.2)

Inside Material: stainless steel304 (t=1.2)

Double layer vacuum glass

Mechanical interlocking



Introduce:

The special design of the negative pressure pass box to form a pressure difference between the positive pressure of the clean room and the negative pressure in contaminated area,

 it forces the air flow direction from the clean area to the contaminated area always.

In this flow process, pass box inside dust on the cargo and the suspended particles in the air are taken away to achieve the possibility of completely avoiding cross contamination.

four side inner arc design proved the dust accumulation, Overall seamless connection soft PU Foam gasket have very goods performance in eliminate air leaking problem.

HAOAIRTECH pass box with conveyor line for hvac system1 4

HAOAIRTECH pass box with conveyor line for hvac system1 5

Products Parameter:

MODEL

HA-PPB500

HA-PPB600

HA-PPB700

External size (mm)
(W*D*H)

660x500x590mm

760x600x690mm

860x700x790mm

Work zone (mm)
(W*D*H)

500x500x500mm

600x600x600mm

700x700x700mm

Material
(Option)

1: Entirety Sus304.(T=1.2/1.5mm)
2: Entirety sus201. (T=1.2/1.5mm)
3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm)
4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)

Control system

1: Both door is mechanical interlocking
2: Pass Box inside four corner is round shape without any dust accumulation
3: Double layer vacuum glass have very good appearance
4; One row hole on the top door so that the purification air was force out of clean room

UV light

1 PCS

packing size (mm)

800x780x850mm

910x880x940mm

1100x980x1050mm

Packing material

Standard Export Poly wood Packing(Fumigant free material)

Draw:HAOAIRTECH pass box with conveyor line for hvac system1 6
