HAOAIRTECH pass box with conveyor line for electronics factory
1. HAOAIRTECH static pass box specification is produced by a complicated process. Its raw fiber selection is strict, fiber and yarn are professional production, dyeing and coloring are carefully processed.
2. This product has excellent stitch density. The number of stitches in the one-inch segment has been strictly counted to conforms to stitch specifications.
3. This product is easy to assemble, dismantle, carry, and storage, which makes transportation much easier and cost-effective.
4. People who use this product would benefit a lot in terms of energy bills. From the long run, it will help save the whole environment.

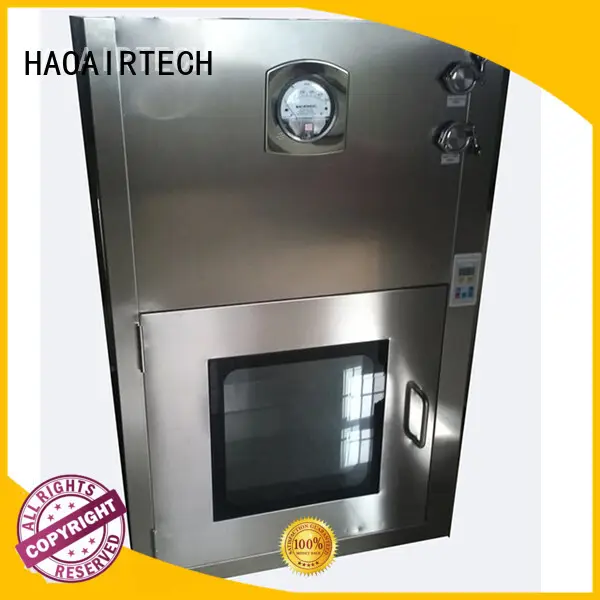

SS304 Dynamic Pass Box
Technical Details:
Double walled SS 304 / Powder Coated construction except Filters and motor-blower assemblies which will be in standard execution.
Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3 µ at supply position.
Return Air prefilter which conforms to EU 6 Grade, with efficiency of 95% down to 5 micron. These Filters are basically made from micro-Fibre-glass media and are inherently washable.
Motor, Blower provided are statically and dynamically balanced to supply air flow with sufficient capacity and static pressure for entire life of HEPA. Blower is high performance, noise abated and light weighted.
Magnehelic Differential Pressure Gauge (0 - 25 mm or 0-50 mm) to monitor pressure drop across HEPA Filter with respect to ambient.
ON/OFF Switches for motor & lights.
SS 304 double walled doors with glass view panels, SS handle, hinges, gasket & Automatic Door Bottom Seal as per application.
Return Air Grills on side walls.
Electro - Magnetic Interlocking to ensure only one side door will be opened at a time.
Indicating Lamp on both sides.
Door release button on both sides.
DOP Test port at upstream of HEPA filter.
Fluorescent Light and UV Light as per requirement along with Hour Meter
TECHNICAL SPECIFICATIONS
| Model | HA-DPB | HA-SPB |
|---|---|---|
| Design type | Dynamic | Static / Passive |
| Cleanliness level | Class 100 | - |
| Internal Dimension | 2 x 2 x 2 Ft. | 2 x 2 x 2 Ft. |
| MOC | Stainless steel 304 | Stainless steel 304 |
| Illumination | LED tube light | LED tube light |
| Air system | Motor-blower with suspension arrangement | - |
| Filters |
| - |
| Door |
|
|
| Standard Fittings |
|
|
| Power supply | 220 Volts / 50 Hz | 220 Volts / 50 Hz |
| Optional |
|
|
Company Features
1. As a leading company in global market, Guangzhou HaoAir Purification Technology Co.,Ltd. mainly manufactures Pass Box.
2. We have a top R&D team to keep improving quality and design for our pass box .
3. Guangzhou HaoAir Purification Technology Co.,Ltd. is a pass box manufacturers enterprise which specializes in designing and developing new fashion of static pass box specification . Welcome to visit our factory! Guangzhou HaoAir Purification Technology Co.,Ltd. assures that proficiency is important, but more important is quality. Welcome to visit our factory!
PB series Pass Box
- used for goods transfer between clean areas or between clean and non-clean areas
- reduce cleanroom contamination risk
- static and dynamic type
- with self-clean and sterilization optional
| Model | PBA-555 | PBA-666 | PBA-575 |
| Working area W*H*D(mm) | 500*500*500 | 600*600*600 | 500*700*500 |
External Dimension(mm) | 720*650*580 | 820*750*680 | 720*850*580 |
| Interlock system | Electromagnetism interlock | ||
| Sight Glass Dimension | 5mm Tempered Glass | ||
| UV Lamp | 1pcs Optional | ||
Lighting Lamp | 1pcs Optional | ||
Power | AC220V,1 | ||
| Material | 1.SUS304;2.Powder coated of external steel plate,SUS304 Of inner side | ||
| Products Standard | Q/320507 LDH007-2016 | ||
Q:Where have you exported your equipment?
A:We’ve already exported to more than 30 countries in Aisa,Europe,Middle East,Africa,South America.etc.
Q:Can you arrange the visit to your user?Can you customized the machine according to our requirements?
A:Yes,Of course!
Q:Is your equipment in accordance with GMP,FDA,WHO?
A:Yes,we will design and manufacture the equipment according to the requirement of GMP/FDA/WHO in your company.
Q:How about your after sale service?
A:We will reply you within 24hours by email or phone.
If we have local agent,we will arrange him to your site within 24 hours to assist you to shoot the problem.
Q:How about the staff training?
A:Normally,we will train your staffs during the installation in your site,you are also welcome to send your staff train in our factory.
Q:How long will the turnkey project take?
A:About 1 year from designing the layout to finish installation and commissioning.
Q:Which kind of after-sales service you can offer?
A:Except the regular service ,we can also provide you know-how transfer,and dispatch our qualified engineers to help you run the factory up to 6-12 months.
