We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH pass box with baked painting for clean room purification workshop 1
HAOAIRTECH pass box with baked painting for clean room purification workshop 2
HAOAIRTECH pass box with baked painting for clean room purification workshop 3
HAOAIRTECH pass box with baked painting for clean room purification workshop 4
HAOAIRTECH pass box with baked painting for clean room purification workshop 1
HAOAIRTECH pass box with baked painting for clean room purification workshop 2
HAOAIRTECH pass box with baked painting for clean room purification workshop 3
HAOAIRTECH pass box with baked painting for clean room purification workshop 4

HAOAIRTECH pass box with baked painting for clean room purification workshop

Brand:
HAOAIRTECH
Model number:
HA-PB
Material:
Steel With Power Coated for outside, stainless steel304 for inside
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
GUANGZHOU
Delivery time:
15 Working days
Country of Original:
China
Supply ability:
50set/month
Payment term:
T/T IN ADVANCE, and LC at sight
Application:
industry cleanroom . automatic control system
Inquiry

  Product Features


    PLC Control system compact with conveyor line

    Internal Size: 500x960x500mm

 External size: 980x960x2250mm

 HEPA filter efficiency: 99.999%@0.3um

 Blower way: Three side blowing

Air speed: > 25m/s

Power: 380V/50HZ

The door open type: Automatic electric slide type.



PLC Logic Control Introduce:


 1: Entrance door is manual door or vertical slide door, Exit door is automatic slid door(up/down)

 2: After the goods entrance the cabinet closed the entrance door, the air clean system will be working .meanwhile the two door interlock.

 3:15s later, the exit door will be open automatic, and the conveyor system will be move on. When the goods pass the photo-electrics sensor that will be give single to the back door for close. (the part1 and part 2 should be together start and stop)

 4: Three side with blow. 1 Sets ion anti-static device available.

 5: Emergency button help you out of suddenly trouble



Part1: Automatic PVC conveyor line :

1: Major Structure and frame: Aluminum profile (50x50mm)

2: Belt: Anti-static PVC belt green color

3: Height: 700-1000mm adjustable

4: Motor: 0.4kw 380V/ 50HZ.

5: Speed: 1-15m/min (adjustable)



Part2:  Automatic 90 Degree conveyor line:

1: Major Structure:  steel with power coated plated

2: Frame: steel with power coated square cube. 40mmx40mmx1.5T

3: Belt: Anti-static PVC belt green color

4: Motor: 380V/50HZ.0.4KW

5: Speed: 1-15m/min adjustable



Technical Parameter:

  MODEL

KEL-ASPB960

External size(mm)

(WXDXH)

980X960X2250 mm

Internal size (mm)

(WXDXH)

50X960X500mm

Interlocker

 electronic interlocker

Air way

3 direction blowing

Pre-filter (mm)

560x275x17

HEPA Filter(mm)

630x630x69

Air flow  (m/s)

1200m3/h

Fan power

 380V/50HZ 750w (1set)

Noise

<78dB

     HEPA  Filter

   99.995% @0.3um

UV lamp

    1 pcs

Material



1:Entirety Sus201/304 (T=1.0/1.2mm)

2:External is steel with power coated,   Internal is SUS304(T=1.0/1.2mm)

3:  External is steel with power   coated. Internal is SUS201 (T=1.0/1.2mm)

Customer’s design is available.


air shower pass box with PLC control box :

HAOAIRTECH pass box with baked painting for clean room purification workshop 5

  Air Shower Pass Box With Vertical Slide Door :

HAOAIRTECH pass box with baked painting for clean room purification workshop 6

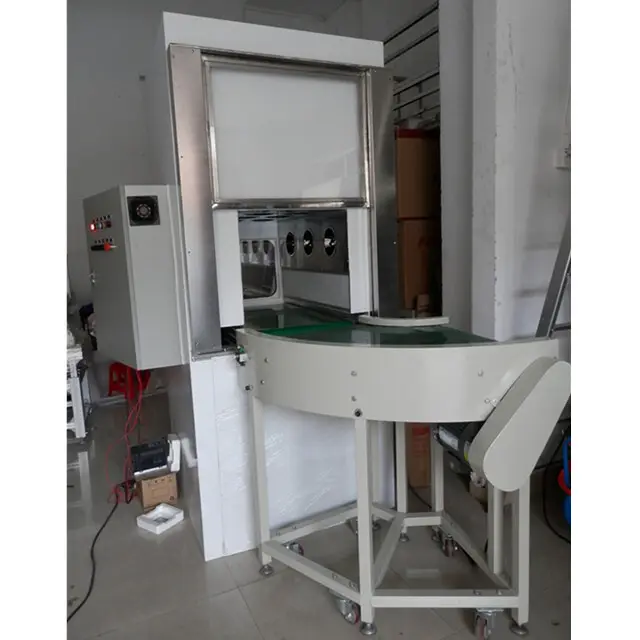

 PLC Control box with conveyor line :

HAOAIRTECH pass box with baked painting for clean room purification workshop 7
