HAOAIRTECH pass box embedded lamps for hvac system2

Company Advantages
1. There really is a science to developing the design of HAOAIRTECH wall pass through box . We have the designers, fashion forecasters, merchandisers, and product developers work together to determine its design. Made of stainless steel SUS304, it is beautiful and durable
2. Guangzhou HaoAir Purification Technology Co.,Ltd. sets up a comprehensive quality control system to ensure the production quality. The product can withstand high temperature
3. The product is made to last. Made of heavy-duty materials, it is highly resistant to wear and tear even it's imposed with heavy bearing. The product is widely used for high-end clean rooms of various manufacturers

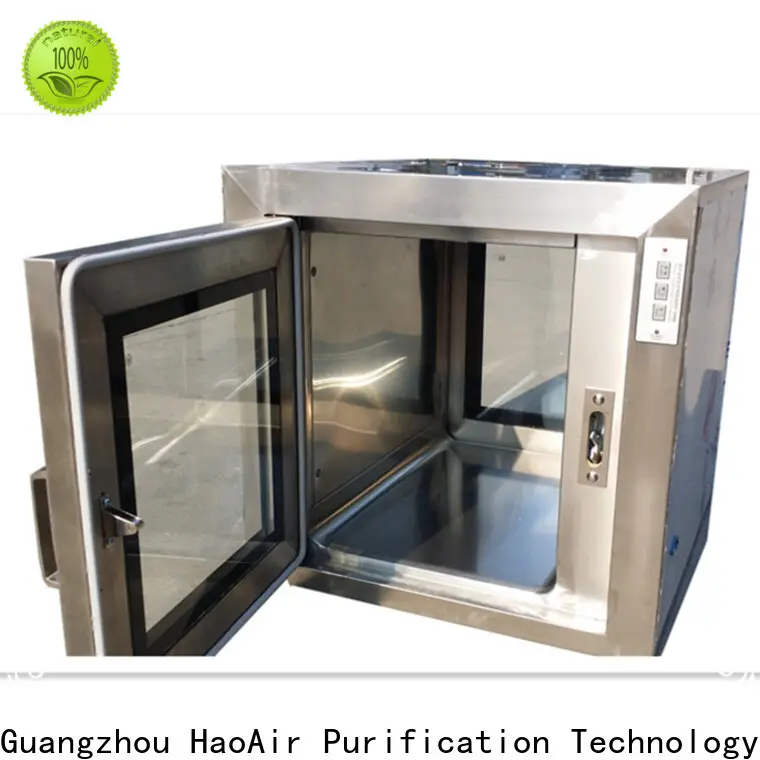

SUS304/SUS316 Cleanroom Static Pass Through Chamber

Static Pass Through Introduction:

The pass box is a device to keep the two areas at different grade from cross contaminants from one space to another during product or tool transfer. This is a safe and effective solution since they can keep the materials from contamination within a controlled environment. It can also be used to protect the materials from external contamination.

Static Pass Through Features :

1.Allows contamination-free transfer of materials in and out of the cleanroom.

2.Eliminates unnecessary personnel garbing and entry.

3.Ideal for general cleanroom use - select CleanSeam, BioSafe or Smart models for use with biological samples.

4.Stainless steel doors and hinges eliminate corrosion and extend service life.

5.Fool-proof automatic interlock mechanism prevents cross-contamination, is reliable and maintenance-free.

6.Material options accommodate many application requirements, from chemical resistance to static control.

7.Accessories include latch locks, sloping CleanTop and removable shelves.

8.Easy to install.

The Static Pass Box is approval by CE and RoHS certificate.

Customer’s design is available.

Clean Room Static Pass Box Specification:

Clean Room Static Pass Box HA-SPB Series
Model	HA-SPB500	HA-SPB600	HA-SPB700
Outer Size(mm) (WXDXH)	700x570x590	800x670x690	900x770x790
Inner Size(mm)(WXDXH)	500x500x500	600x600x600	700x700x700
Construction	1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting. 2. External is steel with power coated, internal is SUS304. 3. External is steel with power coated, internal is SUS201. 4. External is steel with power coated, internal is SUS316.
Material Thickness	T=1.0/1.2/1.5mm
Window	Double layer vacuum glass
Interlock	Mechanical or electric interlocking.
Four Corner	Bottom is inner arc, preventing dust accumulation.
Accessories	1. Interphone 2. UV light 3. Roller
Power supply	220V/50Hz or 60Hz

Different Type Pass Boxes For Review:

Cleanroom Static Pass Box Application：

Company Features
1. We have a well-cultivated team of talents. They are trained with industry expertise and attend the professional seminar, aiming to improve the quality of their work.
2. For a long time, many of our products have been at the top of the sales charts and have impacted many overseas customers. They started to seek cooperations with us, trusting us can provide the most appropriate product solutions for them. Contact!
