HAOAIRTECH pass box clean room embedded lamps for hospital1

Company Advantages
1. Compared with the other brands, this kind of pass box clean room can be maintained much longer due to its cleanroom pass through box .
2. This product comes with the advantage of a multilevel arrangement. It can be stacked at eye-level, floor-level and even at middle-level.
3. The product is acoustically insulated. It adopts special panel surface finishes that can effectively block out the transmission of bad sound conditions.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. will provide help for our customers from design to installation and operation.

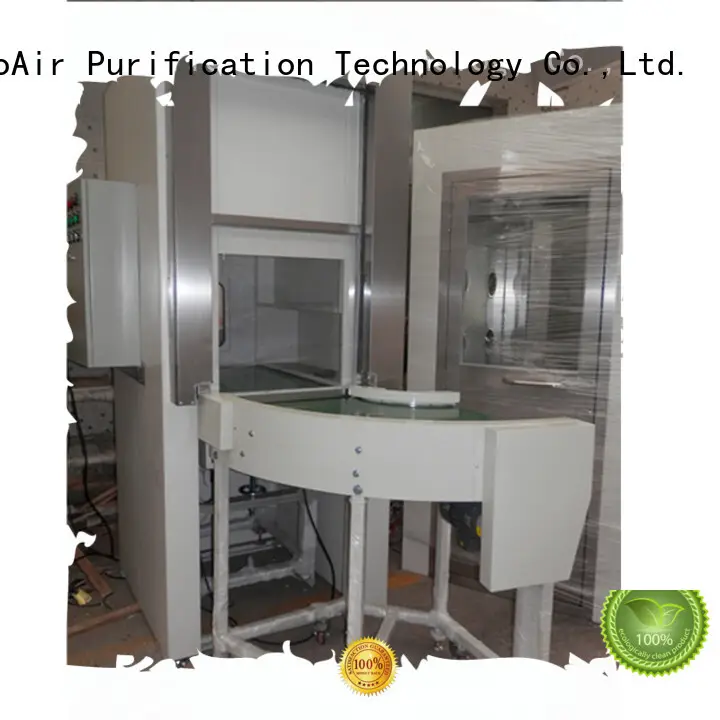

Vertical Slide Door Air Shower Pass Through

PLC Control Logic For Air Shower Pass Through:

 Sensor1 +Front Vertical Slide Door 1 + Haoairtech Auto Conveyor Line+ Sensor 2+Air Shower Pass Box+Back Vertical Slide Door2 + Sensor 3



 Sensor1:  This sensor should be fix on  auto conveyor line at end postion next to vertical front door 1

 Sensor 2:  This should be fix inside of air shower pass box.

 Sensor 3:  This should be fix on auto conveyor line next to back vertical slide door 2 .



1: When the carton pass the sensor 1 , the system will be give single to door. so that front vertical slide door open. meanwhile the keling auto conveyor line start working .

 2: When the carton pass the sensor 2 , system will be make the front door closed, and both door interlocker ,the self-clean system begain working (0-60S) adjustable .

 3: after the self-clean system finshed, the back side vertical slide door 2 will be opened , the system will be give singe to keling auto conveyor and yourself auto conveyor line start working ,

 4: when the carton pass the sensor 3 . the system remind the vertical slide door2  closed and keling conveyor line stop working.



 Note :



1: when the carton1 still inside the pass box , or still not pass the sensor3,  if there are new carton arrived sensor1, the system can not give any single to front door, untill the carton1 pass the  sensor 3 .

Parameter:



MODE	Air Shower   pass box with PLC control system
External size	1000x8000x2285 mm
Internal size	600X600x500mm
Air speed	>25m/s
Noise (dB)	75Db
Nozzle	8pcs
Filtration   Step	H13  99.995%@0.3um EU3  75%@2um
Fan	1 Sets (0.75KW 380V/50HZ    )
Booth Locker	Electric interlocker
Door	Entrance and   Exit door is automatic vertical glass   slide door
PLC Control   box	1 set

PLC Control Box :
