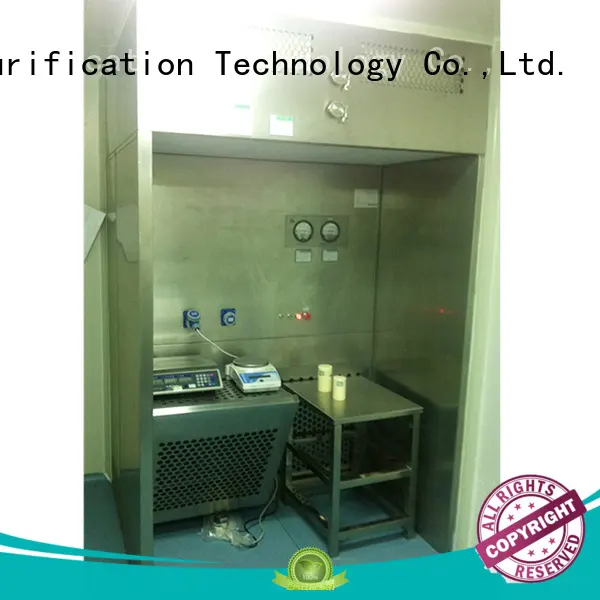

HAOAIRTECH negative pressure sampling booth gmp modular design for pharmacon

Brand:

HAOAIRTECH

Model number:

HA-DB Series

Material:

inside and outside is stainless steel304 (t=1.0mm)

OEM /ODM:

Yes

Certificated:

CE and Rosh

Start port:

Guangzhou

Delivery time:

8 working days after we get the deposit.

MOQ:

1sets

Country of Original:

China

Supply ability:

50 set/one month

Payment term:

T/T , L/C , Western union

Application:

Worker in Clean room

Inquiry

Product Features

Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
5 different filters configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)

HAOAIRTECH negative pressure sampling booth gmp modular design for pharmacon 9

/ Products Parameter

MODEL	HA-DB1000	HA-DB1500	HA-DB2000
External size (mm) (WDH)	1200x1500x2400mm	1500x1700x2400mm	2000x1800x2400mm
Work zone (mm) (WDH)	1100x1200x2000mm	1400x1200x2000mm	1900x1300x2000mm
Purification rank	Class 100(ISO5)
Air speed	0.45m/s +_20%
Material（Option）	1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm)
Control system	1: Air Speed according to frequency converter control . 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. 7: PVC strip curtains available 8; Energy Efficient high air volume fan to minimize operating cost,
Noise level(dB)	<65dB
Filter step	3 Step
HEPA filter	99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
Secondary filter	F8 pocket air filter
Pre-filter Efficiency	G4 Z-Line panel air filter
Power supply	380V/50HZ OR 220V/50HZ
Packing material	Standard Export Poly wood Packing(Fumigant free material)

/ Specification

HAOAIRTECH negative pressure sampling booth gmp modular design for pharmacon 10

/ Product Details

part.1

DOP port

HAOAIRTECH negative pressure sampling booth gmp modular design for pharmacon 11

part.2

Control System

HAOAIRTECH negative pressure sampling booth gmp modular design for pharmacon 12

part.3

Air speed Test

HAOAIRTECH negative pressure sampling booth gmp modular design for pharmacon 13

Application

Dispensing booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .

/ Certificated

HAOAIRTECH negative pressure sampling booth gmp modular design for pharmacon 14

/ Our Service

HAOAIRTECH negative pressure sampling booth gmp modular design for pharmacon 15

Our Service

1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
