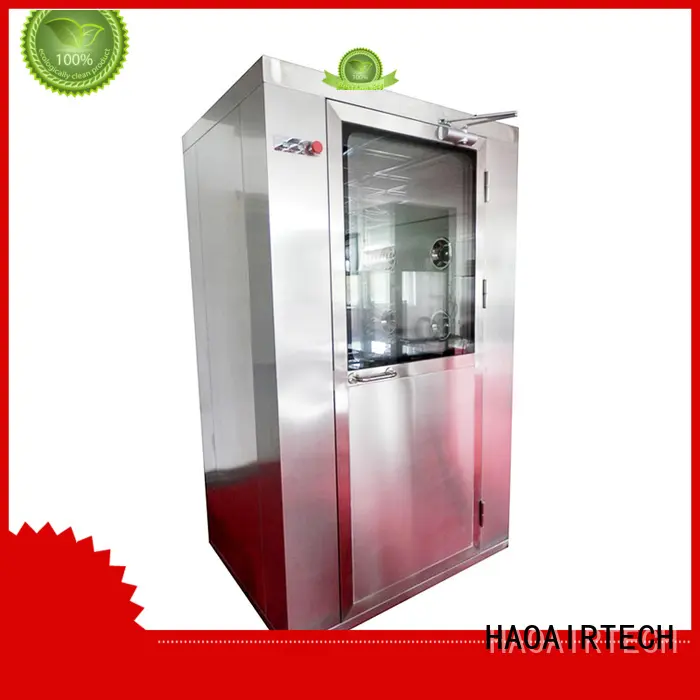

HAOAIRTECH high quality clean room manufacturers with three side blowing for large scale semiconductor factory
1. HAOAIRTECH air shower manufacturer in india is produced under full advanced machinery and equipment. It will be processed by precise CNC cutting machine, far infrared bridge cutting machine, electric oven, and the emery water knife.
2. Strict quality control processes are carried out throughout the production process, eliminating possible defects in the product.
3. The offered product can be vastly used in the industry.
Big air blowing fan is explosion-proof
Purification light is explosion –Proof
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 1600*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
MODEL | HA-AS1600P1 | HA-AS1600P2 | HA-AS1600P3 | |
External size (mm) | 1600x1000x2180mm | 1600x2000x2180mm | 1600x3000x2180mm | |
Work zone (mm) | 800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1:Entirety Sus304.(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
Air velocity | 1000(m3/h) | |||
Initial resistance(pa) | <180pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1750x1200x2250mm | 1750x2200x2250mm | 1750x3200x2250mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Illustrate
1: Explosion– Proof Control Board 2: SUS Nozzle 3: Infrared Indicator 4: Per-filter 5: Power indicator 6: Emergency switch 7: Working light 8: HEPA air filter (H13 99.995%@0.3um) 9: Interlock Door, 10: Explosion –Proof Big air blower 11: Door Closer 12: Explosion–Proof purification light
Introduce:
Explosion-proof air shower rooms are widely used in enterprises that require high purification produce flammable and explosive materials, such as refineries, cutting-edge weapons producers, military enterprises, and aerospace industries. As used in the explosive industry and the use of volatile goods, enterprises must take into account the product features and safety of the customer workshop in the design of explosion-proof air shower rooms. All parts of the explosion-proof air shower room are all used with explosion-proof electrical appliances and lines to avoid the explosion of combustible gas and equipment in the customer's workshop.
/ Our Service
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
