We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

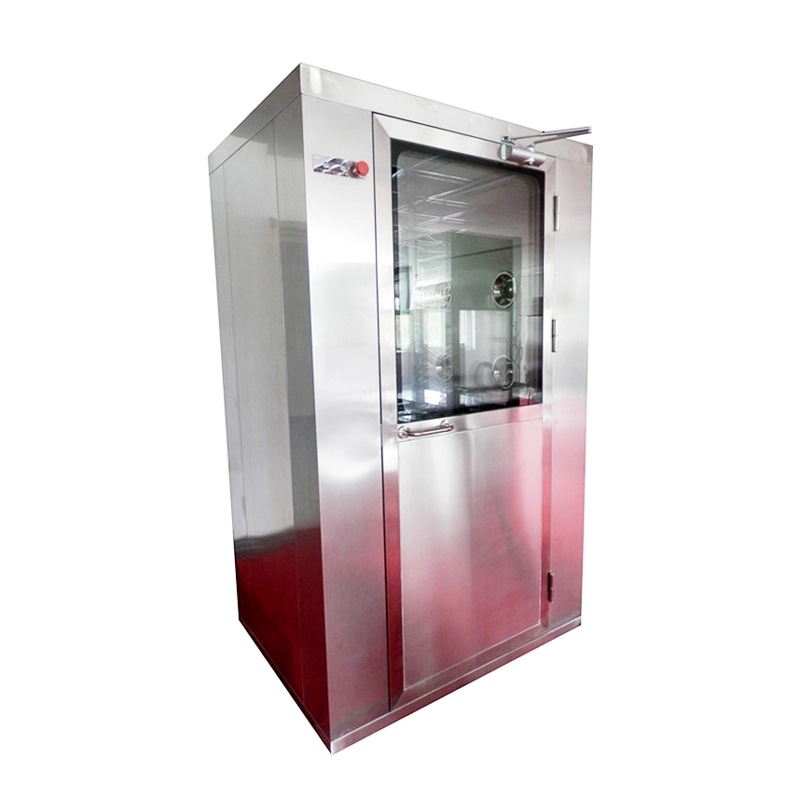

SUS304  Explosion –Proof Air Shower Room For One Person 1
SUS304  Explosion –Proof Air Shower Room For One Person 1

SUS304 Explosion –Proof Air Shower Room For One Person

    oops...!

    no product data.

    Go to homepage



    Product Features
    Air shower electric control system is explosion-proof
    Big air blowing fan is explosion-proof
    Purification light is explosion –Proof
    External Material: stainless steel304 (t=1.0)
    Inside Material: stainless steel304 (t=1.0)
    External size: 1600*1000*2180mm
    Internal size: 800*930*1910mm
    Sus nozzle: 16pcs
    Blowing way: 3 side (left, right and top)
    Air speed: more than 25m/s
    SUS304  Explosion –Proof Air Shower Room For One Person 2


    / Products Parameter


    MODEL

      HA-AS1600P1

    HA-AS1600P2

    HA-AS1600P3

    External size (mm)
         (W*D*H)

    1600x1000x2180mm

    1600x2000x2180mm

    1600x3000x2180mm

    Work zone (mm)
         (W*D*H)

    800x930x1910mm

    800x1930x1910mm

    800x2930x1910mm

    Persons per cycle

     1-2 person

    2-4 person

    3-6 person

    Material (Option)

    1:Entirety Sus304.(T=1.0/1.2/1.5mm)
    2:Entirety sus201. (T=1.0/1.2/1.5mm)
    3:External is steel with power coated,    Internal is SUS304(T=1.0/1.2/1.5mm)
    4:External is steel with power coated.    Internal is SUS201(T=1.0/1.2/1.5mm)

    Control system

    1: Control system with LED display for    the shower time.
    2: The shower time from 0-99second.    (Adjustable)
    3: Infrared ray inductor for inside    personal shower automatic.
    4: Three side blowing with Human voice    prompt system.
    5: The Air shower electric control system    ,big blowing fan and purification light is explosion –Proof
    6: with CE remark.

    The power of fan

    380V/50HZ/0.75KW
         (2    set)

    380V/50HZ/0.75KW
         (4 sets)

    380V/50HZ/0.75KW
         (6sets)

    Air flow of fan(m3/h)

            1500

     1500

    1500

    Fan run (r/min)

    2800

    2800

    2800

    Nozzle in stain less steel

            16 pcs

    32 pcs

    48pcs

    Wind speed(m/s)

                            >25m/s

    Noise level(dB)

                  <75dB

    HEPA FILTER

    Size(mm)

     630X630X80mm
         (2 sets)

    630X630X80mm
         (4 sets)

    630X630X80mm
         (6 sets)

    Efficiency (%)

    99.995% @ 0.3um mini-pleats HEPA Air Filter

    Air velocity

    1000(m3/h)

    Initial resistance(pa)

    <180pa

    Pre-filter

    Size(mm)

         775x380x17

    775x380x17

    775x380x17

    Efficiency (%)

     75% @ 0.5um

    75% @ 0.5um

    75% @ 0.5um

       G3

        G3

    G3

    resistance(pa)

    <30 Pa

    <30Pa

    <30 Pa

    parameter

    Power supply

     380v/50HZ 3P

    380v/50HZ 3P

    380v/50HZ 3P

     Net power(kw)

            1.5 kw

        3kw

       4.5    kw

    packing size    (mm)

    1750x1200x2250mm

    1750x2200x2250mm

    1750x3200x2250mm

    Packing    material

    Standard Export Poly wood Packing(Fumigant free material)

    Weigh

    320kgs

         650kgs

    960kgs



    / Specification


    Illustrate

    1: Explosion– Proof Control Board    2: SUS Nozzle    3: Infrared Indicator   4: Per-filter    5: Power indicator     6: Emergency switch    7: Working light    8: HEPA air filter (H13 99.995%@0.3um)    9: Interlock Door,    10: Explosion –Proof Big air blower   11: Door Closer   12: Explosion–Proof purification light


    SUS304  Explosion –Proof Air Shower Room For One Person 3



    / Product Details



    part.1
    Explosion –Proof Electric Control Box
    SUS304  Explosion –Proof Air Shower Room For One Person 4

    part.2
    Explosion –Proof purification light
    SUS304  Explosion –Proof Air Shower Room For One Person 5

    part.3
    Explosion –Proof Big Air Blower
    SUS304  Explosion –Proof Air Shower Room For One Person 6

    part.4
    Air Speed Test
    SUS304  Explosion –Proof Air Shower Room For One Person 7


    Introduce:

    Explosion-proof air shower rooms are widely used in enterprises that require high purification produce flammable and explosive materials, such as refineries, cutting-edge weapons producers, military enterprises, and aerospace industries. As used in the explosive industry and the use of volatile goods, enterprises must take into account the product features and safety of the customer workshop in the design of explosion-proof air shower rooms. All parts of the explosion-proof air shower room are all used with explosion-proof electrical appliances and lines to avoid the explosion of combustible gas and equipment in the customer's workshop.



    / Certificated

    SUS304  Explosion –Proof Air Shower Room For One Person 8

    / Our Service


    SUS304  Explosion –Proof Air Shower Room For One Person 9

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
