We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

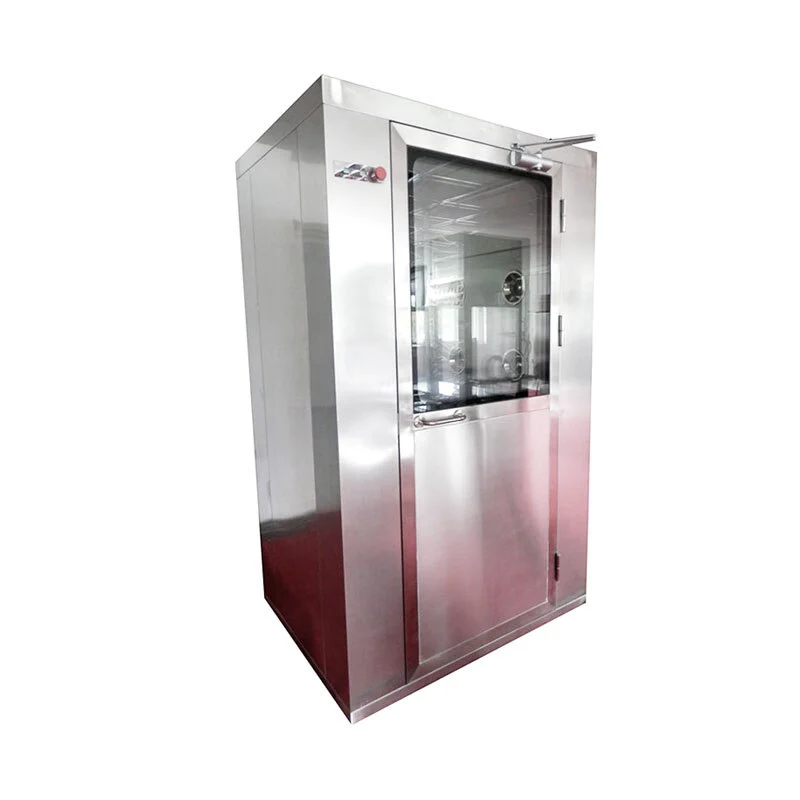

Stainless steel high efficiency cleanroom air shower with three side blowing 1
Stainless steel high efficiency cleanroom air shower with three side blowing 1

Stainless steel high efficiency cleanroom air shower with three side blowing

    oops...!

    no product data.

    Go to homepage



    Product Features
    External Material: stainless steel304 (t=1.0)
    Inside Material: stainless steel304 (t=1.0)
    External size: 1300*1000*2180mm
    Internal size: 800*930*1910mm
    Sus nozzle: 16pcs
    Blowing way: 3 side (left, right and top)
    Air speed: more than 25m/s
    Door: Electric Interlocking in both side
    Stainless steel high efficiency cleanroom air shower with three side blowing 2


    / Products Parameter


    MODEL

      HA-AS1300P1

    HA-AS1300P2

    HA-AS1300P3

    External size (mm)
         (W*D*H)

    1300x1000x2180mm

    1300x2000x2180mm

    1300x3000x2180mm

    Work zone (mm)
         (W*D*H)

    800x930x1910mm

    800x1930x1910mm

    800x2930x1910mm

    Persons per cycle

     1-2 person

    2-4 person

    3-6 person

    Material (Option)

    1:Entirety Sus304.(T=1.0/1.2/1.5mm)
    2:Entirety sus201. (T=1.0/1.2/1.5mm)
    3:External is steel with power coated,    Internal is SUS304(T=1.0/1.2/1.5mm)
    4:External is steel with power coated.    Internal is SUS201(T=1.0/1.2/1.5mm)

    Control system

    1: Control system with LED display for    the shower time.
    2: The shower time from 0-99second.    (Adjustable)
    3: Infrared ray inductor for inside    personal shower automatic.
    4: Three side blowing with Human voice    prompt system.
    5: with CE remark.

    The power of fan

    380V/50HZ/0.75KW
         (2    set)

    380V/50HZ/0.75KW
         (4 sets)

    380V/50HZ/0.75KW
         (6sets)

    Air flow of fan(m3/h)

    1500

    1500

    1500

    Fan run (r/min)

    2800

    2800

    2800

    Nozzle in stain less steel

    16 pcs

    32 pcs

    48pcs

    Wind speed(m/s)

    >25m/s

    Noise level(dB)

    <75dB

    HEPA FILTER

    Size(mm)

     630X630X80mm
         (2 sets)

    630X630X80mm
         (4 sets)

    630X630X80mm
         (6 sets)

    Efficiency (%)

    99.995% @ 0.3um mini-pleats HEPA Air Filter

    Air velocity

    1000(m3/h)

    Initial resistance(pa)

    <180pa

    Pre-filter

    Size(mm)

    775x380x17

    775x380x17

    775x380x17

    Efficiency (%)

     75% @ 0.5um

    75% @ 0.5um

    75% @ 0.5um

    G3

      G3

    G3

    resistance(pa)

    <30 Pa

    <30Pa

    <30 Pa

    parameter

    Power supply

     380v/50HZ 3P

    380v/50HZ 3P

    380v/50HZ 3P

     Net power(kw)

    1.5 kw

    3kw

    4.5    kw

    packing size    (mm)

    1350x1200x2250mm

    1350x2200x2250mm

    1350x3200x2250mm

    Packing    material

    Standard Export Poly wood Packing(Fumigant free material)

    Weigh

    320kgs

    650kgs

    960kgs



    / Specification


    Illustrate

    1: Control Board  2: Nozzle  3: Infrared Indicator  4: Per-filter  5: Power indicator  6: Emergency switch  7: Working light  8: HEPA air filter (H13 99.995%@0.3um)  9: Door, 10: Fan  11: Door Closer  12: purification light


    Stainless steel high efficiency cleanroom air shower with three side blowing 3



    / Product Details



    part.1
    Air shower Door
    Stainless steel high efficiency cleanroom air shower with three side blowing 4

    part.2
    Clean room Air shower ceiling
    Stainless steel high efficiency cleanroom air shower with three side blowing 5

    part.3
    Clean room Air shower floor
    Stainless steel high efficiency cleanroom air shower with three side blowing 6

    part.4
    Air Speed Test
    Stainless steel high efficiency cleanroom air shower with three side blowing 7


    Application

    Clean room air shower products are a kind of local cleaning equipment with strong versatility. They are installed between clean rooms and non clean rooms. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.



    / Certificated

    Stainless steel high efficiency cleanroom air shower with three side blowing 8

    Our Service:


    Stainless steel high efficiency cleanroom air shower with three side blowing 9

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
