We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

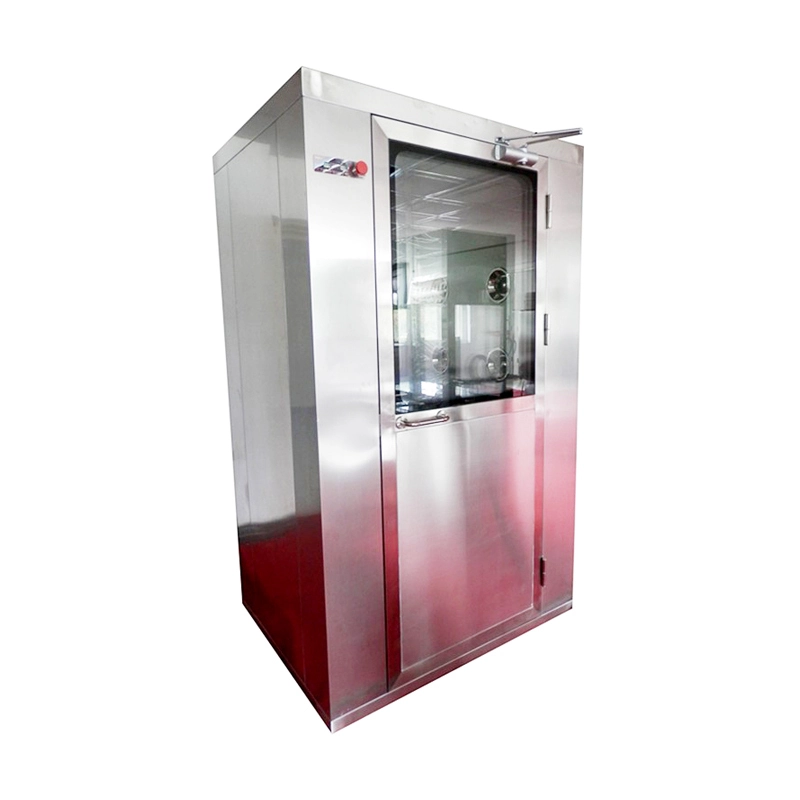

cleanroom vertical Intelligence air shower room with top side air flow 1
cleanroom vertical Intelligence air shower room with top side air flow 1

cleanroom vertical Intelligence air shower room with top side air flow

    oops...!

    no product data.

    Go to homepage



    Product Features
    Vertical air flow in top side
    External Material: stainless steel304 (t=1.0) Or steel with milk color power coated
    Inside Material: stainless steel304 (t=1.0)
    External size: 1400*1000*2180mm
    Internal size: 790*930*1910mm
    Sus nozzle: 16pcs
    Blowing way: one side (top)
    Air speed: more than 25m/s
    Door: Electric Interlocking in both side.
    cleanroom vertical Intelligence air shower room with top side air flow 2


    / Products Parameter


    MODEL

      HA-AS1400V1

    HA-AS1400V2

    HA-AS1400V3

    External size (mm)
         (WXDXH)

    1400x1000x2180

    1400x2000x2180

    1400x3000x2180

    Work zone (mm)
         (WXDXH)

    790x930x1910

    790x1930x1910

    790x2930x1910

    Persons per cycle

     1-2 person

    2-4 person

    3-6 person

    Material (Option)

    1:Entirety Sus304.(T=1.0/1.2/1.5mm)
    2:Entirety sus201. (T=1.0/1.2/1.5mm)
    3:  External is steel with power coated,    Internal is SUS304
    4:  External is steel with power coated.    Internal is SUS201

    Control system

    1: Control system with LED display for    the shower time.
    2: The shower time from 0-99second. (Adjustable)
    3: Infrared ray inductor for inside    personal shower automatic.
    4: Vertical top side blowing with Human voice    prompt system.
    5: with CE remark.

    The power of fan

    380V/50HZ/1.1KW
         (1    set)

    380V/50HZ/1.1KW
         (2 sets)

    380V/50HZ/1.1KW
         (1sets)

    Air flow of fan(m3/h)

            1500

     1500

    1500

    Fan run (r/min)

    2800

    2800

    2800

    Nozzle in stain less steel

            16 pcs

    32 pcs

    48pcs

    Wind speed(m/s)

                         >25m/s

    Noise level(dB)

               <75dB

    HEPA FILTER

    Size(mm)

     630X630X80mm

    630X630X80mm

    630X630X80mm

    Efficiency (%)

    99.995% @ 0.3um Mini-pleats HEPA air filter

    Air velocity

    1000m3/h

    Initial resistance(pa)

    <220pa

    Pre-filter

    Size(mm)

         775x380x17

    775x380x17

    775x380x17

    Efficiency(%)

     75% @ 0.5um

    75% @ 0.5um

    75% @ 0.5um

       G3

        G3

    G3

    resistance(pa)

    <30 Pa

    <30Pa

    <30 Pa

    parameter

    Power supply

     380v/50Hz

    380v/50Hz

    380v/50Hz

     Net power(kw)

            1.5 kw

      3kw

       4.5    kw

    packing size    (mm)

     1500x1200x2250

    1500x2200x2250

    1500x3200x2250

    Packing    material

    Standard Export Poly wood Packing(Fumigant    free material)

    Weigh

    320kgs

       650kgs

    960kgs



    / Specification


    Illustrate

    1: Control board   2: Infrared Indicator  3: Per-filter   4: Power Indicator   5: Emergency switch     6: Working light    7: HEPA air filter (H13 99.995%@0.3um)     8: Door      9: Fan 10: Door Closer    11:  Nozzle     12: Purification light


    cleanroom vertical Intelligence air shower room with top side air flow 3



    / Product Details



    part.1
    Clean room Air shower ceiling
    cleanroom vertical Intelligence air shower room with top side air flow 4

    part.2
    Air shower Door
    cleanroom vertical Intelligence air shower room with top side air flow 5

    part.3
    Air Speed Test
    cleanroom vertical Intelligence air shower room with top side air flow 6


    Application

    Clean room air shower products are a kind of local cleaning equipment with strong versatility. They are installed between clean rooms and non clean rooms. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.



    / Certificated

    cleanroom vertical Intelligence air shower room with top side air flow 7





    / Our Service


    cleanroom vertical Intelligence air shower room with top side air flow 8

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
