    Introduction :

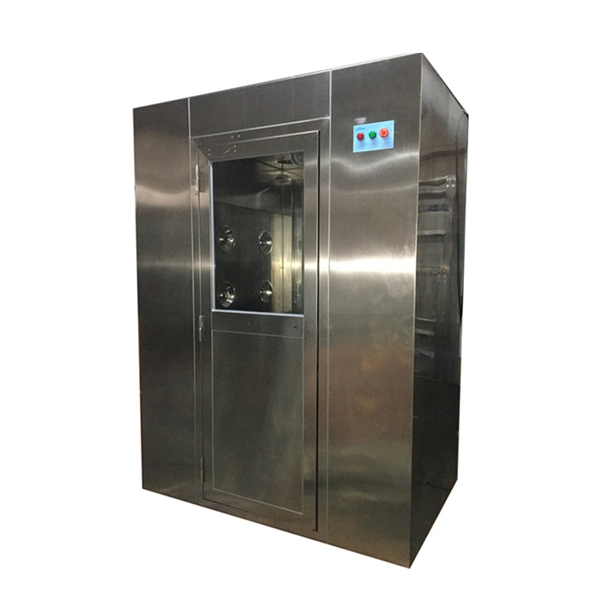

    Explosion Proof Automatic Air Shower is a highly protective purification designing to minimize hazardous substances and allergen from personnel prior to entering a cleanroom or un - infection area .
    The special focus of Explosion - proof air shower is that it selects explosion-proof components , including explosion - proof microprocessor controller panel , explosion - proof lighting , explosion - proof centrifugal fan , which can effectively reduce all types of contaminants and prevent explosion from flammable gas contacting with air .
    It is widely used in the environment where there are filled with explosive or flammable material , such as sophisticated weapon producing , aerospace industry , military enterprise , oil refinery . Electronic interlocking doors prevent unnecessary contamination inflowing in order to minimize cross-contamination between the cleanroom and the Explosion - proof air shower .


    Application fields :

    Sophisticated weapon producing , Aerospace industry , Military enterprise , Oil refinery .


    Operation features :

    1.Two level filtration system ( Pre - filter * 2 and HEPA filter * 2 ) and two explosion - proof centrifugal fan module ( rated 99.99 %  efficient  @ 0.3um ).
    2.Stainless steel have good corrosion resistance and rust resistance , meeting the requirements of various clean room .
    3.Explosion - proof control panel provides programmable control , including Human voice broadcast system , Emergency button . The emergency button shall be located inside and outside of the Explosion - proof Air Shower in a conspicuous location , which help you get rid of the trouble .
    4.The duration of Explosion Proof Automatic Air Shower shall be adjusted to 0 - 99 seconds .
    5.Electronic interlocking doors reduce contamination from the infection zone .
    6.Automatic shower and energy - efficient explosion - proof lighting set to work by infrared ray inductor , better lighting and energy .
    7.Variety of sizes and door ( equipped with half glass or full glass ) configurations . Custom sizes and configurations are also available .
    8.Economical to operate and easy to maintain .



    Stainless Steel Explosion Proof Automatic Air Shower With 3 Sides Blowing 3

    Stainless Steel Explosion Proof Automatic Air Shower With 3 Sides Blowing 4

    Specifications:


    Explosion Proof Automatic Air Shower

    Model

    HA - AS1600P1

    HA - AS1600P2

    HA - AS1600P3

    External size:(W*D*H)

    1600x1000x2180

    1600X2000X2180

    1600X3000X2180

    Internal size:(W*D*H)

    800X930x1910

    800X1930x1910

    800X2930x1910

    Goods per cycle

    1-2 persons

    2-4 persons

    3-6 persons

    Air Shower Duration

    Factory set at 15 seconds (0-99adjustable)

    Construction

    stainless steel ( 304 / 201 ), powder coated steel

    Fan Consumption

    750KW*2set

    750KW*4sets

    750KW*6sets

    Fan Air Flow

    1200m3/h

    Fan Run

    2800r/min

    SUS Nozzle

    16pcs

    32pcs

    48pcs

    Wind Speed(m/s)

    25-30m/s

    Noise Level

    75dB

    LED

    20W*1

    20W*2

    20W*3

    HEPA Filter

    Size

    595x595x80(Mini- pleat HEPA filter)

    Efficiency

    99.995%@0.3um

    Resistance

    220pa

    Pre-Filter

    Size

    785x385x21

    Efficiency

    75%@5um

    Resistance

    30Pa

    Electrical

    Power

    380V/50HZ or 60HZ

    Quality guarantee

    12 months


    Available Selection:

    1.Construction : (T = 1.0mm / 1.2mm / 1.5mm)
    (1) Stainless steel ( 304 / 201 )
    (2) Powder coated steel

    2.Door :
    (1) Single- door, including horizontal sliding door and 90 swing door
    (2) Double-door, including horizontal sliding door and 90 swing door
    (3) Vertical roll-up door

    3.Glass :
    (1) Organic class or Tempered glass
    (2) Half or Full

    4.Additional configuration :
    (1) Iron Ant- static Device
    (2) Ultraviolet Lamp
    (3) Automatic door Device
