We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

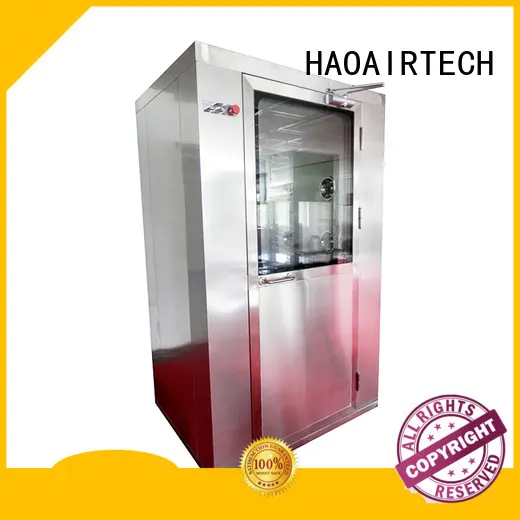

HAOAIRTECH fast rolling air shower clean room with stainless steel for large scale semiconductor factory
1. clean room design is a new type of air shower clean room made of advanced materials.
2. The quality and performance of this product conform to industrial and international standards.
3. All the features of this product guarantee an image true to the projected source for all viewers, regardless of their seating position.
4. The product plays an indispensable role in modern life or work. It would become an essential part of people's life or work by improving overall efficiency.
Big air blowing fan is explosion-proof
Purification light is explosion –Proof
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 1600*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
MODEL | HA-AS1600P1 | HA-AS1600P2 | HA-AS1600P3 | |
External size (mm) | 1600x1000x2180mm | 1600x2000x2180mm | 1600x3000x2180mm | |
Work zone (mm) | 800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1:Entirety Sus304.(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
Air velocity | 1000(m3/h) | |||
Initial resistance(pa) | <180pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1750x1200x2250mm | 1750x2200x2250mm | 1750x3200x2250mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Illustrate
1: Explosion– Proof Control Board 2: SUS Nozzle 3: Infrared Indicator 4: Per-filter 5: Power indicator 6: Emergency switch 7: Working light 8: HEPA air filter (H13 99.995%@0.3um) 9: Interlock Door, 10: Explosion –Proof Big air blower 11: Door Closer 12: Explosion–Proof purification light
Introduce:
Explosion-proof air shower rooms are widely used in enterprises that require high purification produce flammable and explosive materials, such as refineries, cutting-edge weapons producers, military enterprises, and aerospace industries. As used in the explosive industry and the use of volatile goods, enterprises must take into account the product features and safety of the customer workshop in the design of explosion-proof air shower rooms. All parts of the explosion-proof air shower room are all used with explosion-proof electrical appliances and lines to avoid the explosion of combustible gas and equipment in the customer's workshop.
/ Our Service
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. produces the high quality air shower clean room till now.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has professional R&D team and management team, and currently has several national patents.
3. HAOAIRTECH enjoys a high reputation in air shower industry for its tenet of clean room design . Get quote! Guangzhou HaoAir Purification Technology Co.,Ltd. adheres to the faith of air shower tunnel during the development of company. Get quote!
Full stainless steel cleanroom Air show/Automatic Air shower
KB-1C Double person-Single side Air shower
1. control system run automatically, the two doors interlock with photoelectric sensor
(One door in open state, the other door must in close state. If enter air shower, the system will shower automatically by photoelectric sensor)
2. Air shower time from 0 to 99 seconds can be adjustable
3. high quality cold steeling rolling plate, surface static spraying plastic
4. door, bottom-board, nozzles are used of stainless steel.
Optional accessory:
1.Automatic door by photoelectric sensor ( when person enter air shower, the door will open automatically, go out air shower, the door will be closed automatically.)
3. material:cold-rolled steel plate / all stainless steel air shower / just stainless steel inside
4. Common fluorescent lamp / UV Sterilizer lamp
Air shower material
All SUS304 stainless steel;
Air shower type
people shower
Model/Index Number | KB-1B(sus304) | KB-1A (sus304) | KB-1C(sus304) |
Numble | Single -single | Single-double | Double-single |
Nozzle number | 6 | 12 | 9 |
Diameter of nozzle | diameter 30mm | ||
Caliber of nozzle | 15-20m/s | ||
Efficiency of filter | granularity is less than 0.5μm, dust must be 99.99%. (sodium flame) | ||
Chassis | SUS304 Stainless steel plate | ||
Air shower room material | SUS304 | ||
Sizeof air shower area (mm) | 750×750×1950 | 750×750×1950 | 750×1600×1950 |
Size of air shower (mm) | 1200×800×2050 | 1550×900×2050 | 1550×1600×2050 |
Power | AC 3N 380V 50Hz | ||
Max. power (W) | 550 | 1100 | 2200 |
Weight(kg) | 200 | 250 | 500 |
Pharmaceutical Air Shower For modular Clean room
