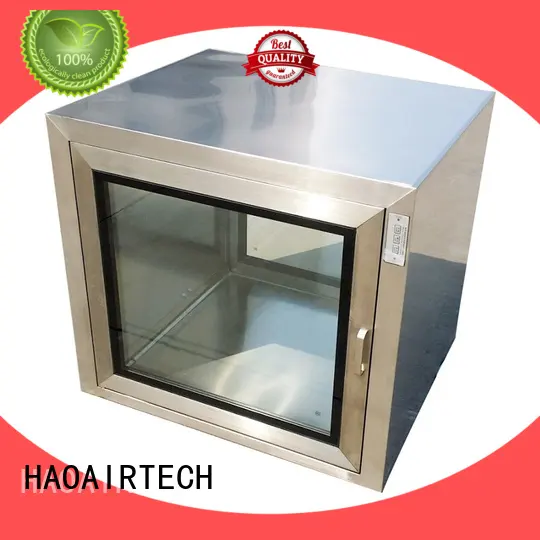

HAOAIRTECH electronic pass box with laminar air flow for hvac system1
1. Compared to the traditional ones, the design of HAOAIRTECH pass box controller is more innovative and appealing.
2. The product has better performance and stability comparing with other brands.
3. Quality guarantee plans and activities are developed to prevent nonconformities.
4. The product is sold in the global market and has broad market potential.
5. This product has many excellent properties and can be widely used.
External size: 800*670*690mm
Internal size: 600*600*600mm
External Material: stainless steel304 (t=1.2)
Inside Material: stainless steel304 (t=1.2)
Double layer vacuum glass
Both side door is inlaid type
Locker: software computer interlocking
MODEL | HA-SPB500 | HA-SPB600 | HA-SPB700 |
External size (mm) | 700x570x590mm | 800x670x690mm | 900x770x790mm |
Work zone (mm) | 500x500x500mm | 600x600x600mm | 700x700x700mm |
Material （Option） | 1: Entirety Sus304.(T=1.2/1.5mm) | ||
Control system | 1: Both door is software computer control board | ||
UV light | 1 PCS | ||
Power supply | 220v/50HZ | ||
packing size (mm) | 800x870x850mm | 1000x870x940mm | 1100x970x1050mm |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Illustration
1: Computer software control board 2: Door handle 3: Double layer glass door 4: UV light
Introduce
The static pass box is a kind of auxiliary equipment in clean room. It is mainly used in the transmission of small pieces goods between clean area and clean area, clean area and unclean area, so as to reduce the clean room door open time and reduce the clean room pollution to the lowest level, The pass box is made of stainless steel plate, smooth and clean. The both doors are interlinked, effectively preventing cross contaminated, electronic or mechanical interlocking devices installed , and fixed with ultraviolet lamps so that eliminate the bacterial infection
/ Certificated:
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is highly praised for the ability in R&D and manufacturing of pass box controller . We have built our reputation by quality.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has sophisticated production experience for mass production of pass box .
3. We want to bring high-quality products and services to our customers. We will address the challenges of a changing market quickly and never compromise on quality. As a company that operates around the globe, we are committed to observing high ethical standards in all of our business dealings and being responsible for our stakeholders. We keep up with the rapid changes in the modern age, maintaining the core values and strive to provide the best service to our customers. Ask online!
Pass box as an auxiliary device of a clean room, mainly used to deliver small objects between clean area and clean area , unclean area and clean area . In order to reduce doors opening times of clean room, to mixmum reduce the pollution of the clean area.
Parameter:
Outer Size: 800W* 700D* 800H(mm)/ 1000W*900D* 1000H(mm)
Inner Size: 600W*600D* 600H(mm)/ 800W*800D* 800H(mm)
Features:
1.Cold steel material or SUS304
2.The internal circular plate chamfering processing, no dead angle
3.Embedded ultraviolet germicidal lamp on top
4.Two-door for large angle square window
5.Double hollow toughened glass observation window
6.Soft contact control switch, microcomputer program
7.Electronic interlocking system
8.With the power indicator light
The structure parts:
1. Panel style:
Metal-face polyurethane core board,
Metal-face rockwool core board (widely used),
Metal-face polystyrene core board (without fire proof),
Metal-Face Honeycomb Core Board,
Metal-Face Plastered Core Board (widely used for ceiling),
Metal-face glass-magnesium core board.
Panel thickness: 50mm and 100mm
Panel Height: according to customer request
2. Door shape and window shape and quantities
3. Ornament material: circle 50 degree, 75 degree, alloy aluminum, silver color or painted color.
4. Layout drawings
5. The house structure: steel structure or ferroconcrete
Air conditioner and air fan parts
1. The technical height(the height between ceiling to girder lower point)
2. Air feeding duct and air sucking duct direction and arrangement
3. The clean grade request, temperature and humidity request, pressure balance request, wind speed request.
4. Air exhaust request and air exhaust quantity request
5. Workers quantity and equipments heat generating amount
6. Air conditioner or air fan brand and style request:
Water cooling or fan cooling?
Equipment parts:
1.The air shower room specification and material request.
2.The pass box specification and material, technical request.
3.Laminar flow specification and request
4.Weight room specification and request
5. FFU specification and request
Electricity Parts
1.Clean room illumination request, clean light style
2.Total power
3. Control style (full auto/manual)
4. Wire hidden style (pretreatment/hidden in sandwich board)
Floor parts:
1.The cement basic (the cement floor intension and flat degree)
2.Floor request (PVC/roller/plate static proof request, epoxy color)
As an auxiliary device of a clean room, pass box is mainly used to deliver small objects between clean area and clean area, unclean area and clean area. In order to reduce door's opening times of clean room, it is suggested to reduce the pollution of the clean area.
Purifying transfer window may transfer materials, equipment and tools under the protection of Class A environment. Materials, equipments or tools which have been purified may be delivered to the aseptic area, mainly from Class C area to Class B area. As to user's demand, the purifying transfer window can be equipped with UV germicidal lamp or ozone generator sterilization system.
