We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

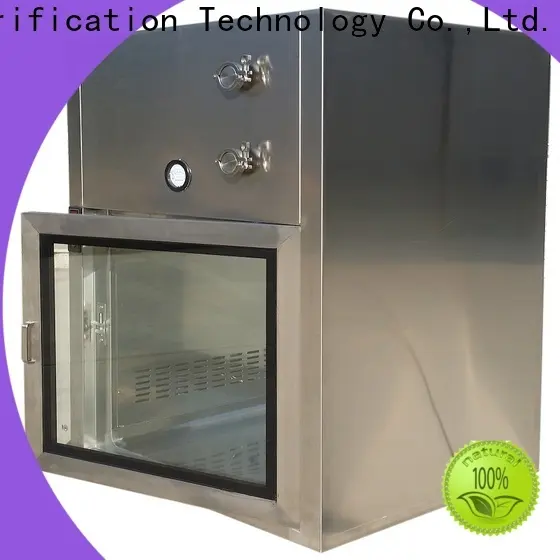

HAOAIRTECH electronic pass box with baked painting for hvac system 1
HAOAIRTECH electronic pass box with baked painting for hvac system 2
HAOAIRTECH electronic pass box with baked painting for hvac system 1
HAOAIRTECH electronic pass box with baked painting for hvac system 2

HAOAIRTECH electronic pass box with baked painting for hvac system

Brand:
HAOAIRTECH
Model number:
HA-DPB
Material:
Stainless steel304/316
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
Huangpu
Delivery time:
10 working days
MOQ:
10sets
Country of Original:
china
Supply ability:
100set/month
Payment term:
100% T/T in advance, or 100% LC at sight
Application:
cleanroom
Inquiry
Company Advantages
1. HAOAIRTECH pass box goes through reasonable designing. Human factors data such as ergonomics, anthropometrics, and proxemics are well applied in the design phase. The product dedicates to keeping a cleanliness class of 10000-300000
2. All employees in Guangzhou HaoAir Purification Technology Co.,Ltd. will integrate culture into their work and ensure the company's continued success. The product will greatly improve the quality of factory-made products
3. The product has excellent and flexible temperature adaptability. It is sintered under high temperature which is up to more than 2500 degrees Fahrenheit. It highly conforms to the dustless workshop management standard
4. The product is capable of saving tons of paper because it is reusable for thousands of times, which helps protect the environment. The product can maintain high air quality of the factory

Cleanroom Dynmic Pass Box


 Product Characteristic :


 1: Statically and dynamically balanced motor blower assembly.

  2:Microprocessor based digital LCD Controller displays all safety information on one screen easy monitoring all parameters.

 3:  Electronic interlocking system is reliable maintenance free fail safe and maintain clean room integrity by preventing both door from being opened at the same time.

   4: Powder coat inhibits microbial growth on external surface prevents contamination and improves safety.

  5: The full body of pass box is constructed of SS 304 which is maximum chemical resistance. Internal coving for easy clean,

  6:bottom with heavy roller base.; This can be easily installed on the wall between the classified room and unclassified room.

   7:Double skin door with glass vive panel ISO class 5 air cleanliness HEPA filter 99.999% down to 0.3 micron Fluorescent light (interlocked with door)

   8:When booth door closed both are electric magnet locked, for open press touch screen to release door at a time only one door opened.;

  9: Audio/visual indication for material is kept inside the pass box.

  In close condition of both doors UV light will be on, when open any one door UV will off and FL will on.



products name  Cleanroom Dynamic Pass Box
 Material Stainless Steel 304 t=1.2mm
Frequency50 Hz/60hz
ColorCustomized
PhaseSingle/or two
Is It LockableLockable
WindowTempered Glass
HEPA filter99.99%@0.3um
Filter size 595x595x96mm
DOP Test report  2 pcs


HAOAIRTECH electronic pass box with baked painting for hvac system 3

Products Parameter

MODEL

  HA-DPB500

HA-DPB600

HA-DPB700

External size (mm)

(W*D*H)

700x570x1050mm

800x670x1150mm

900x770x1250mm

Work zone (mm)

(W*D*H)

500x500x500mm

600x600x600mm

700x700x700mm

Purification rank

Class 100

Material

Option

1: Entirety Sus304.(T=1.2/1.5mm)

2: Entirety sus201. (T=1.2/1.5mm)

3:External is steel with power coated,   Internal is SUS304(T=1.2/1.5mm)

4: External is steel with power coated.   Internal is SUS201(T=1.2/1.5mm)



Control system

1: Gel Sealant mini-pleats HEPA air   filter so that pass the DOP test without any problem.

2: Pass Box inside bottom corner is round   shape without any dust

 accumulation .

3: Double layer vacuum glass have very   good appearance

4: Software computer interlocking door   with long time using life

5: Air speed is   0.45m/s adjustable

UV light

                    1 PCS

Power supply

                   220v/50HZ

packing size   (mm)

800x870x1300mm

1000x870x1400mm

1100x970x1500mm

Packing   material

Standard Export Poly wood Packing(Fumigant free material)





Company Features
1. Over the years, Guangzhou HaoAir Purification Technology Co.,Ltd. has been maintaining its dominance in the market. We are famous for our capacities of R&D, production, and marketing of dynamic box .
2. pass box is more competitive for its high quality in this industry.
3. We are committed to improving our brand recognization. By demonstrating a positive image to clients and partners, we actively partake in various business activities to make our brand known more by people.
