We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

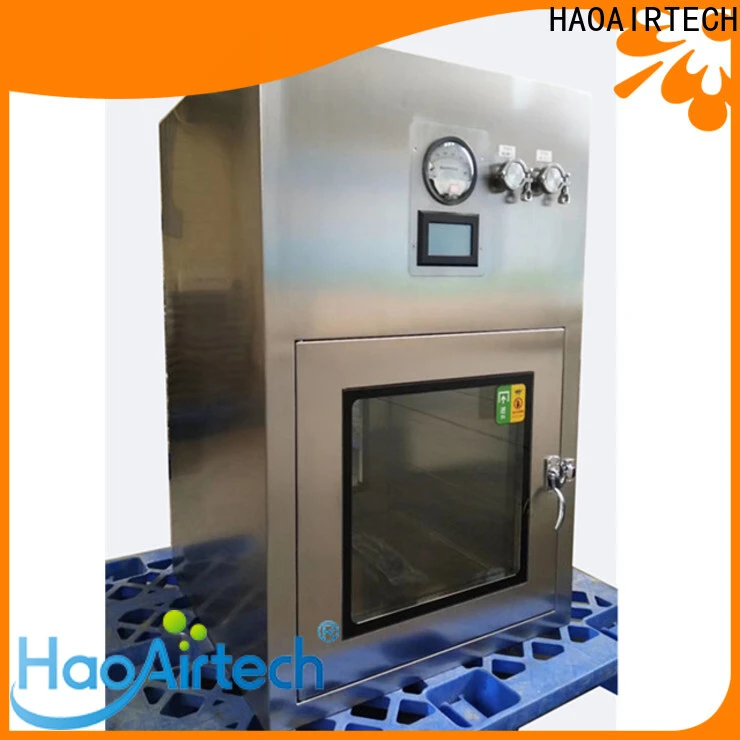

HAOAIRTECH dynamic pass box with conveyor line for hvac system 1

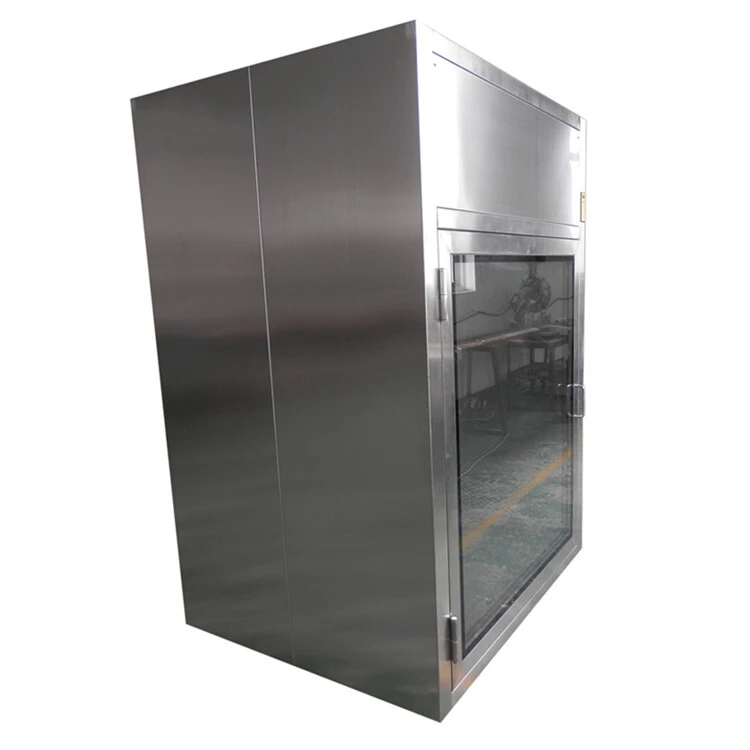

HAOAIRTECH dynamic pass box with conveyor line for hvac system 2
HAOAIRTECH dynamic pass box with conveyor line for hvac system 1
HAOAIRTECH dynamic pass box with conveyor line for hvac system 2

HAOAIRTECH dynamic pass box with conveyor line for hvac system

Brand:
HAOAIRTECH
Model number:
HA-DPB
Material:
Stainless steel304/316
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
Huangpu
Delivery time:
10 working days
MOQ:
10sets
Country of Original:
china
Supply ability:
100set/month
Payment term:
100% T/T in advance, or 100% LC at sight
Application:
cleanroom
Inquiry

Dynamic Pass Through Boxes



   TECHNICAL SPECIFICATIONS:


       Self-supporting structure made of stainless steel AISI 304 Scotch Brite finished

  •  Electrically interlocked doors with proper gaskets

  •  Traffic light for door status

  •  Control panel

  •  Differential pressure gauge

  • HEPA filter grade F-14

  • Motor fan

  • Working area classification ISO 5


HAOAIRTECH dynamic pass box with conveyor line for hvac system 3

 Product Characteristic :



dynamic pass through box can easily be installed between two different classified areas/rooms for material pass through.

The two doors are opened and interlocked at the same time to avoid simultaneous opening and a traffic light on both sides shows door status.
The pass box is entirely made of AISI304 stainless steel with a class B work chamber, compliant with cGMP Annex I, ensured by HEPA H14 filters.
At rest the electric lock doors are usually open. The doors are interlocked, therefore at the opening of one of them, the other one is blocked.

Pressing the button on the chosen side of the box will open the corresponding door, consequently the door will be locked.


Products Parameter

Product Dynamic Pass Through Box
ConstructionStainless Steel 304 / 316 / 316L
DoorSolid door w/ mechanical or electrical interlocked
WindowTempered Glass
UV LampOptional
HEPA FilterOptional
Suction FilterStainless Steel w/ 95% down to 5 µ Efficiency (EU-4 Rating.)
Supply FilterAluminum w/ 99.999% down to 0.001 µ (EU-14 Rating.)
BlowerBranded Heavy duty
Noise<78
Power Supply220 / 230 Volts
AccessoriesHour meter, Magnehelic / Minihelic Pressure Gauge
ElectricalsHour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps
Air Shower FacilityOptional
CleanlinessClass 100
CertificationsCE and ISO










Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
