HAOAIRTECH cleanroom pass box with laminar air flow for hvac system

Company Advantages
1. Different shapes and different colors for cleanroom pass box can be freely chosen by our customers. It acts as an indispensable part in a dustfree production line
2. It is absolutely a must-have appliance for people. It is easy to maintain, saving people lots of endeavors on cleaning and maintaining. The product is widely used for high-end clean rooms of various manufacturers
3. With our extensive industry expertise in this field, this product is produced with the best quality. The product can maintain high air quality of the factory
4. Products are tested by our quality experts in strict accordance with a series of parameters to ensure the quality and performance. The product dedicates to keeping a cleanliness class of 10000-300000
5. Strict quality control process ensures zero defects and consistent quality. With the shell galvanized, the product is crack-resistant and wear-resistant

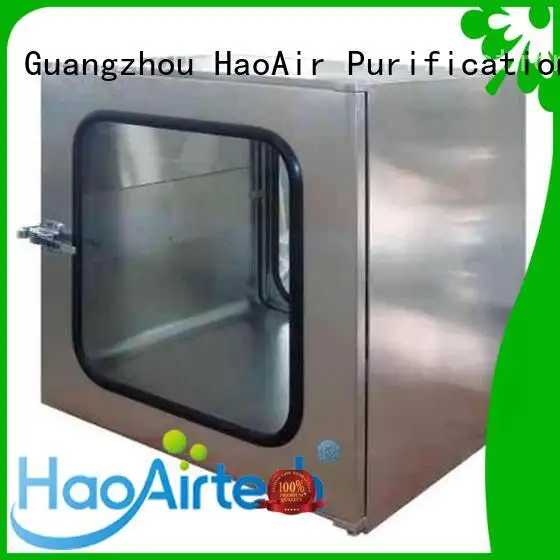

SS304/ Coldrolled Steel with Baked Painting Cleanroom Pass Boxes

Cleanroom Pass Boxes Introduction:

Pass boxes are the perfect tool for transporting items in and out of cleanrooms. These boxes are widely used in laboratories, hospitals, pharmaceutical and light-industrial environments. They not only offer full protection but also facilitate transportation of products.

Cleanroom Pass Boxes Features:

1.Mechanical interlock is reliable, maintenance-free, fail safe and maintains cleanroom integrity by preventing both doors from being opened at the same time.

2.All HaoAir products are manufactured for the most demanding controlled environment applications.

3.All components are designed for maximum chemical resistance and enhanced durability for a long service life.

4.The main body of the pass box is constructed of industrial-grade electrogalvanized steel.

5.The pass box base surface is constructed of stainless steel, making the work zone easy to clean.

6.Acrylic doors provide a clear view of the internal chamber.

7.Standard 1 year warranty.

The Pass Box is approval by CE and RoHS certificate.

Customer’s design is available.

Cleanroom Pass Box Specification:

Cleanroom Pass Box HA-PB Series
Model	HA-PB500	HA-PB600	HA-PB750
Outer Size(mm) (WXDXH)	660x500x590	760x600x690	910x750x840
Inner Size(mm)(WXDXH)	500x500x500	600x600x600	750x750x750
Construction	1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting. 2. External is steel with power coated, internal is SUS304. 3. External is steel with power coated, internal is SUS201. 4. External is steel with power coated, internal is SUS316.
Thickness	1.0/1.2/1.5mm
Toughened Glass Window	Double layer vacuum glass.
Four Corner	Four side is inner arc without any blind angle.
Interlock	Mechanical or electric interlocking.
Gasket	PU foam gasket
Accessories	1. Interphone 2. UV light 3. Roller
Power	220V/50Hz or 60Hz

Clean room Pass Boxes Application:

Cleanroom pass box details:

Company Features
1. The influence of Guangzhou HaoAir Purification Technology Co.,Ltd. in the industry of cleanroom pass box is great. With the experienced team who are experienced in manufacturing pass box manufacturers , HAOAIRTECH is able to provide better products.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has successfully developed pass box clean room , including Pass Box.
3. We only provide the best dynamic pass box with high quality cleanroom pass through box . Guangzhou HaoAir Purification Technology Co.,Ltd. takes customer's satisfaction as our ultimate goal. Inquiry!
