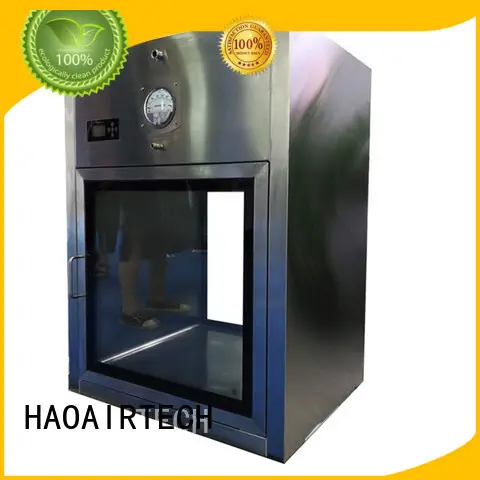

HAOAIRTECH cleanroom pass box with conveyor line for clean room purification workshop

Company Advantages
1. HAOAIRTECH wall pass through box is processed by mature dyeing technology. We dye a fabric/yarn with a direct anion dye completely immersed in a water dye. The product is reputed for its long service life
2. This product is easy to use. It is designed with international standard socket, and can be inserted and removed multiple times. The product will greatly improve the quality of factory-made products
3. The product does not have appearance defections. It has been inspected under FZ/T 01075-2010 which aims to check its seams, line, stains, or spots. The product prevents airborne particles and microbes from entrance
4. This product has great resistance to skidding. The extent of friction or the coefficient of friction between its material and various types of floors are relatively high. It is certified by SGS corporation and reaches RoHS standard
5. The product is anti-bacterial. Made of harmless and non-irritant materials, it is skin-friendly and does not prone to cause skin allergies. The product can increase the rate of finished products

TECHNICAL SPECIFICATIONS

• Self-supporting structure made of stainless steel AISI 304 Scotch Brite finished

•  electrically interlocked doors with proper gaskets

•  traffic light for door status

•  control panel

• differential pressure gauge

• HEPA filter grade F-14

• Motor fan

• Working area classification ISO 5

 Product Characteristic :



 Clean Room Dynamic Pass Boxes are designed in conformation to the international standards and are used for transferring

the material from and into the classified clean room without contaminating the air of clean room.

In the process, room door is not required to open. These can be easily installed on the wall between the classified room and unclassified room.

Products Parameter：

Air cleanliness :	ISO Class 5 / Class 100 / M 3.5 AREA
Air Velocities :	0.45 ± 0.05 mps (90 ± 20 FPM)
Air Flow :	Horizontal / Vertical
Noise Level :	Less than 65 dB
Vibration Level :	Minimum
POWER SUPPLY :	230V AC, 1-Ø, 50HZ
MOC :	GI Powder Coated / SS-304 / SS-316 / Combination
Door :	Swing Type Double Door (Double skinned) with View Panel with SS Hinges & ‘D’ Handle
	Internal Coving for easy cleaning
	Two Stage filtration
	EU7 - Intermediate Filter (95% down to 3 micron)
	EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
	Fluorescent Lights (interlocked with Door)
	UV Light (interlocked with Door)
Differential Pressure Gauges :	01 No. (HEPA Filter)
Door Opening With Solid State Electronic Inter Locking Mechanism	When both door closed; both are elec. Magnet locked; For open press touch screen to release the door
	At A Time Only One Door Opened
	Audio / Visual Indication for material is kept inside the pass box
	In close condition of both door : UV Light will be on,
	When open any one door : UV will off and FL will on
DOP Port
DQ, IQ, OQ, PQ Documentation
