We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

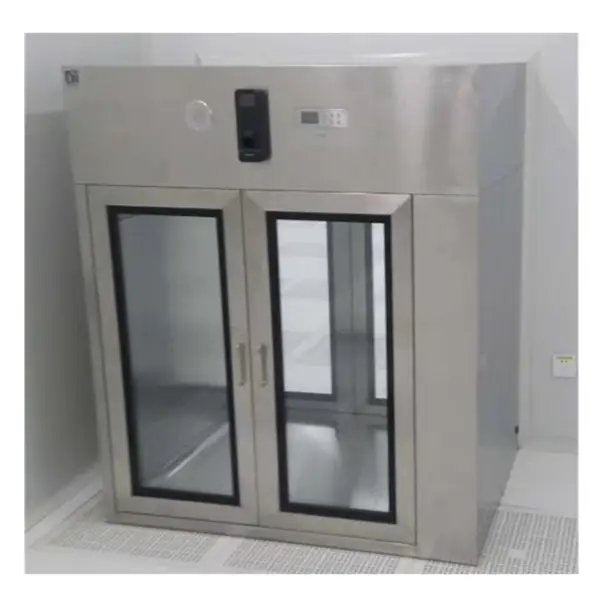

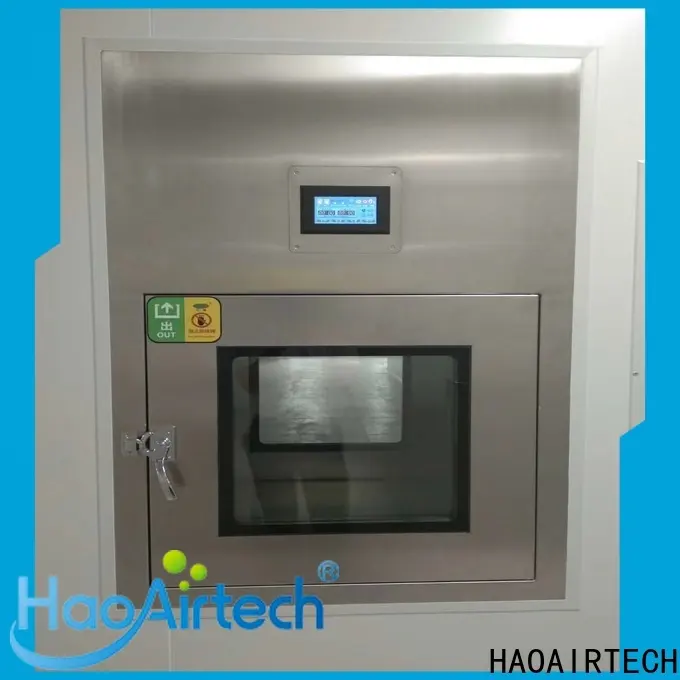

HAOAIRTECH cleanroom pass box with baked painting for hvac system2 1
HAOAIRTECH cleanroom pass box with baked painting for hvac system2 2
HAOAIRTECH cleanroom pass box with baked painting for hvac system2 1
HAOAIRTECH cleanroom pass box with baked painting for hvac system2 2

HAOAIRTECH cleanroom pass box with baked painting for hvac system2

Inquiry

Feature :

  • Precision designing and finish.

  • Choice of mechanical or electrical interlocked.

  • Floor and wall mounted design.

  • Maximum chemical resistance construction.

  • Stainless Steel suction filter w/ 95% down to 5 µ Efficiency (EU-4 Rating.).

  • Branded heavy duty Blower.

  • Aluminum Supply filter w/ 99.999% down to 0.001 µ (EU-14 Rating.).

  • Buzzer indication to know the material is kept inside.

  • Indicating lamp to know the door lock-unlock condition.

  • Low Vibration and Noise.

  • Fully custom designed.


 Product Characteristic :



           Stainless Steel Dynamic Pass Box  Equipment Are Made Of Powder Coated High Grades Stainless Steel (304 / 316 / 316 L)

With International Quality Standard Components Including Mechanically Or Electrically Interlocked Doors And UV Light.

       These Dynamic Pass Box Equipment Are Equipped With Suction Filter Made Of Stainless Steel With 95%

Down To 5µ Efficiency (EU-4rating) And Supply Filter Made Of Aluminum With 99.999% Down To 0.001 Μ (EU-14 Rating.)

     An Interlock Guard System Controls The Inlet And The Outlet Of PASS BOX Not Be Opened At The Same Time,

In Order To Prevent The Cross Contamination.

HAOAIRTECH cleanroom pass box with baked painting for hvac system2 3



Products Parameter

MODEL

  HA-DPB500

HA-DPB600

HA-DPB700

External size (mm)

(W*D*H)

700x570x1050mm

800x670x1150mm

900x770x1250mm

Work zone (mm)

(W*D*H)

500x500x500mm

600x600x600mm

700x700x700mm

Purification rank

Class 100

Material

Option

1: Entirety Sus304.(T=1.2/1.5mm)

2: Entirety sus201. (T=1.2/1.5mm)

3:External is steel with power coated,   Internal is SUS304(T=1.2/1.5mm)

4: External is steel with power coated.   Internal is SUS201(T=1.2/1.5mm)



Control system

1: Gel Sealant mini-pleats HEPA air   filter so that pass the DOP test without any problem.

2: Pass Box inside bottom corner is round   shape without any dust

 accumulation .

3: Double layer vacuum glass have very   good appearance

4: Software computer interlocking door   with long time using life

5: Air speed is   0.45m/s adjustable

UV light

                    1 PCS

Power supply

                   220v/50HZ

packing size   (mm)

800x870x1300mm

1000x870x1400mm

1100x970x1500mm

Packing   material

Standard Export Poly wood Packing(Fumigant free material)
