We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH cleanroom pass box with arc design gmp standard for hospital2 1
HAOAIRTECH cleanroom pass box with arc design gmp standard for hospital2 2
HAOAIRTECH cleanroom pass box with arc design gmp standard for hospital2 3
HAOAIRTECH cleanroom pass box with arc design gmp standard for hospital2 1
HAOAIRTECH cleanroom pass box with arc design gmp standard for hospital2 2
HAOAIRTECH cleanroom pass box with arc design gmp standard for hospital2 3

HAOAIRTECH cleanroom pass box with arc design gmp standard for hospital2

Brand:
haoairtech
Model number:
HA-DPB600
Material:
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
OEM /ODM:
OEM /ODM
Certificated:
CE
Start port:
GUANGZHOU
Delivery time:
10 days
MOQ:
1 set
Inquiry
Product Name
Haoairtech
Other Name
pass box
Guarantee Time
12 month

Custom static pass box for cleanroom


Introduction:


The pass box is a device that prevents contamination when the indoor and outdoor output items are clean.

This product is divided into three categories: electronic interlock transfer window, mechanical interlock transfer window and self-net transfer window:

Electronic interlock transfer window, opening and interlocking of window door with electronic interlocking device, ultraviolet lamp in the window;

Mechanical interlock transmission window, opening and interlocking of window door with mechanical interlocking device, ultraviolet lamp in the window,Self-net transmission, window door The use of electronic interlocking means to open and chain, the window is equipped with ultraviolet light, fan and high-efficiency filter and other purification devices.


Working principle of pass box



1. Mechanical interlocking device: The internal interlocking is realized in the form of a machine. When one door is opened, the other door cannot be opened. The other door must be closed before the other door can be opened.



2. Electronic interlocking device: The internal use of integrated circuits, electromagnetic locks, control panels, lights and other interlocking, when one of the doors is open, the other door open indicator light is off, to inform this door can not be opened, while electromagnetic Lock action to achieve interlocking. When the door is closed, the other electromagnetic lock starts to work and the indicator lights up, indicating that the other door can be opened.





Products Parameter:

MODEL

HA-DPB600

External size (mm)
(W*D*H)

760x600x690mm

Work zone (mm)
(W*D*H)

600x600x600mm

Purification rank

Class 100

Material
(Option)

1: Entirety Sus304.(T=1.2/1.5mm)
2: Entirety Sus201.(T=1.2/1.5mm)
3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm)
4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)

Control system

1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem.
2: Pass Box inside bottom corner is round shape without any dust
accumulation .
3: Double layer vacuum glass have very good appearance
4: Software computer interlocking door with long time using life
5: Air speed is 0.45m/s adjustable

UV light

1 PCS

Power supply

220v/50HZ

Packing material

Standard Export Poly wood Packing(Fumigant free material)

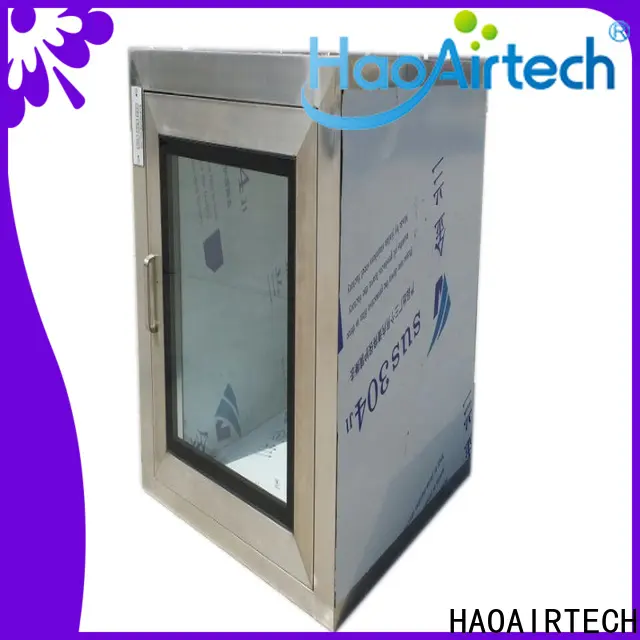

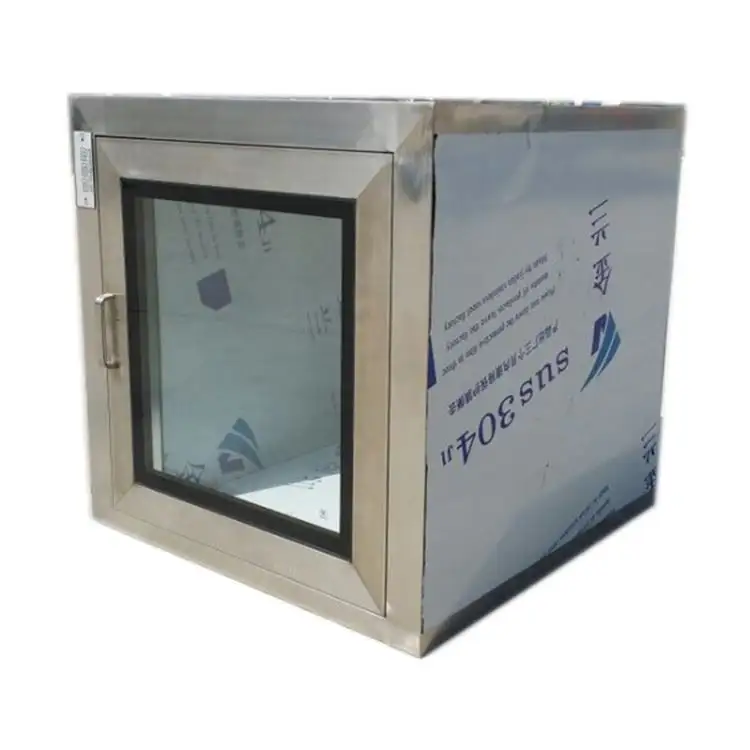

Pass box outlook:

pass box4


pass box a  (1)

IMG_201803





































Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
