HAOAIRTECH cleanroom pass box embedded lamps for cargo

Company Advantages
1. HAOAIRTECH dynamic pass box validation is innovatively designed by our experienced designers. Automatic operation is the highlight of the product
2. It is the best tool for advertising and promotion. People can be completely confident and proud to promote their products with this display. It highly conforms to the dustless workshop management standard
3. Strict quality control system is the guarantee of product quality. The product's rigid frame forestalls shrinking or bending
4. The quality inspection is a necessity for this high quality product. The product dedicates to keeping a cleanliness class of 10000-300000
5. This product has long-lasting performance and strong usability. The product can increase the rate of finished products

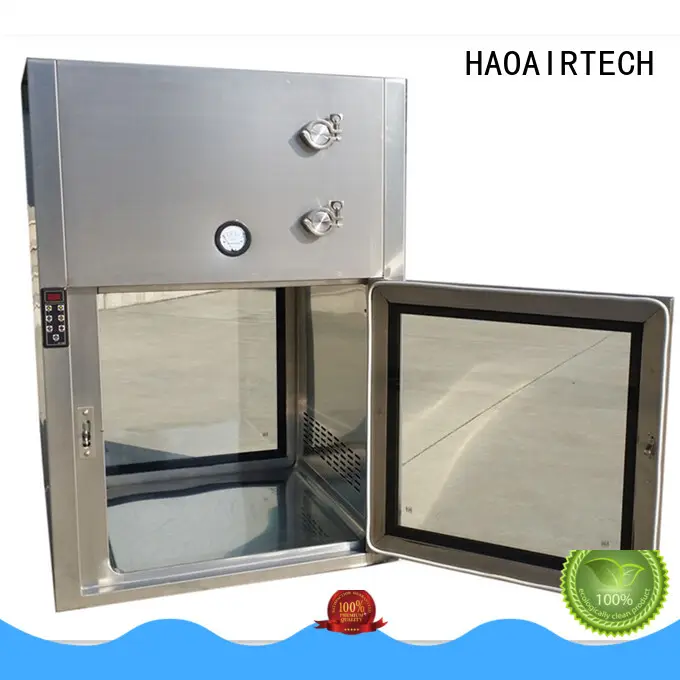

High Performance SUS304/SUS316 Clean Room Dynamic Pass Box

Dynamic Pass Box Introduction:

The pass box is a device to keep the two areas at different grade from cross contaminants from one space to another during product or tool transfer. This is a safe and effective solution since they can keep the materials from contamination within a controlled environment. It can also be used to protect the materials from external contamination.

Dynamic Pass Box Features :

1.Small sized high static Turbo blower can generate the high speed air so as to eliminate the chance of contamination in the Clean Room.

2.It is able to add inter-com, pressure differential gauge, PAO port, and germicidal lamp.

3.The construction material can be SUS or SGLC materials.

4.It is time saving and enables the convenient cargo transfer.

5.All the sizes can be customized.

The Dynamic Pass Box is approval by CE and RoHS certificate.

Customer’s design is available.

Clean Room Dynamic Pass Box Specification:

Clean Room Dynamic Pass Box HA-DPB Series
Model	HA-DPB500	HA-DPB600	HA-DPB700
Outer Size(mm) (WXDXH)	700x570x1050	800x670x1150	900x770x1250
Inner Size(mm)(WXDXH)	500x500x500	600x600x600	700x700x700
Construction	1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting. 2. External is steel with power coated, internal is SUS304. 3. External is steel with power coated, internal is SUS201. 4. External is steel with power coated, internal is SUS316.
Air Velocity(m/s)	0.45m/s (adjustable)
HEPA Efficiency	99.995%@0.3um
HEPA Filter Type	Mini-pleats Gel Sealant HEPA Filter
Test Port	External PAO/DOP test port
Magnehelic	1 set
Inner bottom	Arc Shaped
Interlock	Micro-computer interlock
Power	150W-350W, 220v/50Hz

Clean Room Dynamic Pass Box Details:

Clean Room Dynamic Pass Box Application:
