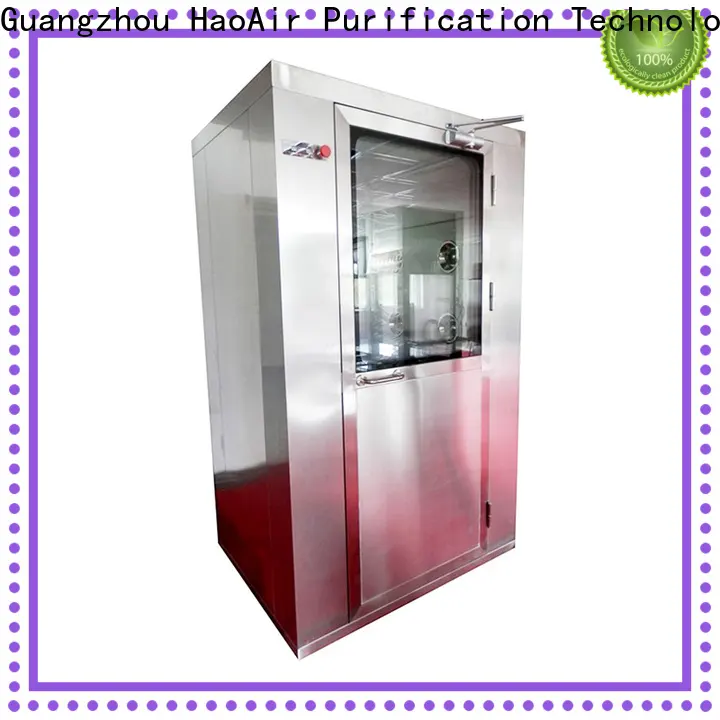

HAOAIRTECH air shower room with automatic swing door for ten person
1. HAOAIRTECH air shower manufacturer in india is manufactured throughout a series of production processes which include raw material extraction and surface treatment that meets the hygiene requirements of the sanitary ware industry. The product prevents airborne particles and microbes from entrance
2. Guangzhou HaoAir Purification Technology Co.,Ltd. will arrange delivery on due time. The product is widely used for high-end clean rooms of various manufacturers
3. The product is highly resistant to flaking. After withstanding a certain sharp temperature change or collision, it will not easily peel off. The product is of high purification rank
4. The product is safe and non-toxic. The wood materials used in it are 100% premium – no hidden plywood is used. With the shell galvanized, the product is crack-resistant and wear-resistant
5. The product is not subject to color fading. It is finely dyed with quality coloring agent in the preliminary stage. The product can be used to save time for cleaning and vacuuming
External Material: stainless steel304 (t=1.0) Or steel with milk color power coated
Inside Material: stainless steel304 (t=1.0)
External size: 1400*1000*2180mm
Internal size: 790*930*1910mm
Sus nozzle: 16pcs
Blowing way: one side (top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side.
MODEL | HA-AS1400V1 | HA-AS1400V2 | HA-AS1400V3 | |
External size (mm) | 1400x1000x2180 | 1400x2000x2180 | 1400x3000x2180 | |
Work zone (mm) | 790x930x1910 | 790x1930x1910 | 790x2930x1910 | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1：Entirety Sus304.(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/1.1KW | 380V/50HZ/1.1KW | 380V/50HZ/1.1KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um Mini-pleats HEPA air filter | |||
Air velocity | 1000m3/h | |||
Initial resistance(pa) | <220pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency(%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50Hz | 380v/50Hz | 380v/50Hz |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1500x1200x2250 | 1500x2200x2250 | 1500x3200x2250 | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Illustrate
1: Control board 2: Infrared Indicator 3: Per-filter 4: Power Indicator 5: Emergency switch 6: Working light 7: HEPA air filter (H13 99.995%@0.3um) 8: Door 9: Fan 10: Door Closer 11: Nozzle 12: Purification light
Application
Clean room air shower products are a kind of local cleaning equipment with strong versatility. They are installed between clean rooms and non clean rooms. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
