We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

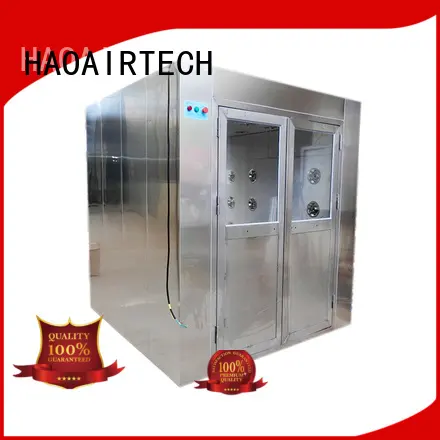

HAOAIRTECH air shower clean room with three side blowing for oil refinery
- HaoAir focuses on the internal management and opens up the market. We actively explore innovative thinking and fully introduce modern management mode. We continuously achieve development in the competition based on strong technical capability, high-quality products, and comprehensive and thoughtful services.
1. Our material, air shower supplier , is the best choice for high-end modern air shower clean room industry.
2. The product generates very little heat. Because its housing is able to help cool down the high temperature.
3. The product is highly resistant to stains. The surface of this product is smooth enough, thus it is less likely to accumulate dust and sediment.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. has established a fairly complete management system for air shower clean room production.
5. Our air shower supplier and cleanroom supplies have kept us ahead of our competitors in the industry.
External Material: steel with powder coated (t=1.0)
Inside Material: stainless steel304 or steel with power coated (t=1.0)
External size: 1950*2000*2180mm
Internal size: 1450*1930*1910mm
Sus nozzle: 36pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side.
MODEL | HA-AS1950P2 | HA-AS1950P3 | |
External size (mm) | 1950x2000x2180mm | 1950x3000x2180mm | |
Work zone (mm) | 1450x1930x1910mm | 1450x2930x1910mm | |
Capacity Per cycle | One Small Cargo forklift. | One big Cargo forklift. | |
Material （Option） | 1: External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) | ||
Control system | 1: Control system with LED display for the shower time. | ||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
Air flow of fan(m3/h) | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | |
Nozzle in stain less steel | 36 pcs | 54pcs | |
Wind speed(m/s) | >25m/s | ||
Noise level(dB) | <75dB | ||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | ||
Air velocity | 1000(m3/h) | ||
Initial resistance(pa) | <180pa | ||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | ||
resistance(pa) | <30 Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 3 kw | 4.5 kw | |
packing size (mm) | 2050x2100x2250mm | 2050x3200x2250mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Weight | 650kgs | 960kgs | |
Illustrate
1: Control Board 2: SUS Nozzle 3: Infrared Indicator 4: Emergency switch 5: Working light 6:Glass window 7: HEPA air filter 8: Blower 9: Per-filter (H13 99.995%@0.3um) 10: Door closer 11: Purification light
Application
The cargo air shower is one of the goods buffer passages that enter the clean room. It can minimize the pollution caused by commodity or goods entering and out of the dust free room. The equipment for showering the goods is commonly known as the cargo shower room;. The cargo air shower is part of the cargo passage. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Over the past years, Guangzhou HaoAir Purification Technology Co.,Ltd. has demonstrated outstanding strength in the sales and service of air shower clean room .
2. The standard nature of these processes permits us to fabricate air shower supplier .
3. Our business goal is to help our customers become more competitive by manufacturing products in lower-cost according to the highest established quality standards. Our goal is to create spaces that allow bright and brilliant minds to meet and come together to discuss pressing issues and take action on them. Hence, we can make everyone to extend their talents to help our company grow. We are introducing new production lines with low energy consumption and less emission. These environmental-friendly manufacturing facilities can effectively reduce negative environmental impact. We are committed to conducting our business in a way that minimizes adverse impact on the environment. We limit the environmental impact of our day-to-day operations by improving energy efficiency and reducing greenhouse gas emissions.
air shower clean room / air shower room / stainless steel air shower /
cleanroom air shower
Air shower is a kind of cleaning equipment for purging people or goods before entering the cleanroom.
Packing: In wooden case
Shipping: by sea / by air / door to door
Main Features
1) Suntech, Seagate and other companies also choose this type as their air shower.
2) Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided according to customers' needs;
3) Infrared sensor automatic blowing, automatic stop;
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
