HAOAIRTECH air purifiers hepa filter with hood for air cleaner

Company Advantages
1. The manufacture of HAOAIRTECH hepa room filter involves some critical processes. These stages include concept confirmation, metal materials procurement, frame fabrication, components machining, surface painting, and final assembly.
2. This product has the advantage of strong corrosion resistance. The surface of it has been processed with special oxidization and plating technique.
3. Only qualified air purifiers hepa filter can be packed in Guangzhou HaoAir Purification Technology Co.,Ltd..
4. Guangzhou HaoAir Purification Technology Co.,Ltd. has advanced equipment, strong R&D strength, professional skill and perfect quality guarantee system.

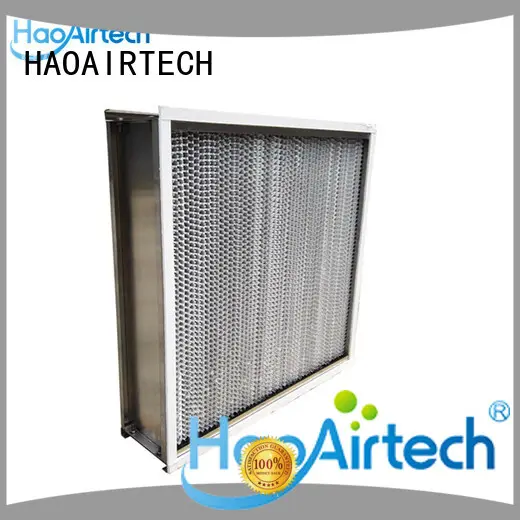

 absolute high temp hEPA filter

Specifications:

 Application: Protection for clean processes at high temperature

Frame: Reinforced stainless steel

Media: Glass Fiber

Max Temperature: 350ºC

Relative Humidity: 100%

Separator:  Aluminium

Gasket : Glass fiber

Sealant: Ceramic

Max Final Pressure Drop: 500Pa

Comment:

Please note installation and assembly instructions! Due to the different thermal expansion

efficient of the individual filter components the ceramic potting may form cracks during

the tempering process. At operating temperature (350 ºC) these filters have an overall efficiency

of 99,97% at 0,3 μm, leackages are possible.

Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air Flow   (m3/h)	Media Area    (m2)	Dust Holding    (g)	Rate primary Resistance    (Pa)	Finally Resistance    (Pa)
484X484X120	450	4.4	230	H12<200Pa H13 :<210Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6.0	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

Characteristics:

The only high-temperature HEPA filter that can comply with the most stringent FDA GMP requirements.

Pretreated, and prequalified, during the manufacturing process, with an exclusive heat preparation cycle (572º F, 300º C).

Stainless steel face grid is installed on both the air entering and air exiting sides of the filter to ensure protection of the media pack and add to the filter pack’s structural integrity.

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is at a top position in the domestic air purifiers hepa filter market.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has a comprehensive professional production equipment and sophisticated production team.
3. hepa room filter is an important focus for the sustainable development of HAOAIRTECH. Please contact. Our first-class service will provide you with best purchasing experience for vacuum cleaner hepa filter. Please contact.
