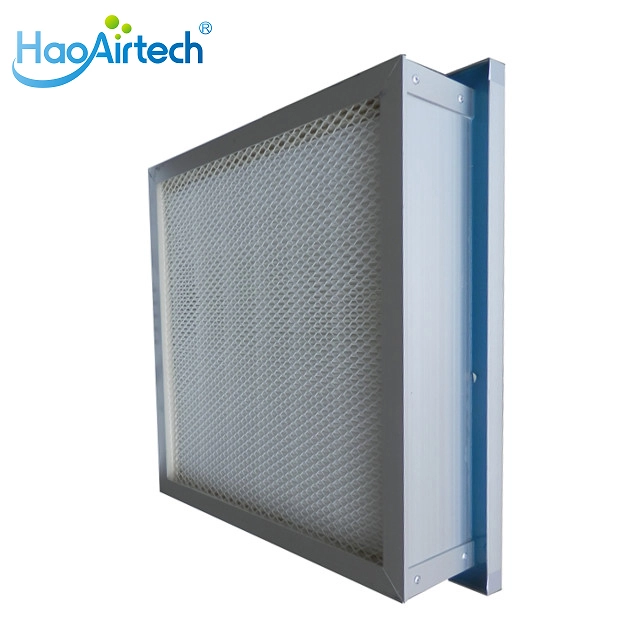

    PharmaGel HEPA Filter



    Materials And Operating Conditions :

     1. Frame: Galvanized sheet/ aluminum

     2. Sealant: Polyurethane adhesive
     3. Separator: Hot sol
     4. Media: fiberglass paper
     5. Max. Operating Temperature:80 °C
     6. Max. Operating Humidity: 80%
     7. Seal: Gel seal

    PharmaGel HEPA Filter 2

    Application :      Heating, air conditioning and ventilation system, Spray painting stop, chemical plant,

     pharmaceutical plant, cement or asphalt powder plant,clean room, power station,

    heavy and metal industry, dry and bake room, Hospital,etc.




    Feature :

    HEPA or high efficiency particulate arresting filters capture 99.97% of airborne

     contaminants as small as 0.3 microns in size.

    PharmaGel HEPA Filter 3

    Paramter :



    Model
    External Dimension
    (W*H*D)mm

    Rated Airflow
    (m3/h)

    Initial Resistance
    (pa)

    Efficiency
    Arrestance @0.3um
    -T (Top channel)-S (Side channel)
    HA-360320*320*95354*354*90360









    ≤220










    ≥99.99
    HA-450350*350*95384*384*90450
    GMP-500400*400*95434*434*90500
    HA-800484*484*95518*518*90800
    HA-1000550*550*95584*584*901000
    HA-1350610*610*95644*644*901350
    HA-1800820*600*95854*634*901800
    HA-1500630*630*95664*664*901500
    HA-1200726*484*95760*518*901200
    HA-2000915*610*95949*644*902000
    HA-1700968*484*951002*518*901700
    HA-27001220*610*951254*644*902700
    HA-2150945*630*95979*644*902150
    HA-30001260*630*951294*644*903000
    Note: The file size can be customized.
