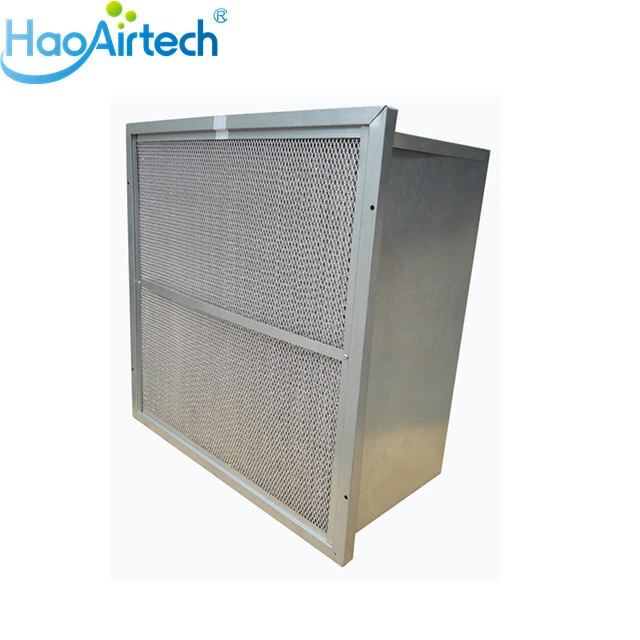

    Rigid Cell Filters


    Rigid Cell Filters 2


    Intorduce :


         MERV 11 rigid cell air filters provide between 80% and 85% efficiency for filtering particles between

    3 and 10 microns in size (such as mold spores, dusting aids, and cement dust).

     They also provide between 50% and 65% efficiency for filtering particles between 1 and 3 microns in size

    (such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets) and less than 20% efficiency

    for filtering particles between 0.30 and 1 micron in size (such as bacteria, most smoke, sneeze nuclei,

    insecticide dust, copier toner, and face powder). They capture contaminants more efficiently than MERV 10 rigid cell air filters.



    Products Parameter

     Dimension

      (mm)

    (W*H*D)

    Pack

    NO

     Rate

    Air Flow

     (m3/h)

    Media Area

    (m2)

    Dust

    Holding

       (g)

    Efficiency

    Rate primary

    Resistance

       (Pa)

     Finally

    Resistance

       (Pa)

    592X287X292

    4

    2100

    11.02

    660

    F7

    65%@0.5um



    <80Pa



    300-350pa

    592X490X292

    4

    3550

    18.6

    1200

    592X592X292

    4

    4500

    22.1

    1350

    610X610X292

    5

    5400

    29

    1750

    592X287X292

    4

    2100

    11.02

    660

    F8

    85%@0.5um



    <100pa



    350-400pa

    592X490X292

    4

    3550

    18.6

    1200

    592X592X292

    4

    4500

    22.1

    1350

    610X610X292

    4

    5400

    29

    1750

    592X287X292

    4

    2100

    11.02

    660

    F9

    90%@0.5um



    <120pa



    400-450pa

    592X490X292

    4

    3550

    18.6

    1200

    592X592X292

    4

    4500

    22.1

    1350

    610X610X292

    5

    5400

    29

    1750

     Rigid Cell Filters 3

    Application:


    1: Optical electronics, biological pharmaceuticals, medical laboratories, food and

        beverages, daily chemical semiconductors, precision instruments and other industries

       Pre filtration of central ventilation and air conditioning systems in ordinary industrial plants or cleanrooms.

     2: Ventilation and air conditioning systems for large civil buildings, such as office buildings,

     3: Conference rooms, hospitals, shopping malls, gymnasiums, airports, etc.


    Rigid Cell Filters 4
