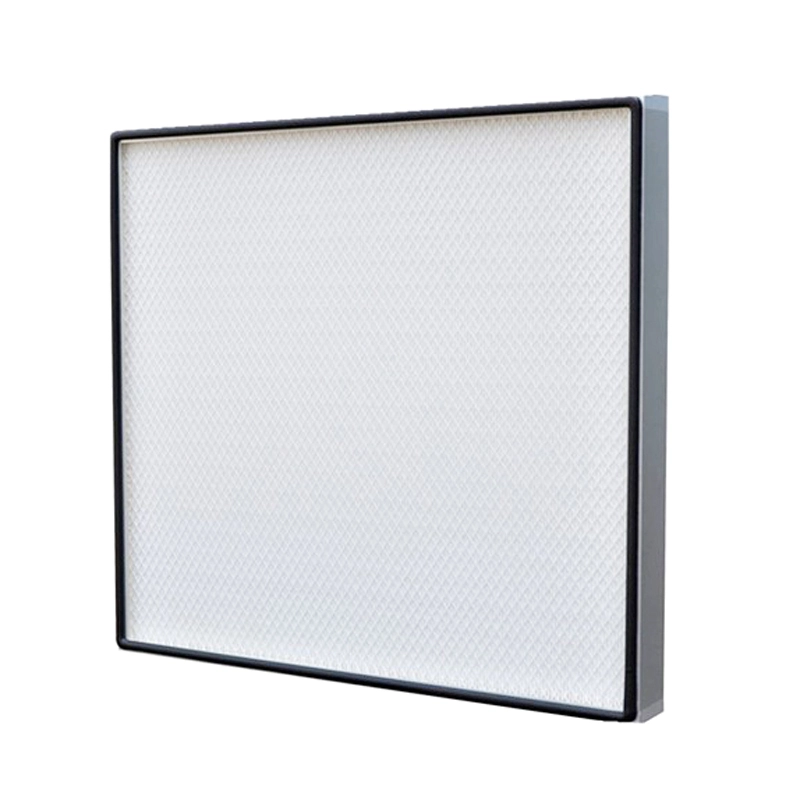

U15 Mini-Pleats ULPA Air Filter With One Side Gasket 1
U15 Mini-Pleats ULPA Air Filter With One Side Gasket 2
U15 Mini-Pleats ULPA Air Filter With One Side Gasket 1
U15 Mini-Pleats ULPA Air Filter With One Side Gasket 2

U15 Mini-Pleats ULPA Air Filter With One Side Gasket

    oops...!

    no product data.

    Go to homepage



    Characteristics
    The media material is America HV super glass fibre for 0.12um particulate
    It is patent technology to ensure the V type passage in low resistance.
    Neoprene /EVA or PU gasket prevent the air leaking in operation
    Extrude and anodized aluminum frame in 50mm, 69mm, 80mm, 90mm for choose.
    While color metal screen to protect the filtration media without any damage.
    Light weight and easy to install
    Adopting the laser to scan the filter one by one ( MPPS).
    100 % provide the test report for each mini-pleats ULPA air filter
    Filtration Efficiency: U15 ,U16, U17.(EN1822). 99.9995%-99.99995%@0.12um
    Applied to the terminal filtration of the air-condition filtration system
    U15 Mini-Pleats ULPA Air Filter With One Side Gasket 3



    / Operating Conditions


     Media

    America    HV Super glass    fibre

     Frame

    AL/GL/SUS201/304    frame

    Gasket

    Neoprene    /EVA or PU

    Media spacer

    Hot melt

    Frame thickness (mm)

    46/50/69/80/90/96/120

    Screen

    Metal    screen

    Efficiency

    >99.9995%-99.99995%@0.12um

    Max Temperature

     70℃

    Max Humidity

    100%



    / Products Parameter


     Dimension(mm)
         (W*H*D)

      Rate Air Flow
         (m3/h)

    Media Area
         (m2)

     Dust Holding
           (g)

    Rate primary
    Resistance
         (Pa)

    Finally
    Resistance
         (Pa)

    Efficiency

    320X320X50

    120

    2

    130





    <200Pa





    400-600pa





    U15-U17

    484X484X50

    300

    4.5

    300

    610X610X50

    500

    7.1

    428

    915X610X50

    730

    10.6

    635

    1220X610X50

    980

    14

    842

    305X305X69

    150

    2.9

    173

    484X484X69

    400

    6.5

    393

    610X610X69

    600

    10.3

    622

    915X610X69

    900

    15.4

    923

    1220X610X69

    1200

    20.4

    1224



    / Primary Resistance & Face Velocity Diagram


    U15 Mini-Pleats ULPA Air Filter With One Side Gasket 4



    / Product Details



    part.1
    Mini-PleatsULPA Air Filter With EVA Gasket and PU gasket
    U15 Mini-Pleats ULPA Air Filter With One Side Gasket 5

    part.2
    PU Foma Gasket
    U15 Mini-Pleats ULPA Air Filter With One Side Gasket 6

    part.3
    Mini-Pleats Media Compact
    U15 Mini-Pleats ULPA Air Filter With One Side Gasket 7

    part.4
    Air Filter Dust Detection Test
    U15 Mini-Pleats ULPA Air Filter With One Side Gasket 8


    Application

    Mini-Pleats ULPA air filter suitable for air cleaner ,dust colletor hospital, electronic industry ,food,Pharmaceutical ,bio-engineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field and so on .



    / Our Service


    U15 Mini-Pleats ULPA Air Filter With One Side Gasket 9

    Our Service

    1:  100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of    HEPA air filter.
    2:  2 pcs in one carton .each air filter warp by PE Bag .
    3:  Small order is polywood packing so that we can send out by sea in LCL.
    4:  If order amount more than 20000USD, We accept the 100% LC at sight against with     document.
    5:  Free sample possible for you confirmation of quality .



    / package


    U15 Mini-Pleats ULPA Air Filter With One Side Gasket 10
    U15 Mini-Pleats ULPA Air Filter With One Side Gasket 11
    U15 Mini-Pleats ULPA Air Filter With One Side Gasket 12
