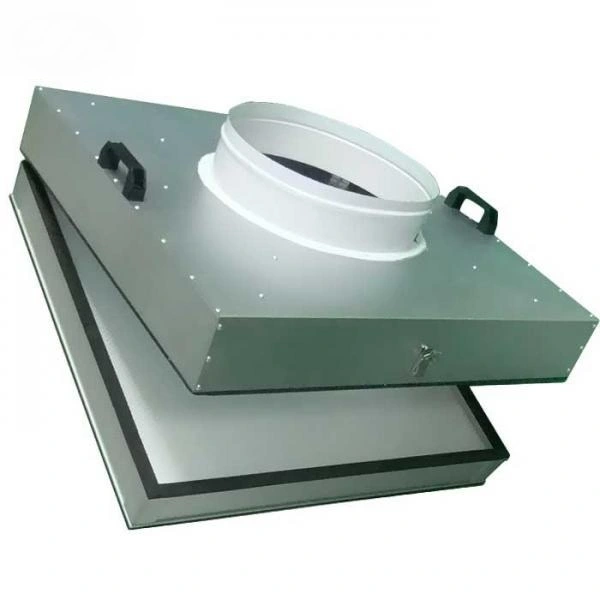

Ducted Filter Modules
Ducted Filter Modules
Features:
1.High Efficiency
2.Low Resistance
3.Easy to install
4.Well-look appearance
5.Vent industrial air filter.
6: Frame: Aluminum
7: Roof material: Cold-rolled steel plate electrostatic plastic spraying, aluminum
8: Filter medium: Glass fiber
9: Partition : Hot melt
10: Diamond of wind suiface nets Electrolysis board electrostatic plastic spraying
11: Max. temperature 80°C
12:Max. humidity 80%RH
Products Parameter：
Dimension (mm) (W*H*D)
| Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary Resistance (Pa) | Finally Resistance (Pa) | Efficiency |
610X610X120 | 1000 | 11.32 | 680 |
<220pa |
400-600pa |
H13-H14 |
610X915X120 | 1500 | 16.7 | 1002 | |||
600X1200X120 | 1950 | 21.4 | 1283 | |||
610X1220X120 | 2000 | 22.1 | 1326 | |||
610X610X150 | 1270 | 14.14 | 850 | |||
610X915X150 | 1900 | 20.8 | 1253 | |||
600X1200X150 | 2400 | 26.73 | 1604 | |||
610X1220X150 | 2500 | 27.65 | 1660 | |||
610X610X220 | 1550 | 17.41 | 1044 | |||
610X915X220 | 2300 | 25.7 | 1542 | |||
600X1200X220 | 2950 | 32.89 | 1974 | |||
610X1220X220 | 3000 | 34 | 2040 |
