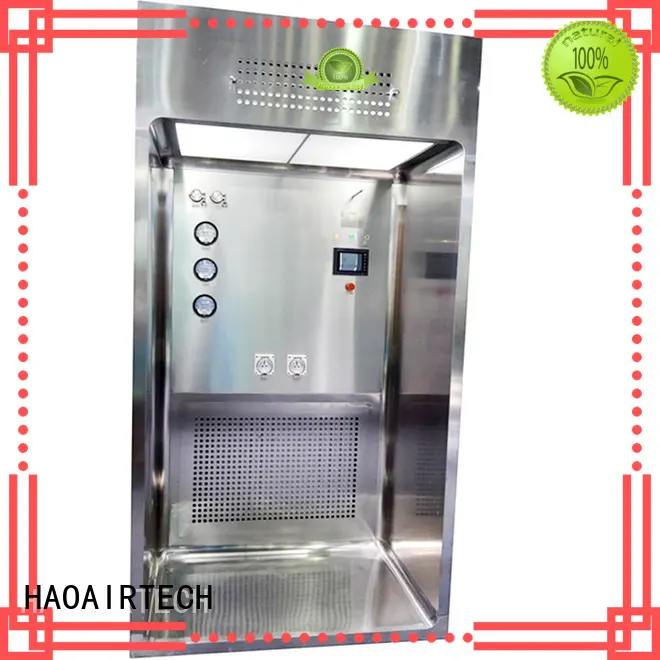

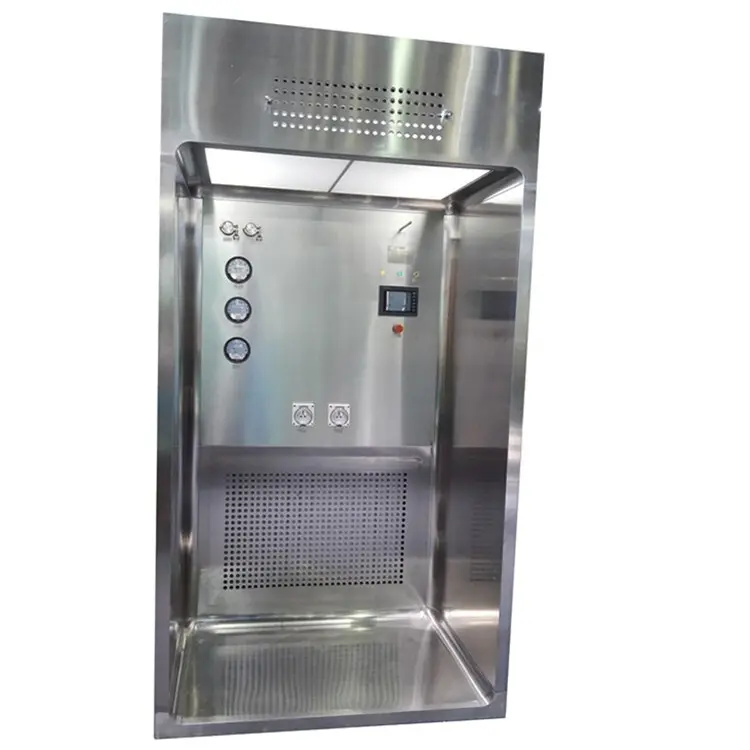

Custom flow dispensing booth iso5 HAOAIRTECH

Company Advantages
1. The product prevents airborne particles and microbes from entrance. Thanks to the unique design of dispensing unit, we are proud to present HAOAIRTECH products to customers all over the world. The product prevents airborne particles and microbes from entrance
2. The product creates a high cleanliness working environment. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. The product's rigid frame forestalls shrinking or bending. HAOAIRTECH has put more advanced features into dispensing booth,dust containment booth to make it more attractive.
4. The product focuses on the good physical conditions of the workers in the workshop. As the central of sample booth design, sampling booth,dispensing booth pharmaceutical industries is both qualified with high performance and high quality.

Weighting booth  provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar air flow booth  to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .

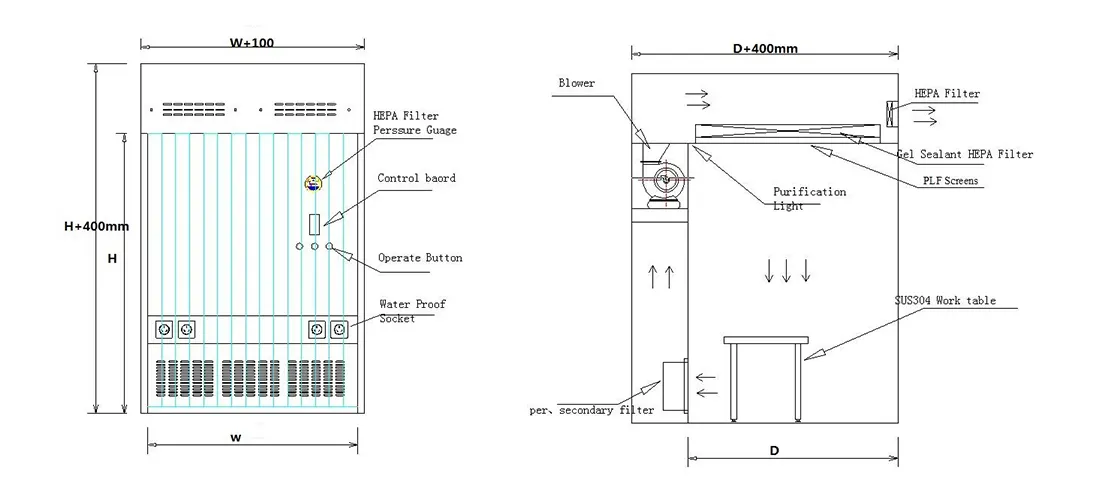

MODEL	HA-DB1000	HA-DB1500	HA-DB2000
External size (mm)      (W*D*H)	1200x1500x2400mm	1500x1700x2400mm	2000x1800x2400mm
Work zone (mm)      (W*D*H)	1100x1200x2000mm	1400x1200x2000mm	1900x1300x2000mm
Purification rank	Class 100(ISO5)
Air speed	0.45m/s +_20%
Material（Option）	1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel    with power coated. (T=1.2/1.5mm)

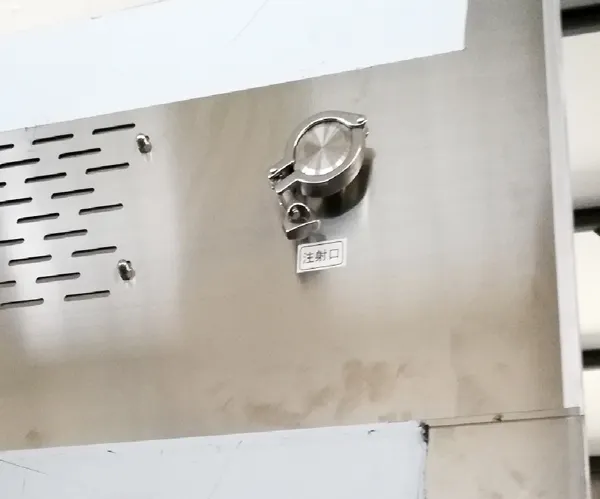

Control system	1: LCD touchable screen display with air    speed adjustable and constant temperature and constant humidity data check. 2: Gel Sealant High Efficiency HEPA air    filter for high purification rank 3: Wind speed detection, Constant    temperature and constant humidity Detector according to client request install    .  4: DOP/PAO Port and differential Pressure    Guage for HEPA /secondary filter so that remind of you change the air filter    in time 5: 5 different filter configuration    available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized    joints and seams. 7: Four side corner and corner line is circle    design prevent dust accumulation
Noise level(dB)	<65dB
Filter step	3 Step
HEPA filter	99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
Secondary filter	F8 pocket air filter
Pre-filter Efficiency	G4 Z-Line panel air filter
Power supply	380V/50HZ  OR 220V/50HZ
Packing    material	Standard Export Poly wood Packing(Fumigant free material)

Weighting booth is designed such that through the different configurations it can be applied  but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .

/ Certificated

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has a front-runner status when speaking of dispensing booth. - Let HaoAir Purification build and manage a team of professionals for your business.
2. Welcome To Visit Our Factory! For Your Oem Or Odm sampling booth, dispensing unit, dust containment booth Orders, HAOAIRTECH Is Sure That We Can Make You Satisfied. If You Want To Get More Types Of Our Products. Please Contact Us.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. holds grand technical capacity in sample booth design realm. - The Core Values of Guangzhou HaoAir Purification Technology Co.,Ltd. is creating value for customers. Get quote!
