Company Advantages1. HAOAIRTECH static pass box specification is required to be treated with professional technique. It goes through a chemical washing process which is usually carried in iron vessels. The product comes with 1-2 years of warranty period
2. This product is well received by the global market and has a broad market prospect. The product assures an extremely high-efficient manufacturing process
3. The product has high performance up to the industry advanced level. It has low noise and high mobility
4. Its quality is guaranteed by a rigorous scientific quality management. The product can be used to save time for cleaning and vacuuming
5. Having been tested and modified for several times, the product finally is in its best quality.
Product Features
Pass box inside bottom corner is round shape so that there is any dust accumulation
External size: 800*670*1150mm
Internal size: 600*600*600mm
External Material: stainless steel304 (t=1.2)
Inside Material: stainless steel304 (t=1.2)
Double layer vacuum glass
Both side door is inlaid type
Locker: software computer interlocking
DOP Gel Sealant Mini-Pleats HEPA air filter
Air speed: 0.45m/s adjustable
DOP/POA port: 1set
/ Products Parameter
MODEL | HA-DPB500 | HA-DPB600 | HA-DPB700 |
External size (mm)
(W*D*H) | 700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
Work zone (mm)
(W*D*H) | 500x500x500mm | 600x600x600mm | 700x700x700mm |
Purification rank | Class 100 |
Material (Option) | 1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) |
| |
Control system | 1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable |
UV light | 1 PCS |
Power supply | 220v/50HZ |
packing size (mm) | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
Packing material | Standard Export Poly wood Packing(Fumigant free material) |
/ Specification
Illustration

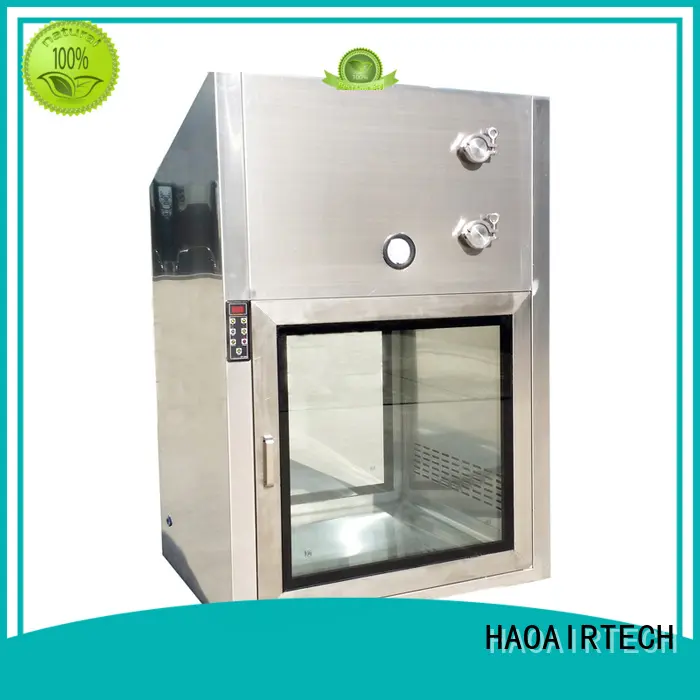

1: Computer software control board 2: Door handle 3: Double layer glass door 4: UV light
![cleanroom pass box with baked painting for hospital HAOAIRTECH 10]()
/ Product Details
part.1
Pass Box inside corner
part.3
Pass Box outside corner
Introduce: Dynamic Pass Box
Dynamic pass box is a kind of class 100 purification equipment for Pharmaceutical clean room.
One hand, it plays the role of the air lock, Does not let high grade rank clean room pressure be leaked. On the other hand, the self purification effect is realized in the process of pass box to ensure the clean of the articles entering the clean area and reduce the cross pollution caused by the objects.Customized design is available.
/ Certificated:
![cleanroom pass box with baked painting for hospital HAOAIRTECH 14]()
/ Our Service
Our Service
1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features1. As a reputable manufacturer of static pass box specification , Guangzhou HaoAir Purification Technology Co.,Ltd. acts flexibly to the market changes and becomes a strong competitor now. As a powerful technology company, Guangzhou HaoAir Purification Technology Co.,Ltd. keeps improving its production efficiency.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has a team of skilled and experienced personnel.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. is a professional cleanroom pass box supplier who puts quality first. We not only comply with environmental legislation in daily production facilities but also we encourage other businesses to do so. Besides, we also encourage our business partners to adopt green practices to further effectiveness.
