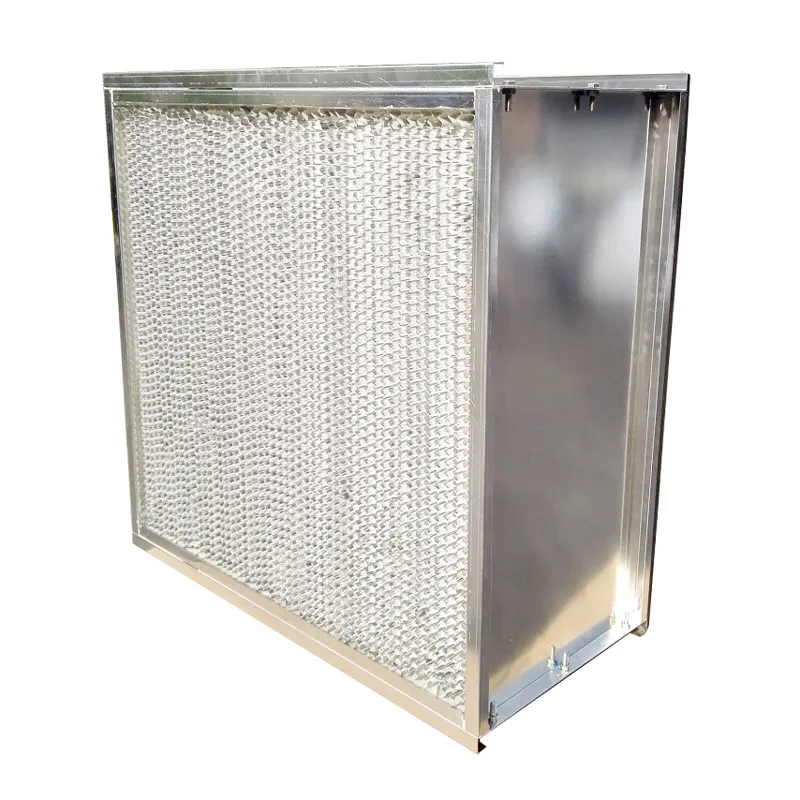

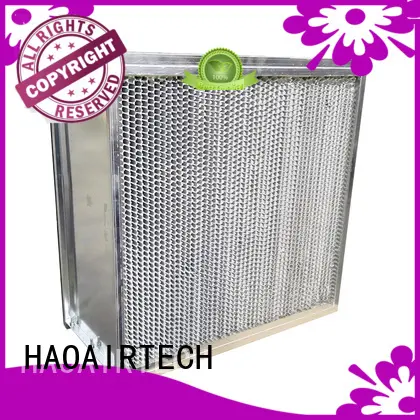

best hepa air filter port paper gasket HAOAIRTECH Brand

Brand:

HAOAIRTECH

Model number:

HA-HEPA-A Series

OEM /ODM:

Yes

Certificated:

Rosh

Start port:

Guangzhou

Delivery time:

8 working days after we get the deposit.

MOQ:

10sets

Country of Original:

China

Supply ability:

set/one month

Payment term:

T/T , L/C , Western union

Application:

Worker in Clean room

Inquiry

Application Scope

's best hepa filter can play an important role in various fields.In addition to providing high-quality products, also provides effective solutions based on the actual conditions and the needs of different customers.

Enterprise Strength

has a professional technical team to provide customers with the best technical support and guarantee.
offers technical training for customers freely. Moreover, we respond quickly to customer feedback and provide timely, thoughtful and high-quality services.
In the future, will continue to adhere to the business philosophy of 'sincerity-based, quality-oriented, morality-driven'. Everything we do is based on customers' needs. We take technological innovation as the support to provide customers with quality products and efficient services.
After years of steady development, receives good recognition and support in the industry.
's sales network is spread all over the world.

Company Advantages
1. The direction best hepa air filter will develop towards is to meet yHAOAIRTECH requirements. The product can be used to save time for cleaning and vacuuming
2. HAOAIRTECH is famous for the hepa filter manufacturers with hvac hepa filter. The product has passed strict air speed test
3. With advanced manufacturing equipment and perfect quality guarantee system, Guangzhou HaoAir Purification Technology Co.,Ltd. supplies the clients with high quality products. The product creates a high cleanliness working environment
4. The product comes with 1-2 years of warranty period. HAOAIRTECH has comprehensive expertise on hepa air filter,hepa filter for cleanroom.

Characteristics

The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation.
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um

/ Operating Conditions

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media spacer	Hot melt
Frame thickness (mm)	120/150/220
Clapboard	0.035mm aluminum foil
Efficiency	99.99%-99.999%@0.3um
Max Temperature	80℃
Max Humidity	80%

/ Products Parameter

Dimension(mm) (WHD)	Rate Air Flow (m3/h)	Media Area (m2)	Dust Holding (g)	Rate primary Resistance(Pa)(H13-H14)	Finally Resistance (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

/ Primary Resistance & Face Velocity Diagram

best hepa air filter port paper gasket HAOAIRTECH Brand 12

/ Product Details

part.1

EVA Gasket for Heap air filter with flange

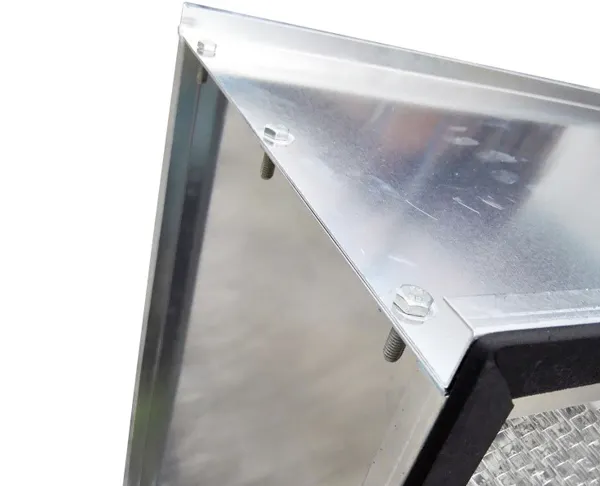

part.2

Outwardly Frame for heap air filter

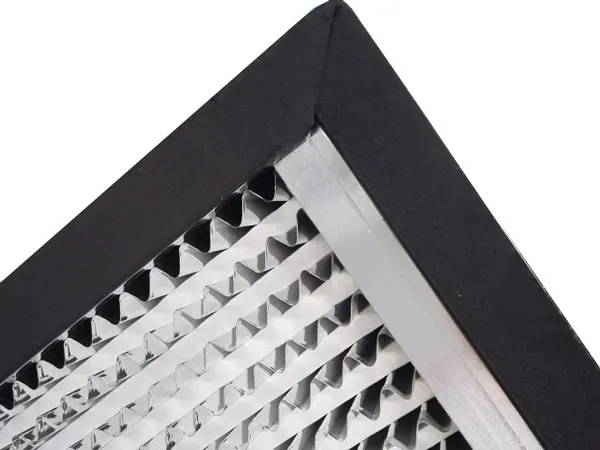

part.3

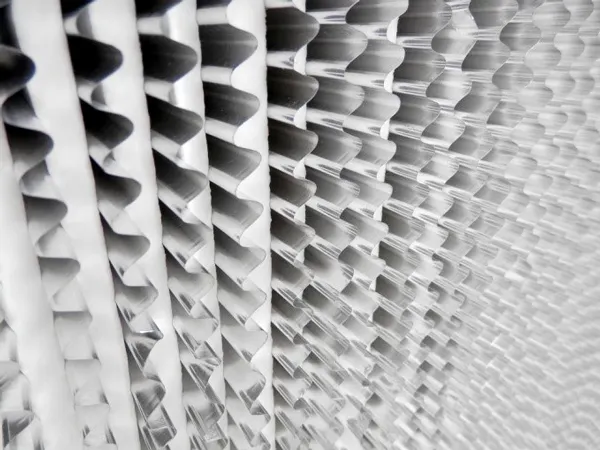

Deep Pleats Media Compact

/ package

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. plays a leading role in global marketplace of hepa filter manufacturers.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. introduced best hepa air filter technology to develop hepa air filter with better quality and higher performance.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. is a company that always insists on customer first. Check now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

Gel Seal HEPA Air filter with 99.995%@0.3um

H14 HEPA Air Filter With DOP Port

Cardboard Frame HEPA Filter

HEPA Air Filter with Paper Clapboard

U15 Mini-Pleats ULPA Air Filter With One Side Gasket
