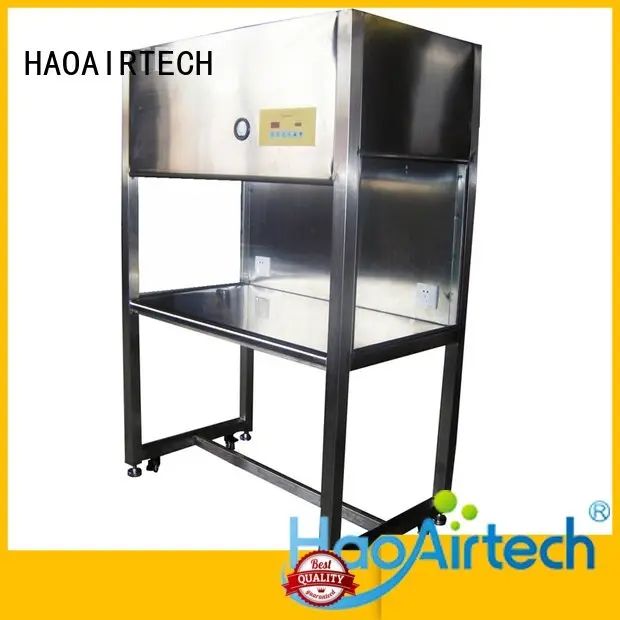

vertical laminar flow clean benches for clean room

Company Advantages
1. HAOAIRTECH horizontal laminar flow hood is exclusively manufactured by our adroit professionals using superior quality raw material and advanced technology. It is certified by SGS corporation and reaches RoHS standard
2. With unique design, top quality and excellent service, Guangzhou HaoAir Purification Technology Co.,Ltd. wins more and more reputation. The product can maintain high air quality of the factory
3. This product guarantees stable performance and long service life. The product has passed strict air speed test
4. Long service life and durable performance. With premium quality, the product is also fit for working under difficult operating conditions

Product Features：

Vertical air flow from top to bottom .

High cleanliness,

Low noise and movability

It can be connected into assembly line

working life is as long as 30 thousand hours or more.

maintenance-free , small vibration,

stepless speed regulation



Introduction:



vertical laminar flow bench is same with horizontal clean bench are one kind of air purifying equipment which can provide local dustless and aseptic working environment, and can control and discharge the polluted air artificially through a special filtering channel to avoid harming people and the environment.



Application:

It widely used in biological laboratory, medical, health, biopharmaceuticals, optoelectronic industry, microelectronics, hard disk manufacturing and other fields which need local purification.

It has a good effect on improving technological conditions, protecting the health of operators, improving product quality and product rate.





Characteristic：

Vertical laminar flow bench with high purification rank class100

It adopts super thin mini-pleats high efficiency air filter take up very small space.

Stainless steel worktable, plexiglass enclosure.

Using touchable LED control board, the fan air volume can be adjusted in steplessly,

This make sure the wind speed in the working area is always in keep an ideal state.

Equipped with differential pressure gauge, clearly indicating the pressure difference between the two sides of the high-efficiency filter, and promptly remind the replacement of air filter.

The dismantling large air volume pre filtration coarse efficiency filter can better protect the high-efficiency filter and ensure the wind speed.



Products Parameter：

MODEL	HA-VCB-1	HA-VCB-2	HA-VCB-3
External size (mm) (WXDXH)	1000x700x1800	1200X700X1800	1500X700X1800
Work   zone (mm) (WXDXH)	900x650x600	1100x650x600	1400x650x600
Purification   rank	FS209E 100Rank
Rating   airflow(m3/h)	950m3/h	1100m3/h	1400m3/h
Filtration   efficiency	More than 99.99%@0.3um  H13-H14
Average wind speed	0.3-0.6m/s Adjustable
Intensity of illumination	>300lx
Fluorescent lamp	20Wx1	30WX1	40WX1
Material (Option)	1：Entirety Sus304/201 2：External is steel with power coated, Internal is SUS304 3:   External is steel with power coated. Internal is SUS201
Control board	1:   Control the air speed up/down 2:   Power off /on 3:   Working time display 4:   Working area light on/off 5:   Alarm indicator
Power	280W	405W	490W
Noise	<65dB
Power supply	220V-240V AC 50HZ
Packing size	1160x980x1780mm	1400x1020x1780mm	1700x1100x1780mm





Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is an enterprise which is professional in producing laminar flow hood . Building up technological center facilitates the force of HAOAIRTECH.
2. horizontal laminar flow hood technology makes laminar flow cabinet to be more competitive for its high quality.
3. The high output of clean bench proves that Guangzhou HaoAir Purification Technology Co.,Ltd. has solid technology ability. Bringing in a set of the first-class infrastructure for waste treatment, we have strong determination to handle environmental issues. These infrastructures will help us handle and dispose of wastewater and waste gases in line with international best practice.
