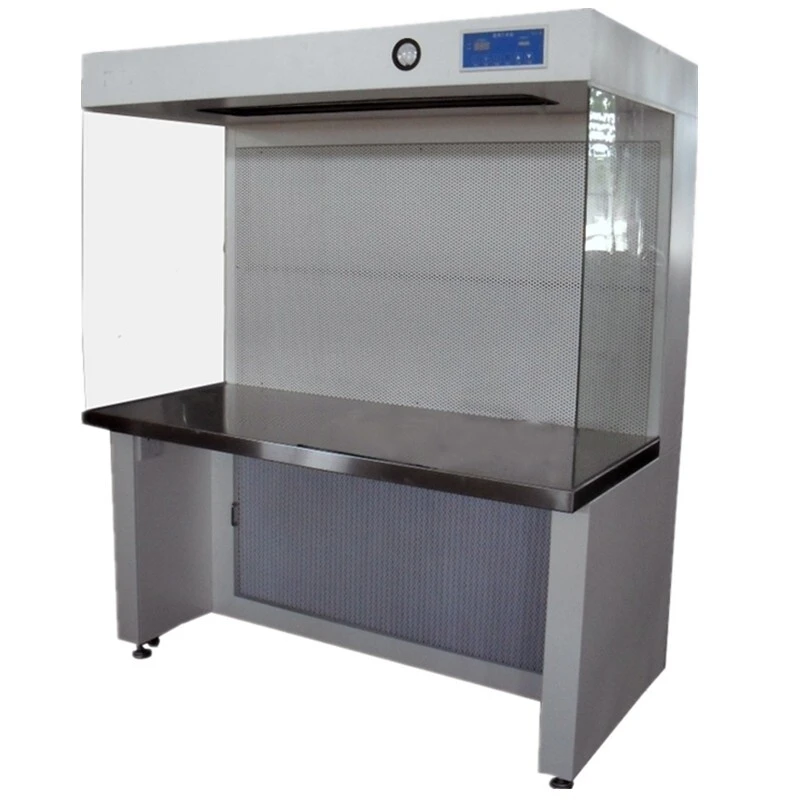

Horizontal Laminar Flow Workstation clean Benches
Product Features：
Horizontal laminar flow blow from back direclty to worker's face.
High cleanliness
Low noise and movability
It can be connected into assembly line
working life is as long as 30 thousand hours or more.
maintenance-free , small vibration,
stepless speed regulation
Introduction:
Horizontal laminar flow bench is a kind of air purifying equipment which can provide local dustless and aseptic working environment, and can control and discharge the polluted air artificially through a special filtering channel to avoid harming people and the environment.
Application:
It widely used in biological laboratory, medical, health, biopharmaceuticals, optoelectronic industry, microelectronics, hard disk manufacturing and other fields which need local purification.
It has a good effect on improving technological conditions, protecting the health of operators, improving product quality and product rate.
Characteristic：
Horizontal laminar flow bench with high purification rank class100 or class 10 for
local space in cleanroom .
It adopts super thin mini-pleats high efficiency air filter take up very small space.
Stainless steel worktable, plexiglass enclosure .
Equipped with UV lamp remote control electric interface.
Using touchable electronic control panel, the fan air volume can be adjusted in steplessly ,
This make sure the wind speed in the working area is always in keep an ideal state.
Equipped with differential pressure gauge, clearly indicating the pressure difference between the two sides of the high-efficiency filter, and promptly remind the replacement of air filter.
The dismantling large air volume pre filtration coarse efficiency filter can better protect the high-efficiency filter and ensure the wind speed.
Products Parameter：
HA-HCB-2 | HA-HCB-3 | ||
External size (mm) (WXDXH) | 1500X900X1580 | ||
Work zone (mm) (WXDXH) | 930x600x650 | 1180x600x650 | 1480 x600x650 |
Purification rank | FS209E 100Rank | ||
Rating airflow(m3/h) | 1200m3/h | 1800m3/h | 2300m3/h |
Filtration efficiency | More than 99.99%@0.3um H13-H14 | ||
Average wind speed | 0.3-0.6m/s Adjustable | ||
Intensity of illumination | >300lx | ||
30WX1 | 40WX1 | ||
(Option) | 1：Entirety Sus304/201 2：External is steel with power coated, Internal is SUS304 3: External is steel with power coated. Internal is SUS201 | ||
Control board | 1: Control the air speed up/down 2: Power off /on 3: Working time display 4: Working area light on/off 5: Alarm indicator | ||
Power | 280W | 405W | 490W |
Noise | <65dB | ||
Power supply | 220V-240V AC 50HZ | ||
Packing size | 1160x980x1780mm | 1400x1020x1780mm | |
Draw :
Illustration :
1: Control board 2: Power Cable 3: Purification light 4: Pressure indication 5: Hepa air filter 6：Toughened glass 7: Socket 8: Fan 9: Per-filter 10: Flexible wheel
11:Support Leg
