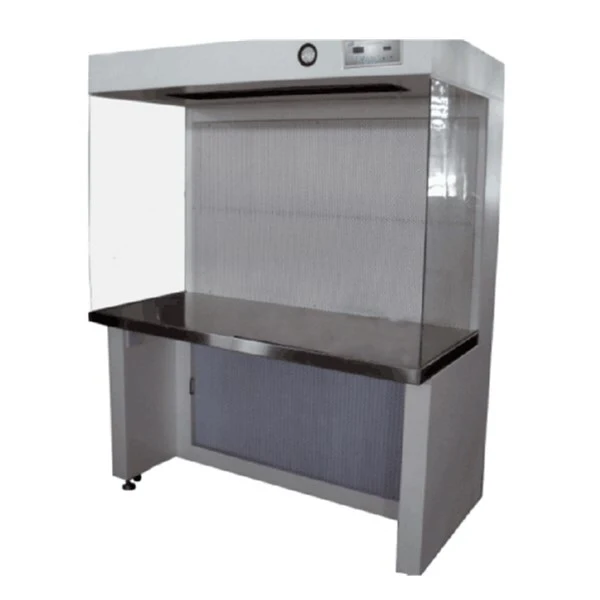

Customizable Horizontal Laminar Flow Bench For Electronic Industry

Introduction

Horizontal laminar flow bench is a kind of local purification table with strong versatility.
It has less noise and outward wind direction. It is commonly used in the electronic industry.
The advantage of horizontal laminar flow bench is that it is open and has no protective baffle.
It is convenient to operate and take goods. It can effectively improve work efficiency, but it can not work on products harmful to human body, because it will be harmful to operator's health.

Characteristic
1.Seismic isolation working table.
2.Door glass adopts push-pull up and down type, which has novel structure and is easy to observe.
3.In the protection of clean air flow, the pollution of articles can be effectively prevented.
4.Suitable for variable air supply system with high and low wind speed.
5.Adjustable, reliable operation, low consumption and energy saving. It can be equipped with lighting and sterilization system.
6.Digital display control interface, more humanized design.
7.Universal casters can be freely movable, flexible and convenient

Design drawings

1.control board    2.power cable   3.purification light    4.pressure indication 5.HEPA air filter
6.Antistatic acrylic plate  7.socket  8.fan   9.pre-filter  10.wheel

Technical parameter
