We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

ulpa ulpa air filter with dop port for dust colletor hospital 1
ulpa ulpa air filter with dop port for dust colletor hospital 2
ulpa ulpa air filter with dop port for dust colletor hospital 3
ulpa ulpa air filter with dop port for dust colletor hospital 4
ulpa ulpa air filter with dop port for dust colletor hospital 1
ulpa ulpa air filter with dop port for dust colletor hospital 2
ulpa ulpa air filter with dop port for dust colletor hospital 3
ulpa ulpa air filter with dop port for dust colletor hospital 4

ulpa ulpa air filter with dop port for dust colletor hospital

Brand:
HAOAIRTECH
Model number:
HA-HPC
Material:
Cardboard frame
OEM /ODM:
OEM/ODM
Certificated:
SGS
Start port:
HUANGPU,GUANGZHOU
Delivery time:
10 Working days
MOQ:
10sets
Country of Original:
china
Supply ability:
1000sets/per month
Payment term:
T/T IN advance, LC At sight
Application:
HVAC terminal filtration
Inquiry

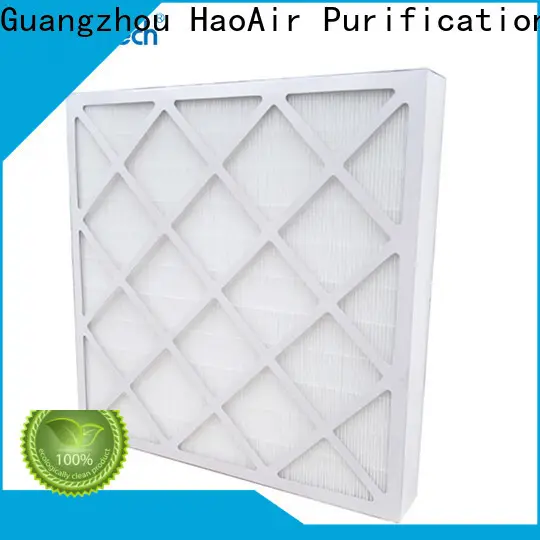

Cardboard Frame HEPA Filter


ulpa ulpa air filter with dop port for dust colletor hospital 5

Feature :

  •  1:High efficiency in filtration

  •  2: Leak proof Sealing thus no air leakage

  •  3: Pleats are equally spaced to maintain uniform air distribution

  •  4:  Low initial and Final pressure drop

  •  5: Separator - Corrugated Aluminum Foil helps to stabilizes pleats throughout its life

  •  6:  Hemmed edges of aluminum separators reduce possible pleat damage

  •  7: High mechanical strength

  • ulpa ulpa air filter with dop port for dust colletor hospital 6

Introduce :

        Mini Pleat filter panels cardboard for the separation of fine dust and suspended particles such as aerosols, toxic dusts,

        viruses and bacteria from the supply and extract air in ventilation systems.

       Use as fine dust filters, i.e. as prefilters or final filters in ventilation systems; or as particulate filters,

       i.e. main or final filters for the most critical requirements of air cleanliness and sterility in areas such as industry, research, medicine, pharmaceuticals, and nuclear engineering.

      Compact depth construction, suitable for systems with high volume flow rates and a requirement for long filter life.

     The filter media are made of high-quality, moisture-resistant glass fibre papers, with spacers made of thermoplastic hot-melt adhesive.

      Low initial differential pressure due to ideal pleat position and largest possible filter area.

      Mini Pleat filter panels are available in standard and special sizes, with different pleat depths, filter classes M5, M6, F7, F9, E11, H13, H14

HEPA Filter With cardboar frame :

1.Style
Pleat,Folding
2.Feature
Dust collection, Large dust collection,High quality,High efficiency
3.Material
glassfiber paper, Polyester fiber paper, PTFE
4.Size
OEM ,Customizing is welcome
5.Color
White
6.Frame
Galvanized,Aluminum alloy,Plastic box,Stainless steel,craft paper
7.Protect mesh
Aluminum mesh or spray iron mesh
8.Is used to
The factory building,clean room ventilation system filters,HVAC AHU
9.Efficiency
H10 H11 H12 H13 H14 U15 U16 U17
10.Weight
6kg


ulpa ulpa air filter with dop port for dust colletor hospital 7

Application:

  • • Pharmaceutical Industry

  • • Hospital and Laboratory

  • • Food and Beverage Industry

  • • Mall and Shopping center

  • • Aerospace Industry

  • • Power Plant

  • • Semi Conductor Industry
