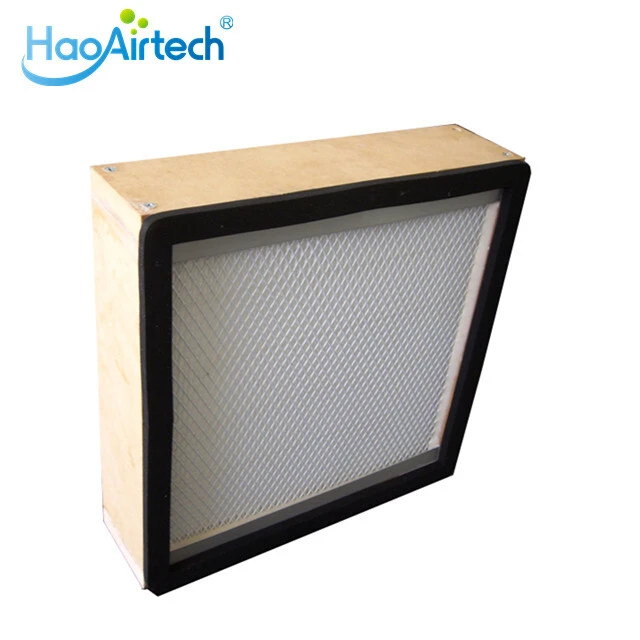

ULPA HEPA Filter
ULPA HEPA Filter
1 : Lowest initial resistance available
2: Negligible off-gassing properties (no boron)
3: high tensile strength ePTFE media is up to 8 times stronger than microglass
4: Highly resistant to corrosive environments (acids, alkalis, and organic substances)
5: Gasket seal, gel seal and knife-edge designs available
6: Lightweight anodized aluminum frame
7: 99.99995% on MPPS
Parameter :
Dimension (mm) (W*H*D)
| Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary Resistance (Pa) | Finally Resistance (Pa) |
320X320X50 | 200 | 1.99 | 120 |
U15 :<1600Pa U16 :<180pa |
400-600pa |
484X484X50 | 450 | 4.51 | 270 | ||
610X610X50 | 700 | 7.13 | 430 | ||
915X610X50 | 1000 | 10.58 | 650 | ||
1170X570X50 | 1200 | 12.57 | 750 | ||
1220X610X50 | 1350 | 14.04 | 850 | ||
320X320X69 | 250 | 2.89 | 180 | ||
484X484X69 | 600 | 6.55 | 400 | ||
610X610X69 | 1000 | 10.37 | 620 | ||
915X610X69 | 1500 | 15.39 | 920 | ||
1170X570X69 | 1800 | 18.28 | 1100 | ||
1220X610X69 | 2000 | 20.41 | 1230 | ||
484X484X96 | 1000 | 10.24 | 620 | ||
610X610X96 | 1500 | 16.2 | 980 | ||
915X610X96 | 2300 | 24.01 | 1450 | ||
1170X570X96 | 2800 | 28.56 | 1720 | ||
1220X610X96 | 3100 | 31.89 | 1920 |
Application:
1: Optical electronics, biological pharmaceuticals, medical laboratories, food and beverages, daily chemical semiconductors, precision instruments and other industries
Pre filtration of central ventilation and air conditioning systems in ordinary industrial plants or cleanrooms
2: Ventilation and air conditioning systems for large civil buildings, such as office buildings,
3: Conference rooms, hospitals, shopping malls, gymnasiums, airports, etc.
