SUS304/SUS316 Cleanroom Static Pass Through Chamber

Company Advantages
1. Each step of HAOAIRTECH cleanroom equipment production meets the international production specification.
2. After rigorous testing and testing, the product is qualified for high performance and quality.
3. Guangzhou HaoAir Purification Technology Co.,Ltd.'s sales team work closely with customers, and satisfy their orders in time with correct quality.
4. Apart from clean room equipment, we also pay attention to cleanroom supplies to ensure the quality.

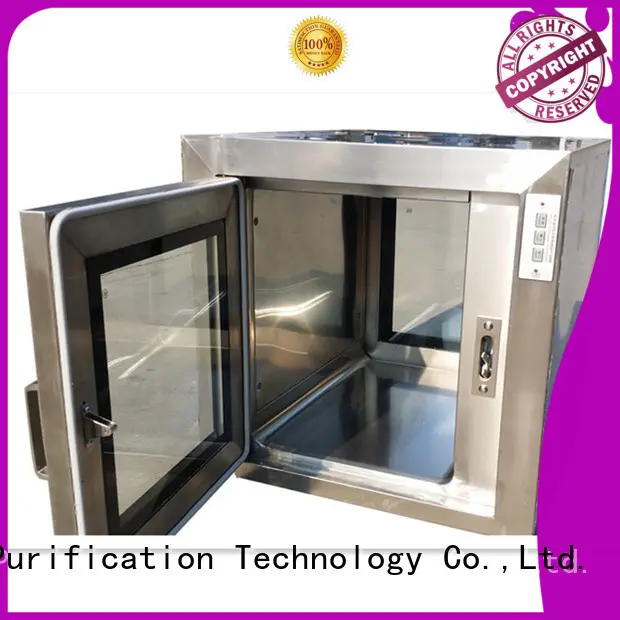

SUS304/SUS316 Cleanroom Static Pass Through Chamber

Static Pass Through Introduction:

The pass box is a device to keep the two areas at different grade from cross contaminants from one space to another during product or tool transfer. This is a safe and effective solution since they can keep the materials from contamination within a controlled environment. It can also be used to protect the materials from external contamination.

Static Pass Through Features :

1.Allows contamination-free transfer of materials in and out of the cleanroom.

2.Eliminates unnecessary personnel garbing and entry.

3.Ideal for general cleanroom use - select CleanSeam, BioSafe or Smart models for use with biological samples.

4.Stainless steel doors and hinges eliminate corrosion and extend service life.

5.Fool-proof automatic interlock mechanism prevents cross-contamination, is reliable and maintenance-free.

6.Material options accommodate many application requirements, from chemical resistance to static control.

7.Accessories include latch locks, sloping CleanTop and removable shelves.

8.Easy to install.

The Static Pass Box is approval by CE and RoHS certificate.

Customer’s design is available.

Clean Room Static Pass Box Specification:

Clean Room Static Pass Box HA-SPB Series
Model	HA-SPB500	HA-SPB600	HA-SPB700
Outer Size(mm) (WXDXH)	700x570x590	800x670x690	900x770x790
Inner Size(mm)(WXDXH)	500x500x500	600x600x600	700x700x700
Construction	1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting. 2. External is steel with power coated, internal is SUS304. 3. External is steel with power coated, internal is SUS201. 4. External is steel with power coated, internal is SUS316.
Material Thickness	T=1.0/1.2/1.5mm
Window	Double layer vacuum glass
Interlock	Mechanical or electric interlocking.
Four Corner	Bottom is inner arc, preventing dust accumulation.
Accessories	1. Interphone 2. UV light 3. Roller
Power supply	220V/50Hz or 60Hz

Different Type Pass Boxes For Review:

Cleanroom Static Pass Box Application：
