    Market Environment

    Modern high-end manufacturing industries basically need to rely on the purification workshop as an environmental support.
    Although the scale varies, it is a basic requirement to maintain the cleanliness of the workshop.
    At present, in order to keep the floor clean, most of them use sticky mats, shoe covers, and shoe membranes. (Advantages: investment is small, the disadvantages are: short maintenance time, high waste, no environmental protection, difficult monitoring, time-consuming and laborious).
    The sole cleaning machine produced by our company is an intelligent high-end ground cleaning product specially designed to meet the needs of families, clean rooms, office buildings, laboratories, hotels, hotels, large supermarkets, hospitals, etc.
    Compared with other similar products, this product has the advantages of not occupying the place, intelligent operation, energy saving, no dead angle cleaning, fast cleaning speed, and cleaning the sole dust invisible during normal walking.
    At the same time, the product has self-cleaning function and no maintenance for a long time.

    Product Description

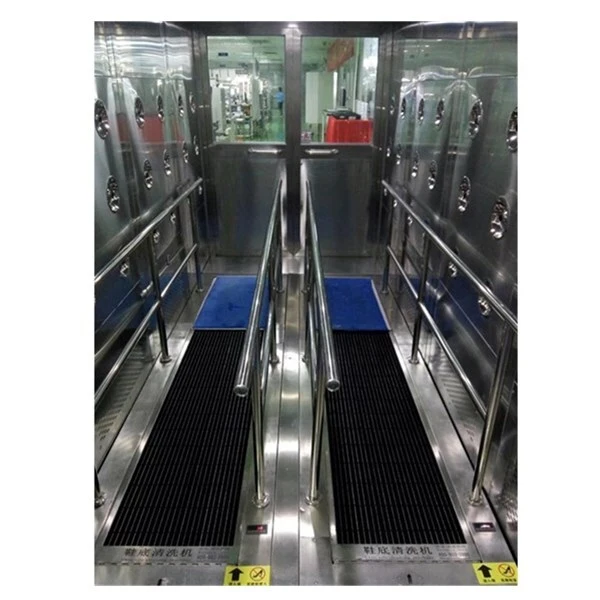

    The sole cleaning machine produced by Haoair purification Technology Co., Ltd. is made of stainless steel 304. The appearance is beautiful and the color is reasonable and durable. Air shower room combined with sole cleaning machine to improve purification efficiency.
    Received the praise of users.

    Customizable Environmentally friendly Sole Cleaning Machine in Air Shower Room 3

    Cleaning Method

    The sole cleaning machine is composed of two areas: a washing area and a drying area.
    During the walking process, the cleaning machine performs the cleaning water dissolving, rubbing and cleaning the dust of the sole in the non-stop operation, and finally achieves the effect of completely removing the dust of the sole.
    The suction area is made of special dry cotton, which can absorb the residual moisture in the sole within 1.0 seconds. After completing this series of work, the staff can enter the workshop smoothly.
    The whole process could be end about 15 seconds.
    Water change mode:
    (1) Semi-automatic equipment requires manual water exchange and sewage discharge
    (2) The automatic sole cleaning machine automatically starts the sewage high-pressure water pump after washing for 20 minutes or longer, and the internal washing sewage of the machine is connected to the drain pipe to discharge the sewage, and then automatically injects clean water to realize the automatic water changing function.
    Discharged sewage method: the cleaned dust and water together form sewage, and automatically enter the sewage tank through the surface diversion trough, and discharge into the connected sewage pipeline under the natural water level pressure difference.
    When all the personnel enter the workshop through the equipment, the equipment will stop working in time.
    Maintenance method: daily maintenance, clean the water storage basin 2-3 days in normal use to avoid garbage blockage of the drain outlet. There will be a small amount of residual dust on the surface of the equipment, which can be washed with a small amount of water.
    When the equipment is used for 4 months, use a water-absorbing vacuum cleaner to clean the sewage tank to prevent blockage.

    Specification:

    Customer size is available.


    MODEL

    HA-ASCM085

    HA-ASCM13

    HA-ASCM18

    HA-ASCM28

    HA-ASCM38

    External size

    850X760X140

    1338X760X140

    1838X760X140

    2838X760X140

    3838X760X140

    (mm)

    (W*D*H)

    Clean area

    450x530

    615X530

    1115X530

    1680X530

    2070X530

    (mm)

    Dry area

    400x520

    400x520

    400x520

    819x500

    146x532

    Capacity of water tank

    10L

    15L

    20L

    31L

    48L

    Motor power

    100W

    140W

    180W

    200W

    250W

    Water inlet temperature

    0-40C

    Switching mode

    Infrared induction

    Voltage

    220V /110V

    Material

    Stainless steel 304 (t=1.0/1.2mm)

    Air shower size

    1m

    1.5m

    2m

    3m

    4m

    Capacity person

    < 50 person

    <150 person

    <200 person

    <500 person

    <1000 person

    Weight

    45kgs

    50kgs

    75kgs

    115kgs

    180kgs

    Application:

    Customizable Environmentally friendly Sole Cleaning Machine in Air Shower Room 4
