We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

Stainless Steel 304 Laboratory Laminar Flow Cabinet With Vertical Air Flow 1
Stainless Steel 304 Laboratory Laminar Flow Cabinet With Vertical Air Flow 1

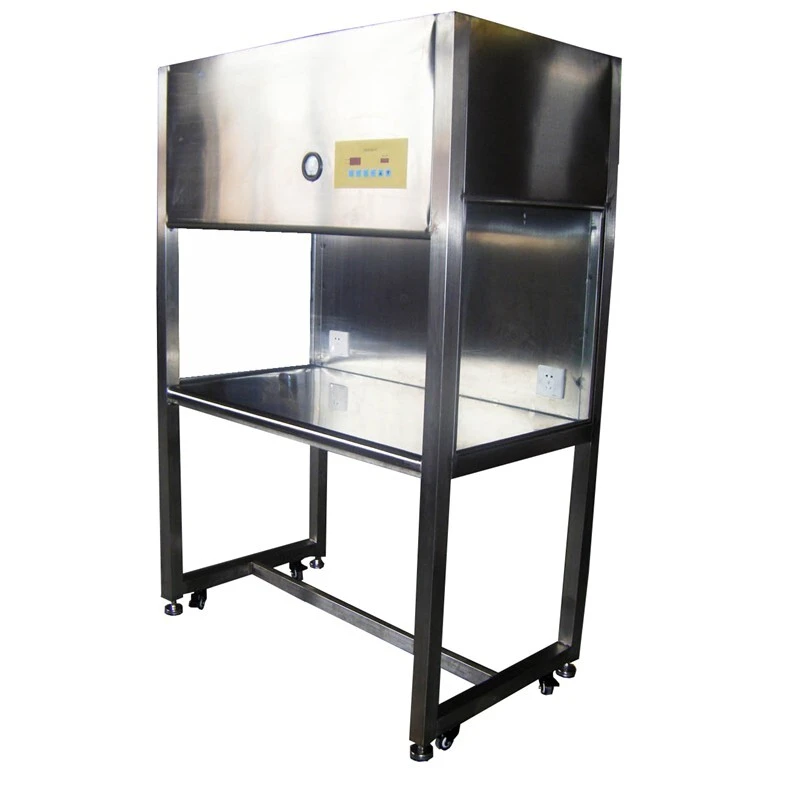

Stainless Steel 304 Laboratory Laminar Flow Cabinet With Vertical Air Flow

    oops...!

    no product data.

    Go to homepage

    Product Features

    Vertical air flow cabinet from top to bottom .

    High cleanliness,

    Low noise and movability

    It can be connected into assembly line

    working life is as long as 30 thousand hours or more.

    maintenance-free , small vibration,

    stepless speed regulation



    Introduction:

     laminar flow cabinet provide an aseptic space to work with a product or specimen

     without contaminating it with particulates such as microorganisms.

     Laminar flow cabinet provide no protection for

     the user or the environment as airflow is directed out of the cabinet.

      If chemically hazardous or infectious materials are

     going to be used in the laminar flow cabinet, a biological safety cabinet is required.

      A vertical laminar flow cabibnet  draws air from under the hood, filters it with a high-efficiency

     particulate air (HEPA/ULPA) filter, and then forces the air down across the workspace and out the hood at

     the user.

     the vertical laminar flow cabinet is useful for parts assembly, to house processing equipment,

    or to pour agar plates, for example. The workspace of a horizontal or vertrical laminar flow clean bench is

     bathed in a HEPA-filtered horizontal laminar airflow, and is often used for clinical or pharmaceutical

     applications, or whenever a sterile, particulate-free environment is needed.


    Application:

    It widely used in biological laboratory, medical, health, biopharmaceuticals, optoelectronic industry, microelectronics,

     hard disk manufacturing and other fields which need local purification.

    It has a good effect on improving technological conditions, protecting the health of operators, improving product quality and product rate.





    Characteristic

    1: All stainless steel welded construction

      2: 16 gauge stainless steel work deck is 36 from the floor and reinforced to support 300+ pounds

       3: Frame is 1 ½” square stainless steel tubing with legs that terminate with heavy-duty, cleanroom-grade locking casters

      4: Side panels are stainless steel framed ¼” acrylic

      5:High capacity motor/blower system with speed control to extend the life of the HEPA filter

      6: Cleanroom-compatible pre-filter increases the life of the front loading HEPA filter while reducing particulates inside the cleanroom

      7: Filter screen panel is removable for easy cleaning

      8: Front mounted, external fluorescent lighting

      9:Separate lighted power ON/OFF indicator switches for blower and lighting

      10: Electrical is  220/50-60 Hz


     Products Parameter



    MODEL

     HA-VCB-1

    HA-VCB-2

    HA-VCB-3

    External size (mm)

    (WXDXH)

    1000x700x1800

    1200X700X1800

    1500X700X1800

    Work   zone (mm)

    (WXDXH)

    900x650x600

    1100x650x600

    1400x650x600

    Purification   rank

                    FS209E 100Rank

    Rating   airflow(m3/h)

         950m3/h

    1100m3/h

    1400m3/h

    Filtration   efficiency

    More than 99.99%@0.3um  H13-H14

    Average wind speed

                      0.3-0.6m/s Adjustable

      Intensity of illumination

    >300lx

    Fluorescent lamp

    20Wx1

    30WX1

    40WX1

    Material

    (Option)

    1Entirety Sus304/201

    2External is steel with power coated, Internal is SUS304

    3:   External is steel with power coated. Internal is SUS201

    Control board

    1:   Control the air speed up/down

    2:   Power off /on

    3:   Working time display

    4:   Working area light on/off

    5:   Alarm indicator

    Power

         280W

    405W

    490W

      Noise

                           <65dB

    Power supply

    220V-240V AC 50HZ

    Packing size

    1160x980x1780mm

    1400x1020x1780mm

    1700x1100x1780mm



    Stainless Steel 304 Laboratory Laminar Flow Cabinet With Vertical Air Flow 2
