We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

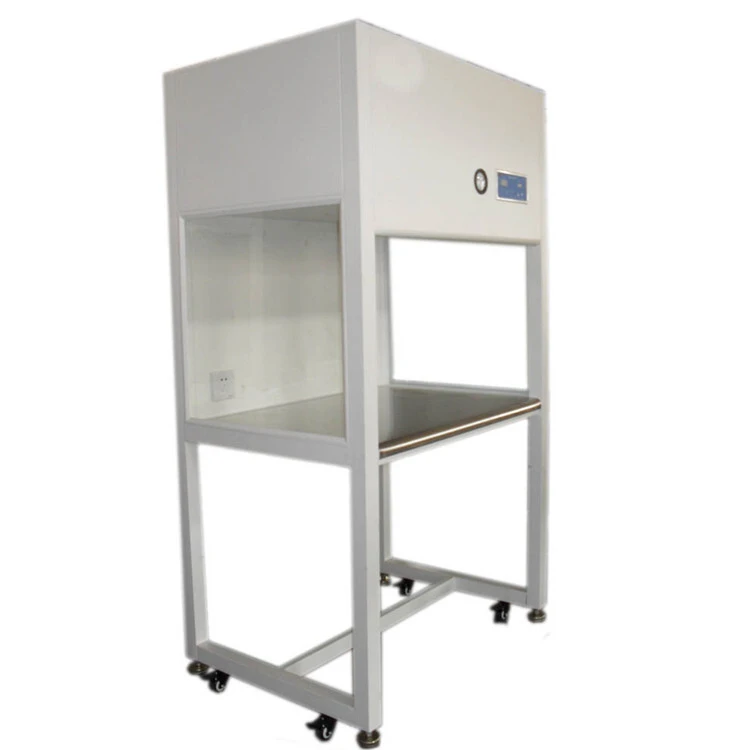

ISO5 Class 100 Cleanroom Clean Benches with Hepa filtred 1
ISO5 Class 100 Cleanroom Clean Benches with Hepa filtred 1

ISO5 Class 100 Cleanroom Clean Benches with Hepa filtred

    oops...!

    no product data.

    Go to homepage

    Product Features

     An ISO Class 5 environment utilizing an aerosol challenged HEPA filter.

      Exclusive airflow design with an all stainless steel interior construction.

      Fluorescent lighting fixture providing 100 foot candles at the work surface.

    Shielded ultraviolet lamp enhances sterilization of the work surface when the

    cabinet is not in use.

    Perforated, anodized aluminum diffuser screen protects the HEPA filter and

    maintains a uniform airflow velocity within the work area.

    Covered duplex electrical output .

      Color-keyed airflow meters.

    custom sizes with optional base support stands.





    Introduction:

    A self-contained clean work station with unique unidirectional airflow pattern

    providing the non-aspirating action of vertical flow while retaining the positive

    work protection of horizontal flow.

    the laminar flow Clean benches is a completely self-contained, positive

    pressure, unidirectional airflow clean bench that provides an ISO Class 5* (Class

    100) environment within its work area. The Haoairtech has a modular design with a unique

    airflow pattern that provides the non-aspirating action of vertical flow, while retaining

    the positive work protection of horizontal flow.



    Products Parameter

    MODEL

     HA-VCB-1

    HA-VCB-2

    HA-VCB-3

    External size (mm)

    (WXDXH)

    1000x700x1800

    1200X700X1800

    1500X700X1800

    Work   zone (mm)

    (WXDXH)

    900x650x600

    1100x650x600

    1400x650x600

    Purification   rank

                    FS209E 100Rank

    Rating   airflow(m3/h)

         950m3/h

    1100m3/h

    1400m3/h

    Filtration   efficiency

    More than 99.99%@0.3um  H13-H14

    Average wind speed

                      0.3-0.6m/s Adjustable

      Intensity of illumination

    >300lx

    Fluorescent lamp

    20Wx1

    30WX1

    40WX1

    Material

    (Option)

    1Entirety Sus304/201

    2External is steel with power coated, Internal is SUS304

    3:   External is steel with power coated. Internal is SUS201

    Control board

    1:   Control the air speed up/down

    2:   Power off /on

    3:   Working time display

    4:   Working area light on/off

    5:   Alarm indicator

    Power

         280W

    405W

    490W

      Noise

                           <65dB

    Power supply

    220V-240V AC 50HZ

    Packing size

    1160x980x1780mm

    1400x1020x1780mm

    1700x1100x1780mm

     ISO5 Class 100 Cleanroom Clean Benches with Hepa filtred 2



    Application:

    It widely used in Pharmaceutical Preparation., I.V. Admixtures. Hyperalimentation , Syringe

    Filling . Tissue Culture . Media Preparation . Critical Sample Preparation . Microscopy

    Analysisbiological optoelectronic industry, microelectronics, hard disk manufacturing and other fields which need local purification .
