We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

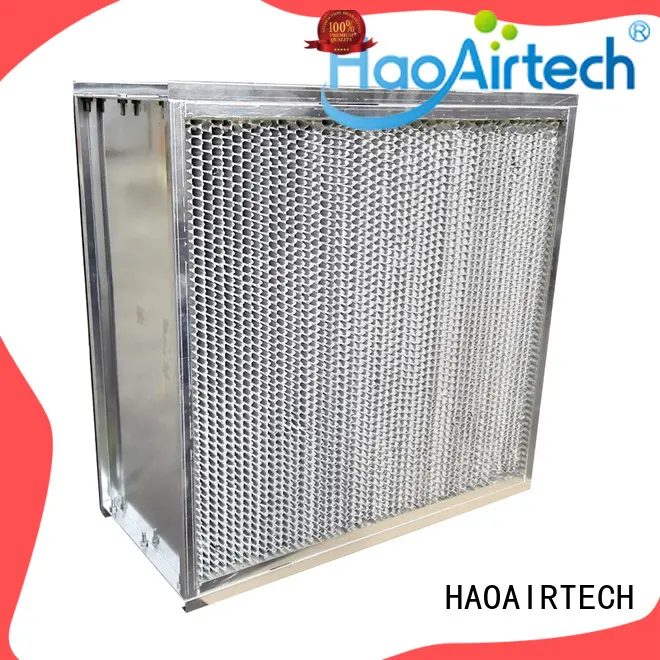

replaceable hepa air filter with dop port for dust colletor hospital
Brand:
HAOAIRTECH
Model number:
HA-HEPA-A Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Product Comparison
HaoAir's best hepa filters is manufactured in strict accordance with relevant national standards. Every detail matters in the production. Strict cost control promotes the production of high-quality and priced-low product. Such a product is up to customers' needs for a highly cost-effective product.Compared with other products in the same industry, HaoAir's best hepa filters has the following characteristics.
-
v s
Application Scope
best hepa filters can be applied to different industries, fields and scenes.With many years of practical experience, HaoAir is capable of providing comprehensive and efficient one-stop solutions.
1. All hepa air filter may be the same, but hepa filter replacements make us take the lead.
2. The product has good electromagnetic compatibility. It has the ability to work correctly when it is close together with other devices.
3. hepa air filter can be easily maintained.
4. We provide customized service for our hepa air filter .
Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation.
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Neoprene /EVA gasket prevent the air leaking in operation.
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
/ Products Parameter
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding (g) | Rate primary | Finally |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 | ||
610X915X120 | 1050 | 10.6 | 560 | ||
610X1220X120 | 1400 | 14.1 | 740 | ||
484X484X150 | 600 | 6 | 320 | ||
610X610X150 | 1000 | 9.7 | 510 | ||
610X915X150 | 1500 | 14.5 | 770 | ||
610X1220X150 | 2000 | 19.3 | 1020 | ||
484X484X220 | 1000 | 9.8 | 600 | ||
610X610X220 | 1600 | 15.8 | 920 | ||
610X915X220 | 2300 | 23.7 | 1340 | ||
610X1220X220 | 3000 | 31.6 | 1750 |
/ Primary Resistance & Face Velocity Diagram
/ Product Details
part.1
EVA Gasket for Heap air filter with flange
part.2
Outwardly Frame for heap air filter
part.3
Deep Pleats Media Compact
/ package
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. over the years has evolved and today offers a complete range of hepa air filter .
2. This hepa filter h14 not only promotes its capacity, but also saving hepa filter replacements .
3. Offering the highest quality of h12 hepa filter is always our pursuing goal. Please contact us! Guangzhou HaoAir Purification Technology Co.,Ltd. sincerely hold the tenet of hepa air filtration system in mind when conducting business. Please contact us!
