We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

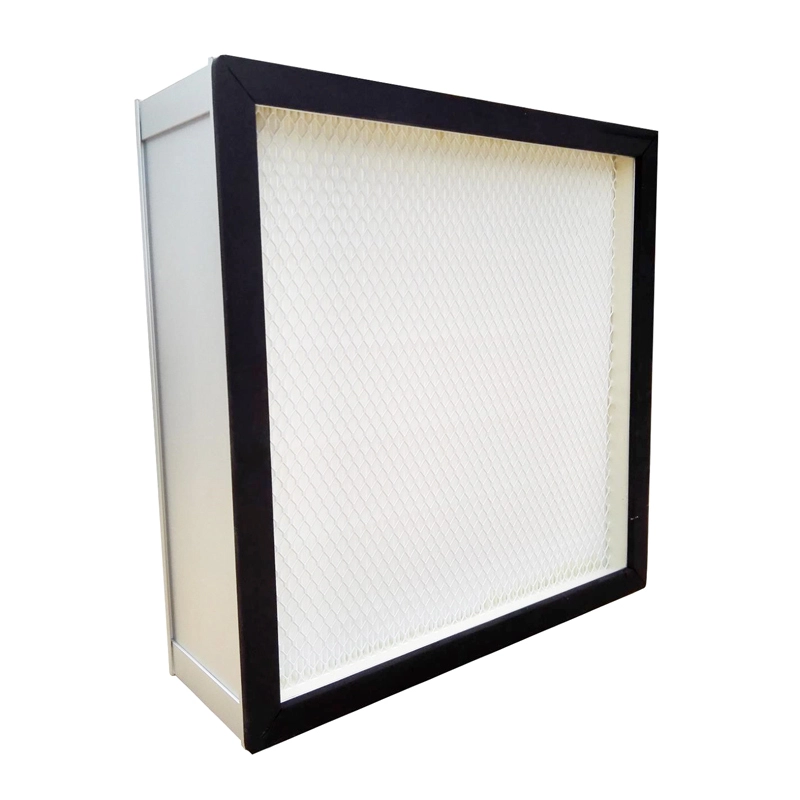

Mini-Pleats HEPA Air Filter 1
Mini-Pleats HEPA Air Filter 2
Mini-Pleats HEPA Air Filter 1
Mini-Pleats HEPA Air Filter 2

Mini-Pleats HEPA Air Filter

    oops...!

    no product data.

    Go to homepage



    Characteristics
    The media material is super glass fibre for 0.3um particulate.
    It is patent technology to ensure the V type passage in low resistance.
    Neoprene /EVA or PU gasket prevent the air leaking in operation.
    Extrude and anodized aluminum frame in 50mm, 69mm, 80mm, 90mm for choose.
    While color metal screen to protect the filtration media without any damage.
    Light weight and easy to install
    Adopting the laser to scan the filter one by one ( MPPS).
    100 % provide the test report for each mini-pleats HEPA air filter
    Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
    Applied to the terminal filtration of the air-condition filtration system
    Mini-Pleats HEPA Air Filter 3



    / Operating Conditions


     Media

    Super    glass fibre

     Frame

    AL/GL/SUS201/304    frame

    Gasket

    Neoprene    /EVA or PU

    Media spacer

    Hot melt

    Frame thickness (mm)

    46/50/69/80/90/96/120

    Screen

    Metal    screen

    Efficiency

    >99.999%@0.3um

    Max Temperature

     70℃

    Max Humidity

    100%



    / Products Parameter


    Dimension(mm)
         (W*H*D)

      Rate Air Flow
         (m3/h)

    Media Area
         (m2)

    Dust Holding
            (g)

    Rate primary
    Resistance
    (Pa)

    Finally
    Resistance
         (Pa)

    320X320X50

    200

    1.99

    120









    H13 :<200Pa
    H14 :<220pa









    400-600pa

    484X484X50

    450

    4.51

    270

    610X610X50

    700

    7.13

    430

    915X610X50

    1000

    10.58

    650

    1170X570X50

    1200

    12.57

    750

    1220X610X50

    1350

    14.04

    850

    320X320X69

    250

    2.89

    180

    484X484X69

    600

    6.55

    400

    610X610X69

    1000

    10.37

    620

    915X610X69

    1500

    15.39

    920

    1170X570X69

    1800

    18.28

    1100

    1220X610X69

    2000

    20.41

    1230

    484X484X96

    1000

    10.24

    620

    610X610X96

    1500

    16.2

    980

    915X610X96

    2300

    24.01

    1450

    1170X570X96

    2800

    28.56

    1720

    1220X610X96

    3100

    31.89

    1920



    / Primary Resistance & Face Velocity Diagram


    Mini-Pleats HEPA Air Filter 4



    / Product Details



    part.1
    Hepa Air Filter With EVA Gasket and PU gasket
    Mini-Pleats HEPA Air Filter 5

    part.2
    PU Foma Gasket
    Mini-Pleats HEPA Air Filter 6

    part.3
    Mini-Pleats Media Compact
    Mini-Pleats HEPA Air Filter 7

    part.4
    Air Filter Dust Detection Test
    Mini-Pleats HEPA Air Filter 8


    Application

    Mini-pleats HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical , bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field, fan filter unit, HEPA unit , air shower, dynamic pass box, dispensing booth ,softwall cleanroom, laminar flow booth and so on .



    / Our Service


    Mini-Pleats HEPA Air Filter 9

    Our Service

    1:  100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of    HEPA air filter.
    2:  2 pcs in one carton .each air filter warp by PE Bag .
    3:  Small order is polywood packing so that we can send out by sea in LCL.
    4:  If order amount more than 20000USD, We accept the 100% LC at sight against with     document.
    5:  Free sample possible for you confirmation of quality .



    / package


    Mini-Pleats HEPA Air Filter 10
    Mini-Pleats HEPA Air Filter 11
    Mini-Pleats HEPA Air Filter 12
