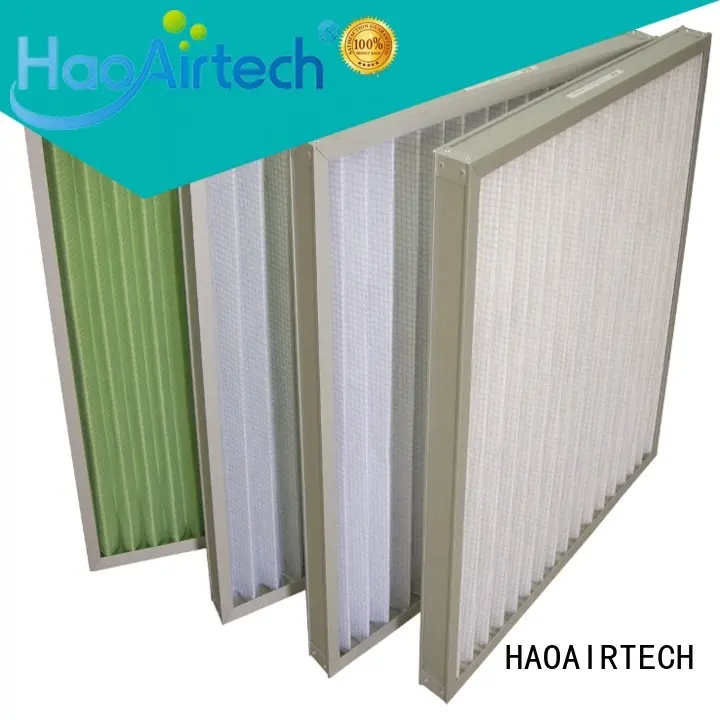

Quality HAOAIRTECH Brand frame Pleated Air Filter

Company Advantages
1. It is certified by SGS corporation and reaches RoHS standard. Owing to its various quality attributes, provided z line filter is highly appreciated by HAOAIRTECH clients.
2. Guangzhou HaoAir Purification Technology Co.,Ltd.'s customer service always works on a professional level. Made of stainless steel SUS304, it is beautiful and durable
3. With its performance being pleated furnace filters, Pleated Air Filter is highly recommended by our loyal costumers. The product creates a clean environment to reduce allergy and asthma symptoms
4. The product ensures the smooth refreshing breath of users. Comparing to other products, our pleated filter,merv 7 pleated air filters has more evident advantages in function.
5. The product features an energy-saving performance, HAOAIRTECH Is One Of The Largest Pleated Air Filter Manufacturers In China.



Introduce:

     Pleats filter is suitable for primary filtration of air conditioning system. and Medium efficiency air filtration.  It is mainly used to filter dust particles above 5 micron. Outer frame materials include cardboard frame, Aluminium frame and galvanized iron frame.

   Filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal mesh, Protective mesh includes double-sided plastic-sprayed wire mesh and double-sided galvanized wire mesh.

Media	Non-Woven fabric and synthetic fiber
Frame	AL/GL/SUS201/304  frame
Gasket	Neoprene / EVA or PU
Frame size	24/48/96mm
Screen	Metal   screen in one side or both side
Efficiency	G1-G4 ,F5-F8
Max Temperature	80℃
Max Humidity	100%

Dimension	Rate air flow	Media area	Dust Holding(g)	Initial Resistance (pa)	Finally Resistance (pa)	Efficiency
592x592x46	2600	0.97	110	<25	100-200	G1
			130	<30	100-200	G2
			160	<40	100-200	G3
			200	<45	150-200	G4
592x490x46	2200	0.81	98	<25	100-200	G1
			110	<30	100-200	G2
			130	<40	100-200	G3
			160	<45	150-200	G4
592x287x46	1300	0.48	50	<25	100-200	G1
			60	<30	100-200	G2
			80	<40	100-200	G3
			100	<45	150-200	G4

Customer size is available

mainly used for: central air conditioning and centralized ventilation system pre-filtration, large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device.

Company Features
1. HAOAIRTECH specializes in manufacturing Pleated Air Filter with high quality and reasonable price.
2. Adversity Successfully Overcome Is The Highest Glory. HAOAIRTECH Offers A Wide Range Of pleated filter, z line filter, pleated furnace filters At Reasonable Price To Customers From All Over The World. Please Contact Us!
3. HAOAIRTECH focuses on continuous technological innovation to improve products and services. Welcome to visit our factory!
